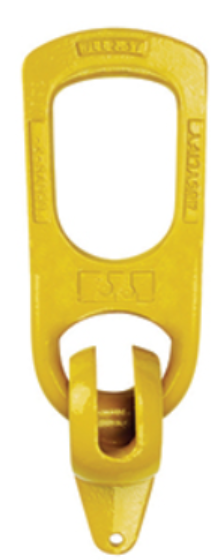

Concrete Lifting Clutch
- Capacity: 1.3t to 32.0t
Safe and versatile, our concrete lifting clutches are a durable lifting tool for lifting pre-cast concrete products such as construction panels, pipes and columns. With its adjustable handle and detachable base, this lifter is easy to use whilst ensuring operator safety with an automatic safety brake and overload protection.
- Australian Standard: AS 3850
Features
Industries
Documents
Features
- Overload protection
- Automatic safety brake
- Complete with test certificate
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Manufacturing
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | NET WEIGHT |
---|---|---|
AL141001 | 1.3t | 1.0kg |
AL141002 | 2.5t | 1.5kg |
AL141005 | 5.0t | 3.3kg |
AL141010 | 10.0t | 10.0kg |
AL141020 | 20.0t | 20.37kg |
AL141030 | 32.0t | 47.0kg |
Dimensions
PRODUCT CODE | C | D | E | F | H | M | L |
---|---|---|---|---|---|---|---|
AL141001 | 80.4mm | 70.5mm | 45.0mm | 73mm | 157.0mm | 11.5mm | 181mm |
AL141002 | 99.0mm | 85.0mm | 57.0mm | 88mm | 190.0mm | 16.0mm | 220mm |
AL141005 | 133.0mm | 88.0mm | 69.0mm | 110mm | 233.0mm | 22.0mm | 271mm |
AL141010 | 176.0mm | 116.0mm | 83.0mm | 161mm | 336.5mm | 30.0mm | 386mm |
AL141020 | 228.0mm | 133.5mm | 107.5mm | 182mm | 437.0mm | 42.0mm | 497mm |
AL141030 | 325.0mm | 188.0mm | 160.0mm | 272mm | 555.0mm | 52.0mm | 760mm |
