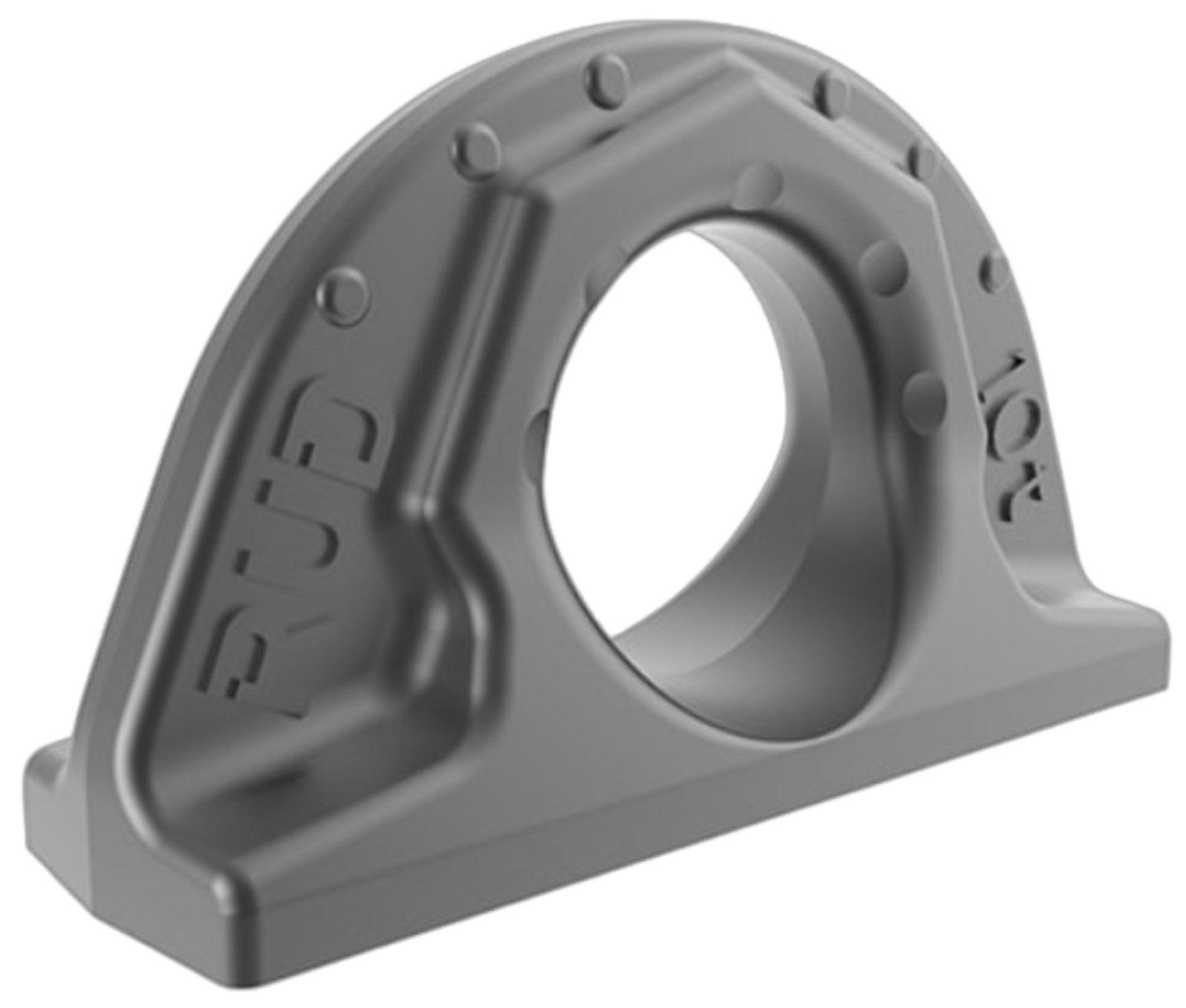

W-ABA Lifting Lug
W-ABA Lifting Lug
- Brand: RUD
- Capacity: 0.8t to 31.5t
With a safety rating of 4:1 and loadable from any direction, the W-ABA Lifting Lug for welding has undergone thorough testing and is suitable for use in the most demanding environments with enduring temperatures ranging from -40˚C to 200˚C, with a maximum limit of 400˚C. With a tempered base body, the lug has patented wear indicators on each point for easy determination for withdrawal of service, ensuring operational safety.
- Australian Standard: AS 3777
Features
Industries
Documents
Features
- Wear indicators
- Safety factor of 4:1
- Tempered base body
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | NET WEIGHT |
|---|---|---|
| RUD7907698 | 0.8t | 0.20kg |
| RUD7900352 | 1.6t | 0.45kg |
| RUD7900353 | 3.2t | 1.15kg |
| RUD7900354 | 5.0t | 2.26kg |
| RUD7900355 | 10.0t | 5.37kg |
| RUD7902174 | 20.0t | 10.72kg |
| RUD7902175 | 31.5t | 18.33kg |

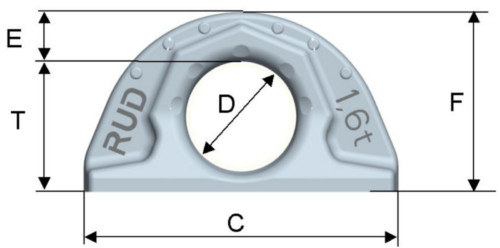

Dimensions
| PRODUCT CODE | A | B | T | C | D | E | F |
|---|---|---|---|---|---|---|---|
| RUD7907698 | 22mm | 12mm | 38mm | 70mm | 32mm | 12mm | 50mm |
| RUD7900352 | 30mm | 16mm | 42mm | 100mm | 35mm | 16mm | 57mm |
| RUD7900353 | 41mm | 23mm | 59mm | 137mm | 50mm | 21mm | 80mm |
| RUD7900354 | 51mm | 27mm | 72mm | 172mm | 60mm | 28mm | 99mm |
| RUD7900355 | 70mm | 38mm | 95mm | 228mm | 80mm | 35mm | 130mm |
| RUD7902174 | 90mm | 52mm | 135mm | 272mm | 115mm | 40mm | 175mm |
| RUD7902175 | 108mm | 64mm | 154mm | 320mm | 130mm | 50mm | 204mm |
