Eyebolt Metric Coarse Thread VRS-F Starpoint
Eyebolt Metric Coarse Thread VRS-F Starpoint
- Brand: RUD
- Capacity: 0.1t to 12.0t

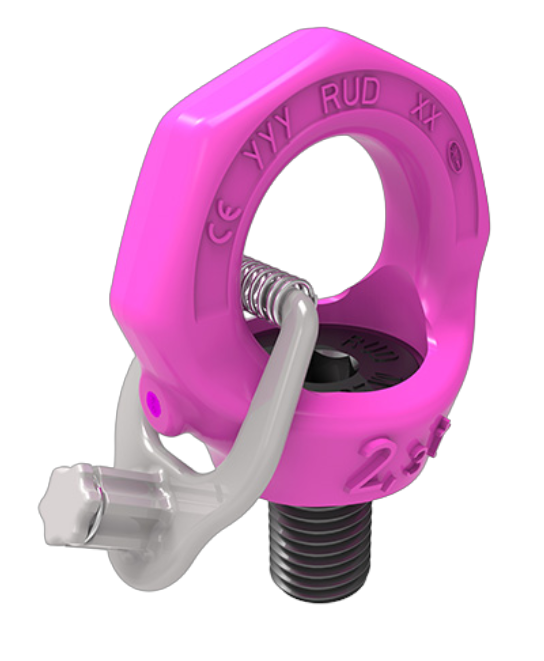

With a safety factor of 4:1, the VRS-F Starpoint eye bolt with metric thread, offers simple installation and ease of alignment. With its 360° adjustability in force direction, higher Working Load Limit (WLL) compared to a DIN 580 eye bolt, and a unique key design for effortless assembly and disassembly, it is an ideal solution for both axial and angular loading applications.
- Australian Standard: AS2317
Features
Industries
Documents
Features
- Variable bolt head
- Safety factor of 4:1
- Clear markings on the bolt head
- Supplied with star key as standard
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | THREAD SIZE | NET WEIGHT |
|---|---|---|---|
| RD7900906 | 0.1t | M6 | 0.07kg |
| RD8500911 | 0.3t | M8 | 0.12kg |
| RD7104029 | 0.4t | M10 | 0.12kg |
| RD7101313 | 0.75t | M12 | 0.21kg |
| RD7999330 | 0.75t | M14 | 0.22kg |
| RD7101314 | 1.5t | M16 | 0.36kg |
| RD7903387 | 1.5t | M18 | 0.39kg |
| RD7101315 | 2.3t | M20 | 0.60kg |
| RD7992197 | 2.3t | M22 | 0.67kg |
| RD7101316 | 3.2t | M24 | 1.05kg |
| RD7994138 | 3.2t | M27 | 1.18kg |
| RD7101317 | 4.5t | M30 | 2.08kg |
| RD7993439 | 4.5t | M33 | 2.20kg |
| RD7984201 | 7.0t | M36 | 3.49kg |
| RD7984202 | 9.0t | M42 | 5.40kg |
| RD7984203 | 12.0t | M48 | 8.17kg |

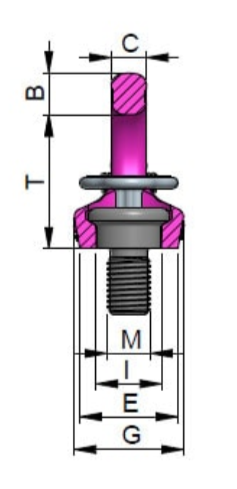

Dimensions
| PRODUCT CODE | B | T | C | D | E | G | I | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RD7900906 | 9mm | 28mm | 7mm | 20mm | 23mm | 28mm | 13mm | 37mm | 9mm | M6mm | 6mm |
| RD8500911 | 11mm | 35m | 9mm | 25mm | 25mm | 30mm | 16.3mm | 47mm | 12mm | M8mm | 6mm |
| RD7104029 | 11mm | 35mm | 9mm | 25mm | 25mm | 30mm | 16.3mm | 47mm | 15mm | M10mm | 6mm |
| RD7101313 | 13mm | 42mm | 10mm | 30mm | 30mm | 34mm | 19.8mm | 56mm | 18mm | M12mm | 8mm |
| RD7999330 | 13mm | 42mm | 10mm | 30mm | 30mm | 34mm | 19.8mm | 56mm | 18mm | M14mm | 8mm |
| RD7101314 | 15mm | 49mm | 13mm | 35mm | 36mm | 40mm | 23.5mm | 65mm | 24mm | M16mm | 10mm |
| RD7903387 | 15mm | 49mm | 13mm | 35mm | 36mm | 40mm | 23.5mm | 65mm | 24mm | M18mm | 10mm |
| RD7101315 | 17mm | 58mm | 16mm | 40mm | 41mm | 50mm | 29.3mm | 76mm | 30mm | M20mm | 12mm |
| RD7992197 | 17mm | 58mm | 16mm | 40mm | 41mm | 50mm | 29.3mm | 76mm | 30mm | M22mm | 12mm |
| RD7101316 | 20mm | 70mm | 19mm | 49mm | 51mm | 60mm | 35mm | 92mm | 36mm | M24mm | 14mm |
| RD7994138 | 20mm | 70mm | 19mm | 49mm | 51mm | 60mm | 35mm | 92mm | 36mm | M27mm | 14mm |
| RD7101317 | 26mm | 87mm | 24mm | 60mm | 66mm | 75mm | 44mm | 1144mm | 45mm | M30mm | 17mm |
| RD7993439 | 26mm | 87mm | 24mm | 60mm | 66mm | 75mm | 44mm | 114mm | 45mm | M33mm | 17mm |
| RD7984201 | 32mm | 103mm | 29mm | 72mm | 76mm | 97mm | 53mm | 135mm | 54mm | M36mm | 22mm |
| RD7984202 | 37mm | 121mm | 33mm | 84mm | 86mm | 111mm | 62mm | 158mm | 63mm | M42mm | 24mm |
| RD7984203 | 42mm | 138mm | 42mm | 94mm | 100m | 128mm | 70mm | 180mm | 72mm | M48mm | 27mm |
