Eyenut Metric Coarse Thread VRM Starpoint
Eyenut Metric Coarse Thread VRM Starpoint
- Brand: RUD
- Capacity: 0.1t to 4.5t

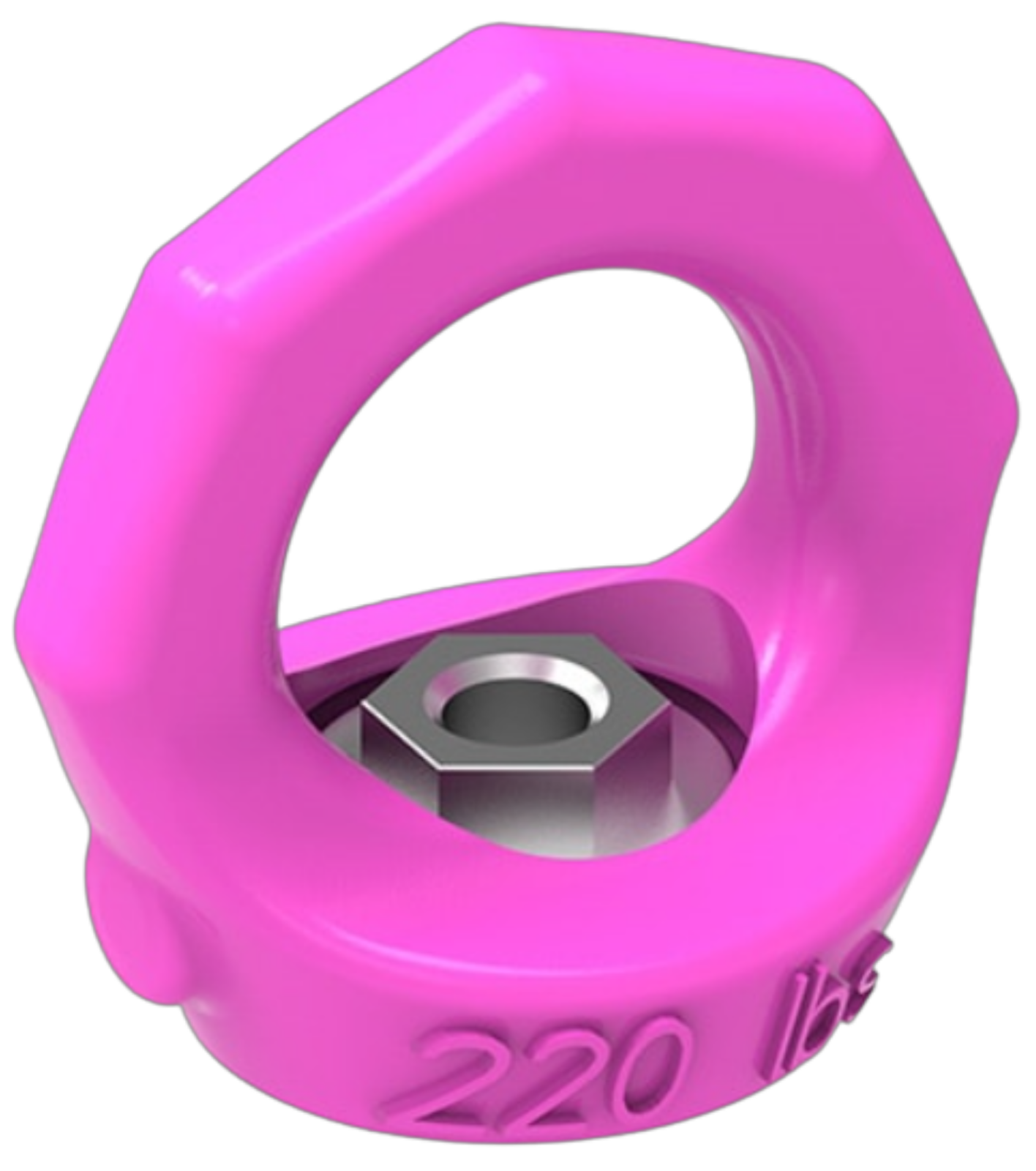

The VRM Starpoint eye nut with the metric thread has a safety rating of 4:1 and comes fully tested. The lifting point pivots a full 360˚ for easy adjustment in the load direction. With only one bolt connection, the lifting point is quick and simple to install, and can be hand tightened with an appropriate wrench for a singular lift.
- Australian Standard: AS2317
Features
Industries
Documents
Features
- Safety factor of 4:1
- Clear markings on eye nut
- Thread range of M6 to M30
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | THREAD SIZE | NET WEIGHT |
|---|---|---|---|
| RUD7900786 | 0.10t | M6 | 0.06kg |
| RUD7992989 | 0.30t | M8 | 0.11kg |
| RUD7990311 | 0.40t | M10 | 0.11kg |
| RUD7990312 | 0.75t | M12 | 0.18kg |
| RUD7990314 | 1.50t | M16 | 0.32kg |
| RUD7990315 | 2.30t | M20 | 0.48kg |
| RUD7990316 | 3.20t | M24 | 0.83kg |
| RUD7993008 | 4.50t | M30 | 1.32kg |
Dimensions
| PRODUCT CODE | T | B | C | D | E | G | H | I | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RUD7900786 | 28mm | 9mm | 7mm | 20mm | 23mm | 28mm | 17mm | 13mm | 37mm | 11mm | M6mm | 9mm |
| RUD7992989 | 35mm | 11mm | 9mm | 25mm | 25mm | 30mm | 21mm | 16mm | 47mm | 14mm | M8mm | 12mm |
| RUD7990311 | 35mm | 11mm | 9mm | 25mm | 25mm | 30mm | 21mm | 16mm | 47mm | 14mm | M10mm | 12mm |
| RUD7990312 | 42mm | 13mm | 10mm | 30mm | 30mm | 34mm | 25mm | 20mm | 56mm | 17mm | M12mm | 14mm |
| RUD7990314 | 49mm | 15mm | 13mm | 35mm | 36mm | 40mm | 29mm | 22mm | 65mm | 21mm | M16mm | 19mm |
| RUD7990315 | 58mm | 17mm | 16mm | 40mm | 41mm | 50mm | 35mm | 29mm | 76mm | 23mm | M20mm | 24mm |
| RUD7990316 | 70mm | 20mm | 19mm | 49mm | 51mm | 60mm | 41mm | 35mm | 92mm | 29mm | M24mm | 30mm |
| RUD7993008 | 87mm | 26mm | 24mm | 60mm | 66mm | 75mm | 51mm | 44mm | 114mm | 36mm | M30mm | 36mm |
