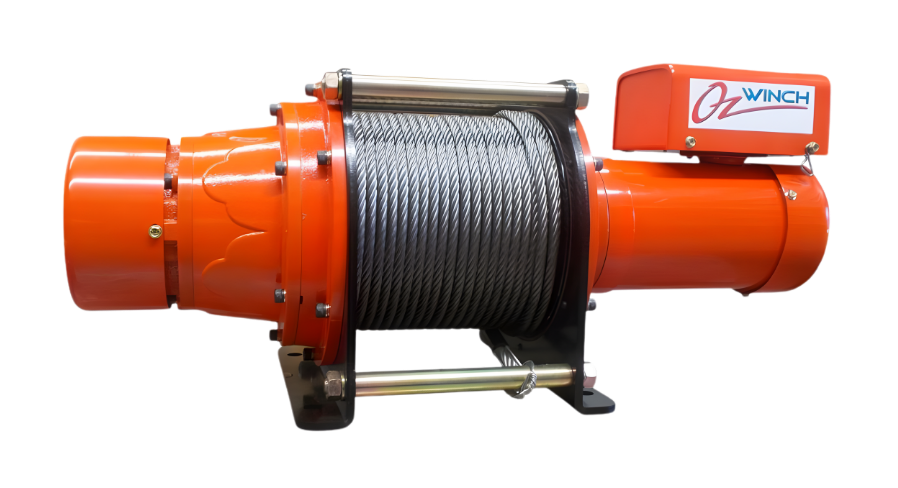

Electric Planetary Winch
- Brand: OzWinch
- Capacity: 0.7t to 2.0t
Engineered for reliability and performance, our Electric Planetary Winches are robust and versatile, making them ideal for a wide range of domestic and industrial applications. Featuring a planetary gear train, roller bearings, and a high-torque starter motor, our Electric Planetary Winches deliver efficient and consistent operation under load. A low-voltage hand control with a removable 10m lead and a fail-safe electromagnetic disc brake ensure precise and secure load handling during lifting or hauling. Available in single phase 240V or three phase 415V, with optional wireless remote control.
Features
Industries
Documents
Features
- Wire rope with safety hook
- Thermal overload protection
- Corrosion resistant baked enamel finish
- 240V single phase or 415V three phase AC motor
- Low voltage hand control with removable 10m lead
Industries
- Agriculture
- Civil
- Construction
- Domestic
- Engineering
- Industrial
- Infrastructure
- Manufacturing
- Marine
- Ports
- Waste Management
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | ROPE | VOLTAGE | AVG. SPEED | MOTOR | NET WEIGHT |
|---|---|---|---|---|---|---|
| WINOW-PU-1070-09G07 | 0.7t | 9mm x 70m | 1Ph 240V | 7.5m/mm | 1.3kW | 86.5kg |
| WINOW-PU-1120-10I05 | 1.2t | 12mm x 50m | 1Ph 240V | 8m/mm | 2kW | 130.7kg |
| WINOW-PU-1200-07J07 | 2.0t | 14mm x 70m | 1Ph 240V | 6m/mm | 2.5kW | 166.0kg |
| WINOW-PU-3200-07J07 | 2.0t | 14mm x 70m | 3Ph 415V | 6m/mm | 3kW | 166.0kg |
Dimensions
| PRODUCT CODE | A | B | C | D | E | F | Ø |
|---|---|---|---|---|---|---|---|
| WINOW-PU-1070-09G07 | 202mm | 292mm | 265mm | 783mm | 340mm | 101mm | 17mm |
| WINOW-PU-1120-10I05 | 260mm | 390mm | 243mm | 785mm | 415mm | 168mm | 22mm |
| WINOW-PU-1200-07J07 | 260mm | 390mm | 373mm | 915mm | 415mm | 168mm | 22mm |
| WINOW-PU-3200-07J07 | 260mm | 390mm | 373mm | 915mm | 415mm | 168mm | 22mm |
