Electric Planetary Winch
Electric Planetary Winch
- Brand: OzWinch
- Capacity: 0.2t to 0.5t
Engineered for reliability and performance, our 240V single phase Electric Planetary Winches are robust and versatile, making them ideal for a wide range of domestic and industrial applications. Featuring a planetary gear train, roller bearings, and a high-torque starter motor, our Electric Planetary Winches deliver efficient and consistent operation under load. A low-voltage hand control with a removable 10m lead and a fail-safe electromagnetic disc brake ensure precise and secure load handling during lifting or hauling. Options include Dyneema synthetic rope, wireless remote control and optional zinc plated pedestal stand.
Features
Industries
Documents
Features
- Wire rope, with safety hook
- Thermal overload protection
- 240V single phase AC motor
- Corrosion resistant baked enamel finish
- Low voltage hand control with removable 10m lead
Industries
- Agriculture
- Civil
- Construction
- Domestic
- Engineering
- Industrial
- Infrastructure
- Manufacturing
- Marine
- Ports
- Waste Management
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | ROPE | VOLTAGE | AVG. SPEED | MOTOR | NET WEIGHT |
|---|---|---|---|---|---|---|
| WINOW-JV-1020-13D03 | 0.20t | 6mm x 30m | 1Ph 240V | 11m/mm | 0.5kW | 31.2kg |
| WINOW-JV-1025-13D03 | 0.25t | 6mm x 30m | 1Ph 240V | 11m/mm | 0.55kW | 32.0kg |
| WINOW-JV-1030-13D03 | 0.30t | 6mm x 30m | 1Ph 240V | 11m/mm | 0.75kW | 35.5kg |
| WINOW-JC-1025-17D12 | 0.25t | 6mm x 120m | 1Ph 240V | 17m/mm | 1.6kW | 62.5kg |
| WINOW-JC-1030-16D05 | 0.30t | 6mm x 50m | 1Ph 240V | 13m/mm | 1.1kW | 38.6kg |
| WINOW-JC-1050-16F03 | 0.50t | 8mm x 30m | 1Ph 240V | 13m/mm | 1.6kW | 48.5kg |
| WINOW-JC-1050-21F05 | 0.50t | 8mm x 50m | 1Ph 240V | 17m/mm | 1.8kW | 58.7kg |

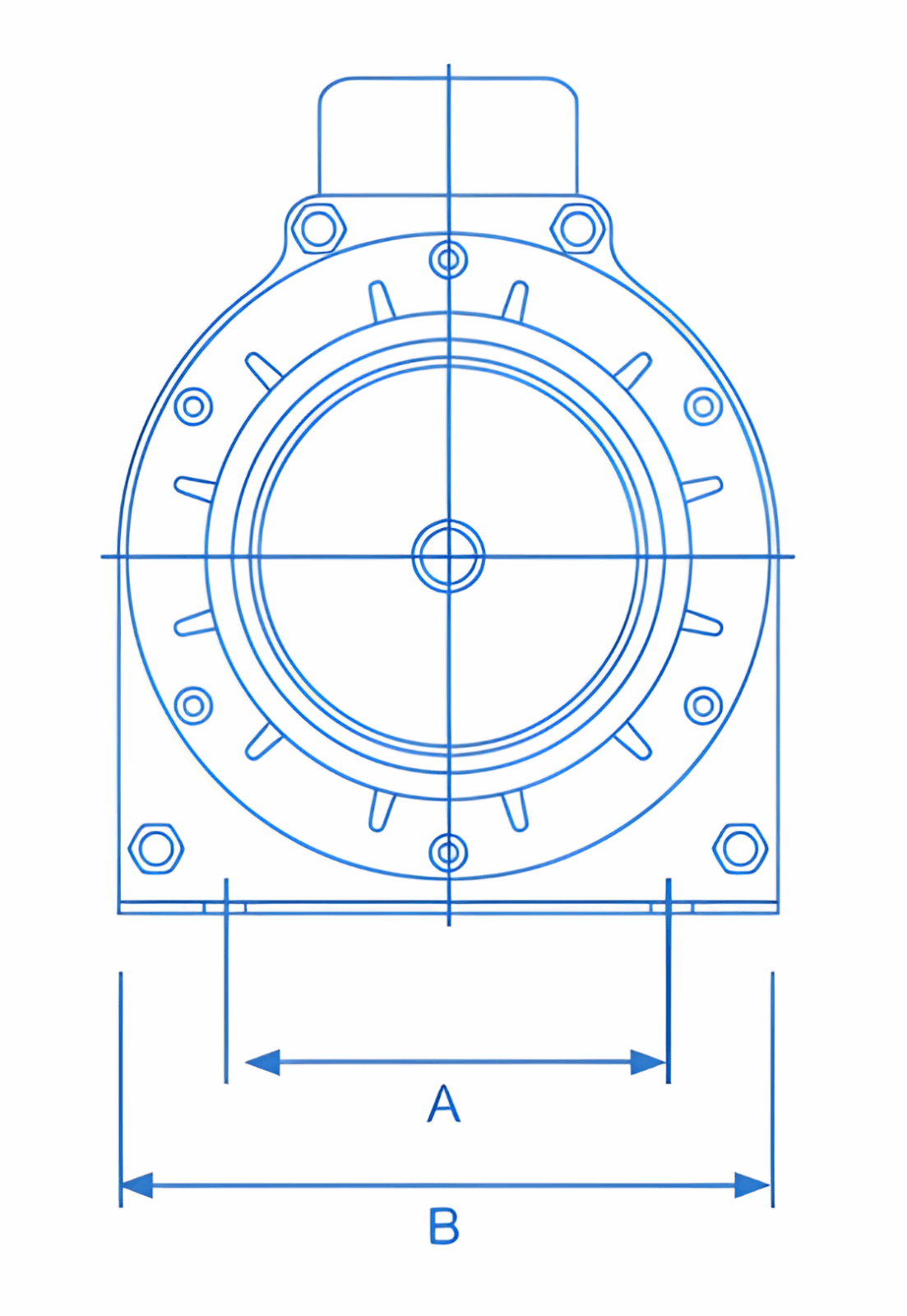

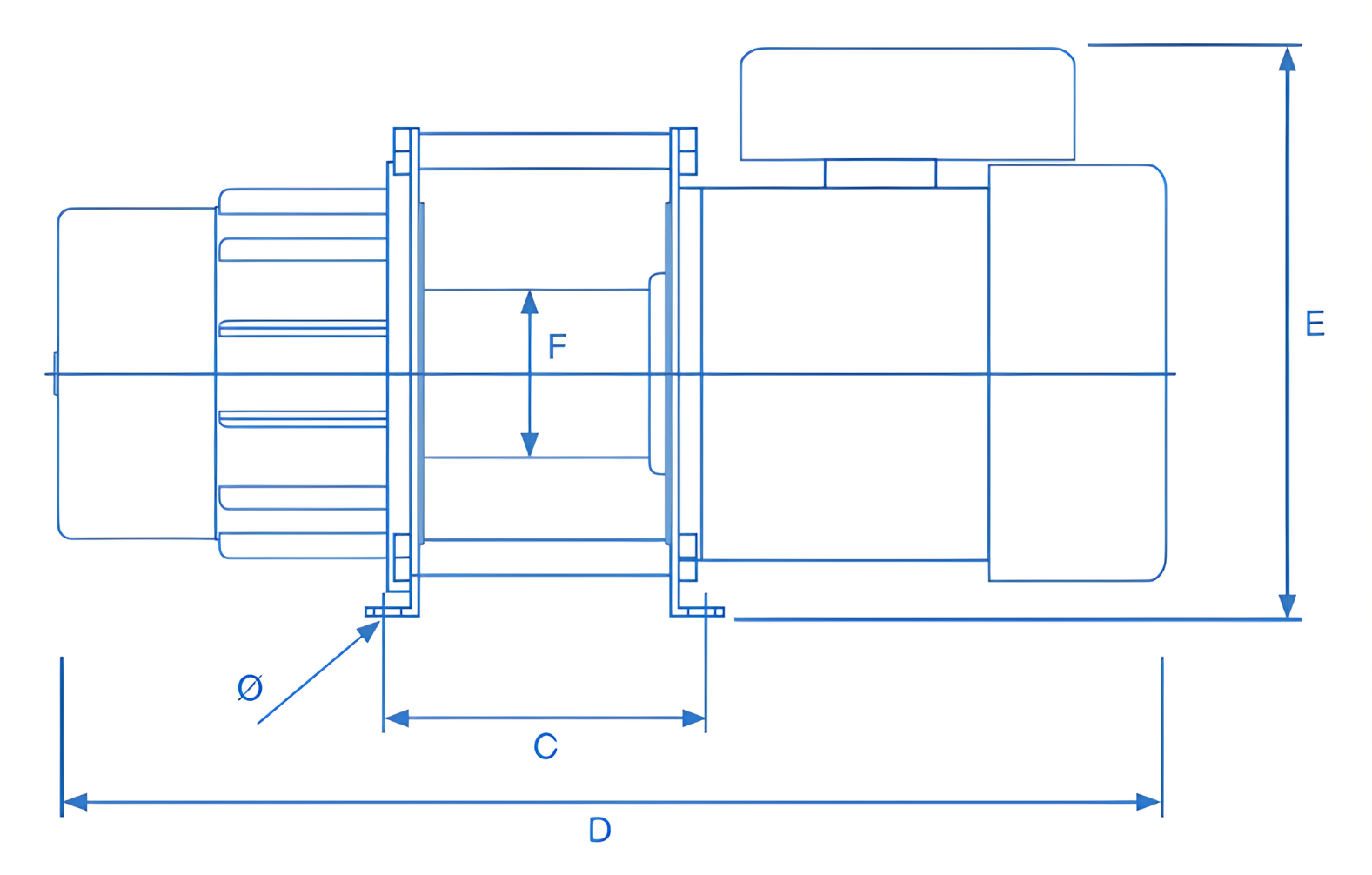

Dimensions
| PRODUCT CODE | A | B | C | D | E | F | Ø |
|---|---|---|---|---|---|---|---|
| WINOW-JV-1020-13D03 | 142mm | 210mm | 142mm | 522mm | 285mm | 76mm | 10mm |
| WINOW-JV-1025-13D03 | 142mm | 210mm | 142mm | 527mm | 285mm | 76mm | 10mm |
| WINOW-JV-1030-13D03 | 142mm | 210mm | 142mm | 527mm | 285mm | 76mm | 10mm |
| WINOW-JC-1025-17D12 | 160mm | 250mm | 250mm | 694mm | 290mm | 105mm | 17mm |
| WINOW-JC-1030-16D05 | 160mm | 220mm | 186mm | 605mm | 300mm | 76mm | 13mm |
| WINOW-JC-1050-16F03 | 160mm | 220mm | 186mm | 613mm | 305mm | 78mm | 13mm |
| WINOW-JC-1050-21F05 | 160mm | 250mm | 206mm | 653mm | 315mm | 105mm | 17mm |
