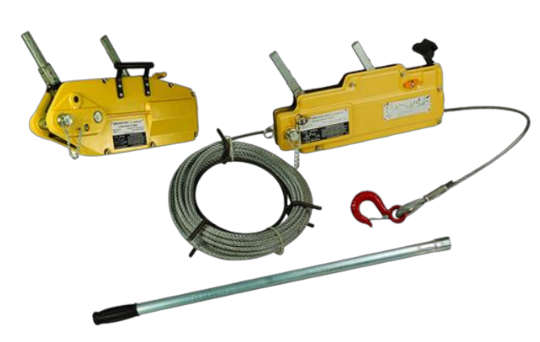

Wire Rope Winch
Wire Rope Winch
- Brand: Austlift
- Capacity: 0.8t to 3.2t
Compact, lightweight and robust in construction, this wire rope winch is ideal for lifting and hauling loads in general hoisting operations such as mining, construction, industrial lifting, 4WD off road recovery and domestic applications.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Proof tested to 2 x W.L.L.
- Fitted with shackle or hook head
- Quality bush, ball or tapered bearings
- Operational at any angle for ease of handling
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | CASE | PULLING CAPACITY | PULLING EFFORT | WIRE ROPE | ADVANCE/ PULL | HANDLE FORCE | NET WEIGHT – WINCH | NET WEIGHT – ROPE |
|---|---|---|---|---|---|---|---|---|---|
| AL135008 | 0.8t | Aluminium | 1250kg | 341N | 8.3mm | 52mm | 343N | 7.5kg | 8kg |
| AL135108 | 0.8t | Steel | 1250kg | 341N | 8.3mm | 52mm | 343N | 9.0kg | 8kg |
| AL135016 | 1.6t | Aluminium | 2500kg | 438N | 11.0mm | 55mm | 438N | 14.5kg | 12kg |
| AL135116 | 1.6t | Steel | 2500kg | 438N | 11.0mm | 55mm | 438N | 16.5kg | 12kg |
| AL135032 | 3.2t | Aluminium | 5000kg | 438N | 16.0mm | 28mm | 438N | 23.5kg | 24kg |
| AL135132 | 3.2t | Steel | 5000kg | 438N | 16.0mm | 28mm | 438N | 31.0kg | 24kg |
Dimensions
| PRODUCT CODE | A | B | C |
|---|---|---|---|
| AL135008 | 426mm | 236mm | 64mm |
| AL135108 | 440mm | 265mm | 63mm |
| AL135016 | 545mm | 280mm | 97mm |
| AL135116 | 550mm | 300mm | 77mm |
| AL135032 | 660mm | 325mm | 116mm |
| AL135132 | 690mm | 350mm | 91mm |
