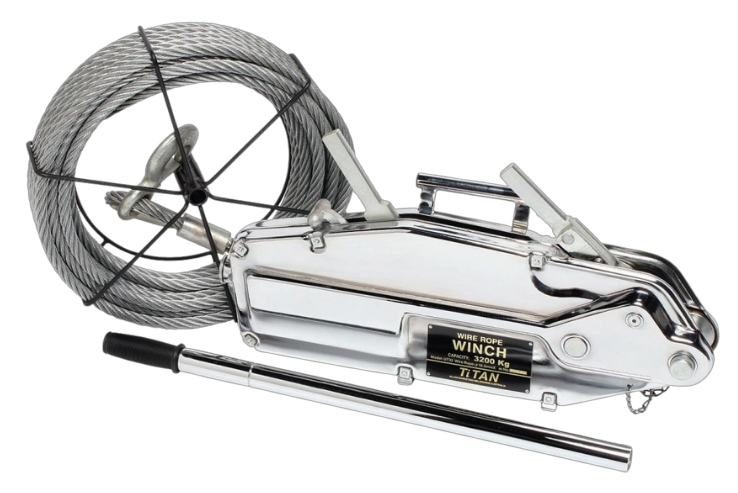

Wire Rope Winch
Wire Rope Winch
- Brand: Titan Lifting
- Capacity: 0.8t to 3.2t
Compact and reliable, this versatile wire rope winch is ideal for a variety of applications, including lifting, pulling, lowering, and stretching loads over long distances in horizontal, vertical or angled working positions. The rope gripping system is easily disengaged for smooth installation of the wire rope, whilst the parallel gripping system has a large surface contact area for evenly distributed grip at a lower force. Constructed from high quality materials, this winch is corrosion resistant with galvanised internal components and chrome finished alloy housing. The unique wire rope reeler and overload protection ensure operator safety and winch longevity.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Wire rope reeler
- Corrosion resistant
- Overload protection
- Parallel gripping system
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | LIFTING CAPACITY | PULLING CAPACITY | WIRE ROPE Ø | ROPE ADVANCE PER FULL STROKE CYCLE | OPERATED EFFORT – RATED LOAD | TELESCOPIC HANDLE LENGTH | ANCHOR PIN Ø | NET WEIGHT |
|---|---|---|---|---|---|---|---|---|
| TLWPH-08 | 0.8t | 1.3t | 8.5mm | >52mm | 29kg | 800mm | 25mm | 7.5kg |
| TLWPH-16 | 1.6t | 2.6t | 11.5mm | >55mm | 40kg | 1120mm | 25mm | 16kg |
| TLWPH-32 | 3.2t | 5.2t | 16.5mm | >28mm | 45kg | 1120mm | 30mm | 26kg |
