Tirfor Winch
Tirfor Winch
- Brand: Tractel
- Capacity: 0.8kg to 3.2kg

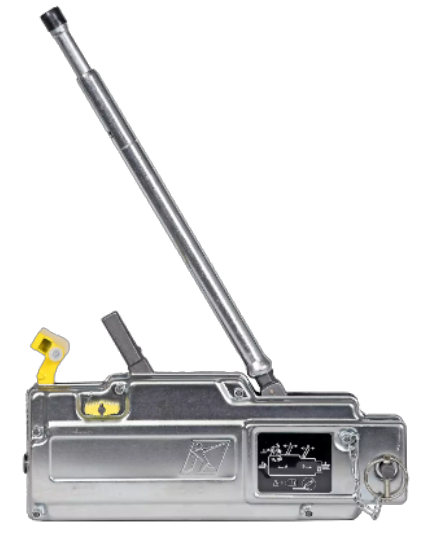

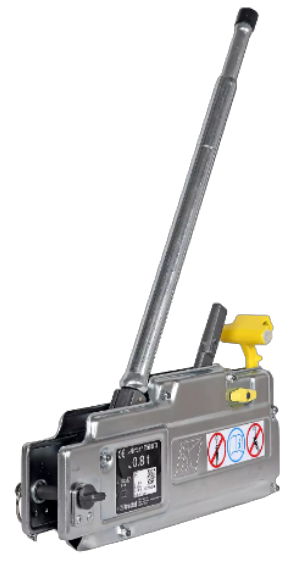

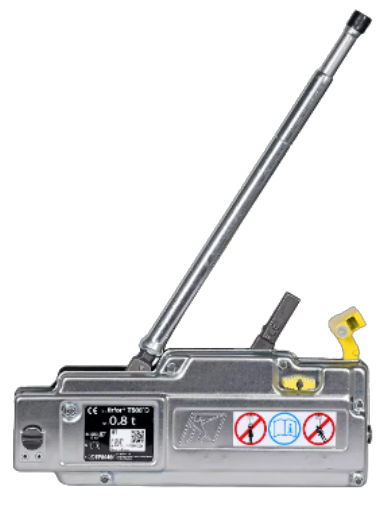

This versatile and portable Tirfor winch is suitable for manual lifting and pulling applications, making it ideal for lifting, lowering, tensioning and securing loads in any direction. Featuring a telescopic control lever, secure release system and overload protection, this winch is both safe and reliable.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Overload protection
- Secure release system
- Telescopic control lever
- Low-wear clamping jaws
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | WIRE ROPE Ø | EFFORT ON LEVER FORWARD | EFFORT ON LEVER REVERSE | ROPE TRAVEL FORWARD | ROPE TRAVEL REVERSE | NET WEIGHT |
|---|---|---|---|---|---|---|---|
| TRT508D | 0.8t | 8.3mm | 35kg | 12kg | 46mm | 63mm | 7kg |
| TRT516D | 1.6t | 11.5mm | 48kg | 18kg | 42mm | 57mm | 14kg |
| TRT532D | 3.2t | 16.3mm | 45kg | 25kg | 18mm | 36mm | 24kg |
Dimensions
| PRODUCT CODE | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TRT508D | 20.0mm | 420mm | 64mm | 212mm | 15.3mm | 38mm | 60mm | 165mm | 230mm | 405mm | 690mm |
| TRT516D | 30.0mm | 530mm | 77mm | 252mm | 21.3mm | 50mm | 84mm | 193mm | 315mm | 648mm | 1,147mm |
| TRT532D | 40.5mm | 631mm | 107mm | 283mm | 29.0mm | 69mm | 97mm | 240mm | 357mm | 648mm | 1,147mm |
