Spring Balancer
Spring Balancer
- Brand: Endo
- Capacity: 0.001t to 0.05t

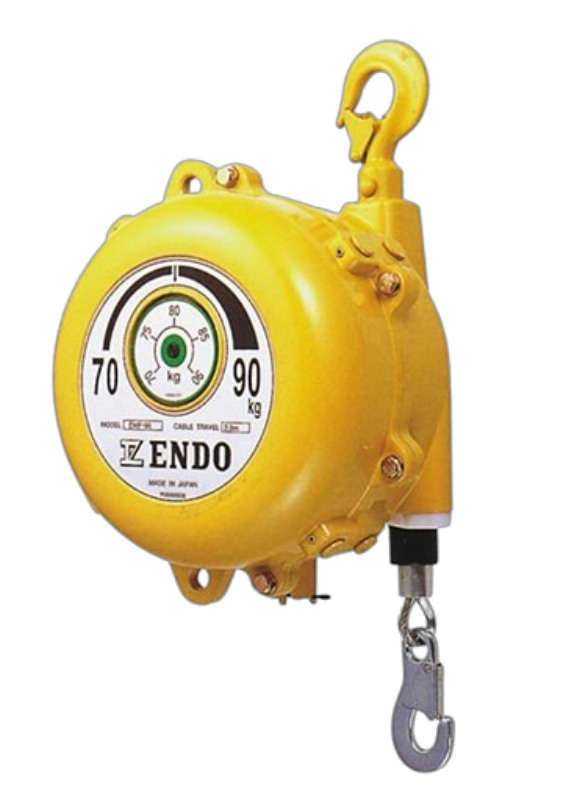

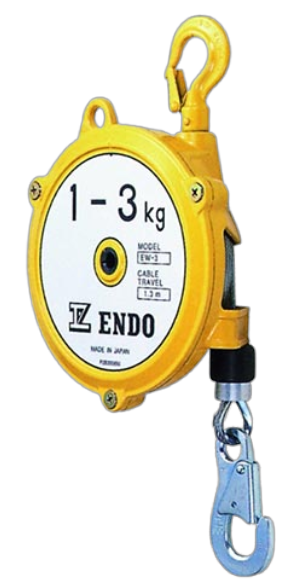

Strong and lightweight, this EW series spring balancer features an aluminium body, strong steel cable, and heavy duty top and bottom hooks, making it ideal for suspending tools, parts or welding equipment. Featuring a ratchet system for spring adjustment, easy maintenance with interchangeable kit parts and precise torque retraction across the full stroke due to its tapered drum, this spring balancer is ideal for industrial applications.
Features
Industries
Documents
Features
- Strong steel cable
- Heavy duty top and bottom hook
- Ratchet system spring adjustment
- Strong, lightweight aluminium body
Industries
- Automotive
- Agriculture
- Engineering
- Food Processing
- Manufacturing
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | STROKE | NET WEIGHT |
|---|---|---|---|
| KP44263 | 4.5kg – 9.0kg | 1.3m | 3.5kg |
| KP44264 | 9.0kg – 15.0kg | 1.3m | 3.8kg |
| KP44265 | 15.0kg – 22.0kg | 1.5m | 7.0kg |
| KP44266 | 22.0kg – 30.0kg | 1.5m | 7.6kg |
| KP44267 | 30.0kg – 40.0kg | 1.5m | 9.8kg |
| KP44268 | 40.0kg – 50.0kg | 1.5m | 10.2kg |
| KP44269 | 50.0kg – 60.0kg | 1.5m | 11.6kg |
| KP44270 | 60.0kg – 70.0kg | 1.5m | 11.9kg |
| KP44451 | 70.0kg – 90.0kg | 2.0m | 21.9kg |
| KP44452 | 85.0kg – 105.0kg | 2.0m | 24.0kg |
