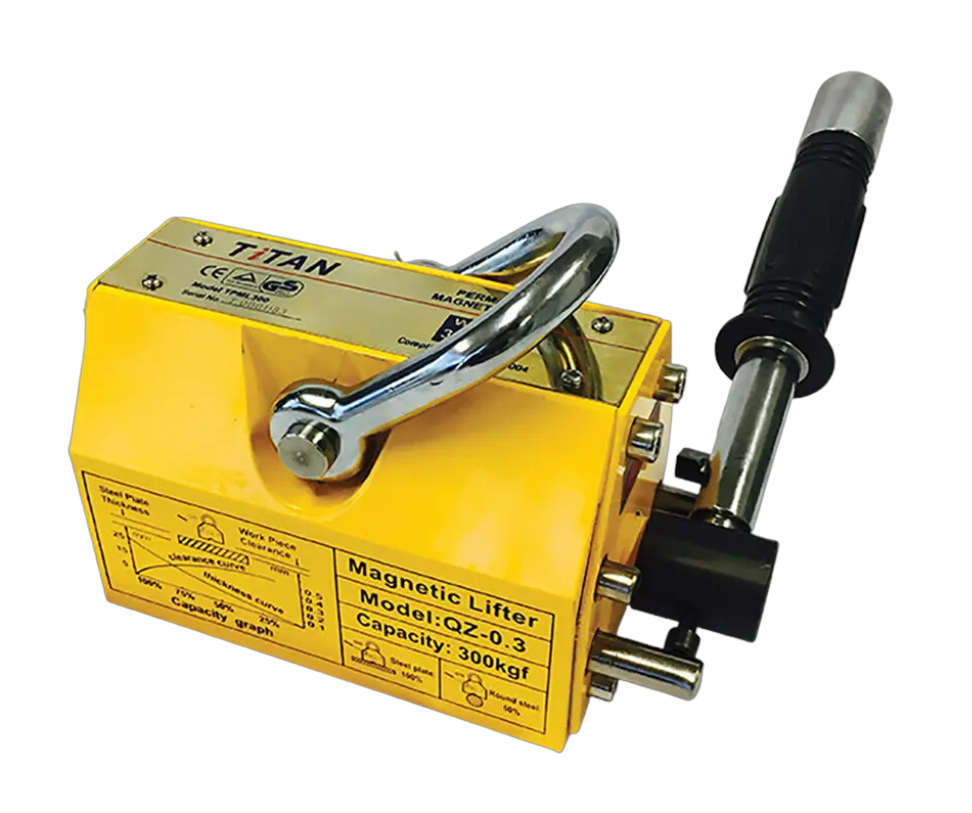

Permanent Magnetic Lifter
Permanent Magnetic Lifter
- Brand: Titan Lifting
- Capacity: 0.1t to 5.0t
Ideal for the movement of flat or round ferrous materials, this robust and reliable permanent magnetic lifter is equipped with super strong Neodymium magnets, ensuring operator safety and ease of use. Providing strong magnetic attraction, this lifter allows for the convenient and efficient hoisting, unloading and movement of iron/steel blocks, cylinders and other materials onto magnetic surfaces, making it the ideal lifting solution for factories, docks, warehouses and transportation applications.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Proof tested to 2 x W.L.L.
- Single handed operation
- Handle switch with safety twist
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | LIFTING CAPACITY – STEEL PLATE | LIFTING CAPACITY – ROUND STEEL | MAXIMUM PULL OF FORCE | NET WEIGHT |
|---|---|---|---|---|
| TLTPML100 | 0.10t | 0.05t | 0.35t | 3kg |
| TLTPML300 | 0.30t | 0.15t | 1.05t | 12kg |
| TLTPML600 | 0.60t | 0.30t | 2.10t | 24kg |
| TLTPML1000 | 1.00t | 0.50t | 3.50t | 43kg |
| TLTPML1500 | 1.50t | 0.75t | 5.00t | 69kg |
| TLTPML2000 | 2.00t | 1.00t | 7.00t | 105kg |
| TLTPML3000 | 3.00t | – | 10.50t | 160kg |
| TLTPML5000 | 5.00t | – | 15.50t | 302kg |
Dimensions
| PRODUCT CODE | L | B | H | R |
|---|---|---|---|---|
| TLTPML100 | 92mm | 64mm | 72mm | 148mm |
| TLTPML300 | 168mm | 99mm | 108mm | 223mm |
| TLTPML600 | 228mm | 118mm | 123mm | 257mm |
| TLTPML1000 | 266mm | 150mm | 158mm | 303mm |
| TLTPML1500 | 354mm | 168mm | 172mm | 464mm |
| TLTPML2000 | 394mm | 196mm | 204mm | 470mm |
| TLTPML3000 | 431mm | 234mm | 232mm | 576mm |
| TLTPML5000 | 522mm | 294mm | 289mm | 728mm |
