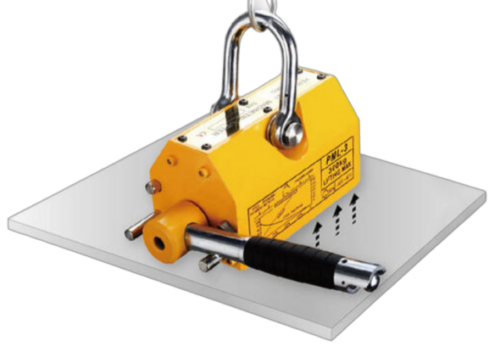

Permanent Magnetic Lifter
Permanent Magnetic Lifter
- Brand: Austlift
- Capacity: 0.1t to 6.0t
With its robust construction and high-performance magnetic system, this powerful and efficient permanent magnetic lifter provides reliable and safe handling of ferromagnetic materials. Versatile, safe and easy to operate, this lifter can fasten, hold and lift steel plates and cylindrical pieces without damaging the surface, making it ideal for various industrial lifting applications.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- No power source required
- Less than 1% residual magnetism
- Simple to operate with safety button design
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Mining/Oil/Gas
Specifications
Dimensions
Specifications
| PRODUCT CODE | RATED LIFTING STRENGTH | VERTICAL/CYLINDRICAL LIFTING STRENGTH | MAX. PULL-OFF STRENGTH | OPERATION TEMPERATURE | NET WEIGHT |
|---|---|---|---|---|---|
| AL144101 | 100kgf | 30kgf | 300kgf | <80°C | 3kg |
| AL144103 | 300kgf | 100kgf | 900kgf | <80°C | 10kg |
| AL144106 | 600kgf | 200kgf | 1800kgf | <80°C | 20kg |
| AL144110 | 1000kgf | 300kgf | 3000kgf | <80°C | 37kg |
| AL144115 | 1500kgf | 500kgf | 4500kgf | <80°C | 50kg |
| AL144200 | 2000kgf | 600kgf | 6000kgf | <80°C | 70kg |
| AL144300 | 3000kgf | – | 9000kgf | <80°C | 100kg |
| AL144500 | 5000kgf | – | 15000kgf | <80°C | 299kg |
| AL144600 | 6000kgf | – | 18000kgf | <80°C | 320kg |

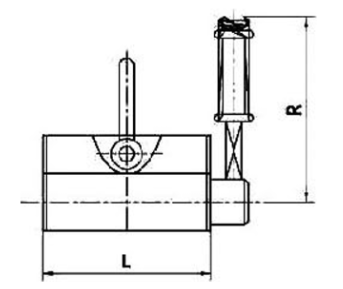

Dimensions
| PRODUCT CODE | L | B | H | R |
|---|---|---|---|---|
| AL144101 | 92mm | 64mm | 70mm | 142mm |
| AL144103 | 165mm | 88mm | 96mm | 176mm |
| AL144106 | 216mm | 118mm | 120mm | 219mm |
| AL144110 | 264mm | 148mm | 140mm | 266mm |
| AL144115 | 308mm | 172mm | 168mm | 285mm |
| AL144200 | 397mm | 172mm | 168mm | 380mm |
| AL144300 | 443mm | 226mm | 217mm | 512mm |
| AL144500 | 582mm | 290mm | 265mm | 627mm |
| AL144600 | 713mm | 290mm | 265mm | 707mm |
