Entertainment Rigging Karabiner
Entertainment Rigging Karabiner
- Brand: Townley
- Capacity: 0.8t

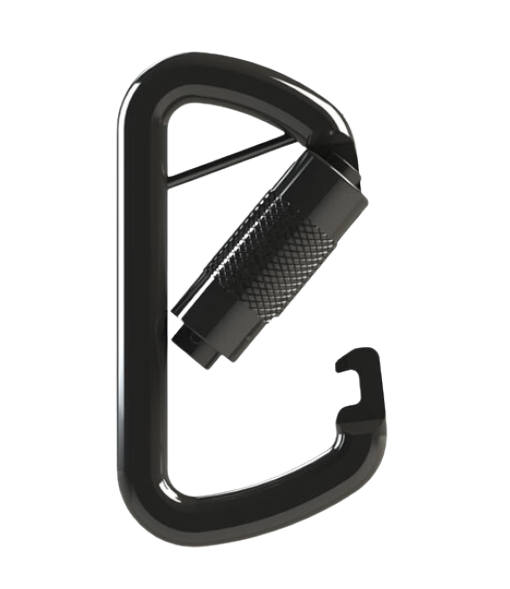

Available in two size options, this revolutionary karabiner has been specifically designed for lifting tasks within the entertainment sector. Constructed from cold-formed steel and finished in black gloss, each karabiner features a removable captive bar, unique serial number and offset dual-action catch with a capacity of up to 800kg. Ideal for lifting, moving, and tethering, this karabiner allows for swift and effortless rigging setup.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Black gloss finish
- Offset dual action locking gate
- Minimum Breaking Load (MBL) 4000kg (5:1)
- Cold-formed steel construction with black gloss finish
- Removable captive bar supplied for securing karabiner to sling
Industries
- Entertainment
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. |
|---|---|
| TNCLA801 | 0.8t |
| TNCLA802 | 0.8t |
Dimensions
| PRODUCT CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| TNCLA801 | 16.5mm | 57.0mm | 113.0mm | 62.0mm | 12.5mm |
| TNCLA802 | 47.0mm | 65.0mm | 178.0mm | 94.0mm | 12.0mm |
