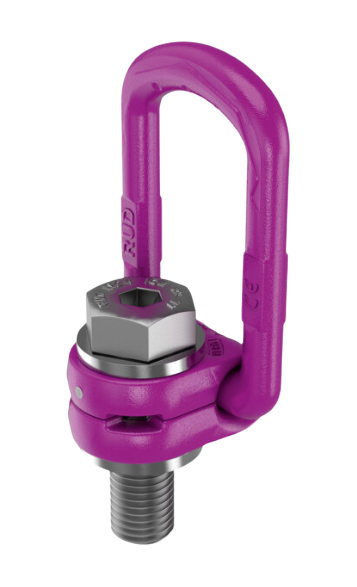

Load Ring – Metric Thread
Load Ring – Metric Thread
- Brand: RUD
- Capacity: 0.63t to 20.0t
Features
Industries
Documents
Features
- 180° pivot
- Safety factor of 4:1
- 360° lifting point rotation
- Patented ICE bolt material
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | THREAD SIZE | TORQUE | NET WEIGHT |
|---|---|---|---|---|
| RDVLBGP8504651 | 0.63t | M8 | 30Nm | 0.30kg |
| RDVLBGP8504652 | 0.90t | M10 | 60Nm | 0.32kg |
| RDVLBGP8504653 | 1.35t | M12 | 150Nm | 0.33kg |
| RDVLBGP8504655 | 2.00t | M16 | 150Nm | 0.55kg |
| RDVLBGP8504657 | 3.50t | M20 | 400Nm | 1.30kg |
| RDVLBGP8504659 | 4.50t | M24 | 760Nm | 1.50kg |
| RDVLBGP8504661 | 6.70t | M30 | 1000Nm | 3.30kg |
| RDVLBGP7983553 | 8.00t | M36 | 800Nm | 6.20kg |
| RDVLBGP7983554 | 10.00t | M42 | 1000Nm | 6.70kg |
| RDVLBGP7982966 | 15.00t | M42 | 1500Nm | 10.9kg |
| RDVLBGP7982967 | 20.00t | M48 | 2000Nm | 11.6kg |
Dimensions
| PRODUCT CODE | T | A | B | C | D | E | F | G | H | I | K | L | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RD8504651 | 75mm | 30mm | 54mm | 34mm | 24mm | 40mm | 10mm | 29mm | 11mm | 75mm | 45mm | 40mm | 32mm |
| RD8504652 | 75mm | 30mm | 54mm | 34mm | 24mm | 39mm | 10mm | 29mm | 15mm | 75mm | 45mm | 44mm | 32mm |
| RD8504653 | 75mm | 32mm | 54mm | 34mm | 26mm | 38mm | 10mm | 29mm | 18mm | 75mm | 45mm | 47mm | 32mm |
| RD8504655 | 85mm | 33mm | 56mm | 36mm | 30mm | 39mm | 13.5mm | 36mm | 22mm | 86mm | 47mm | 58mm | 38mm |
| RD8504657 | 110mm | 50mm | 82mm | 54mm | 45mm | 55mm | 16.5mm | 43mm | 32mm | 113mm | 64mm | 75mm | 48mm |
| RD8504659 | 125mm | 50mm | 82mm | 54mm | 45mm | 67mm | 18mm | 43mm | 37mm | 130mm | 78mm | 80mm | 48mm |
| RD8504661 | 147mm | 60mm | 103mm | 65mm | 60mm | 67mm | 22.5mm | 61mm | 49mm | 151mm | 80mm | 110mm | 67mm |
| RD7983553 | 197mm | 77mm | 122mm | 82mm | 70mm | 97mm | 26.5mm | 77mm | 63mm | 205mm | 110mm | 140mm | 87mm |
| RD7983554 | 197mm | 77mm | 122mm | 82mm | 70mm | 94mm | 26.5mm | 77mm | 73mm | 205mm | 110mm | 150mm | 70mm |
| RD7982966 | 222mm | 95mm | 156mm | 100mm | 85mm | 109mm | 36mm | 87mm | 63mm | 230mm | 130mm | 150mm | 100mm |
| RD7982967 | 222mm | 95mm | 156mm | 100mm | 95mm | 105mm | 36mm | 87mm | 73mm | 230mm | 130mm | 160mm | 100mm |
