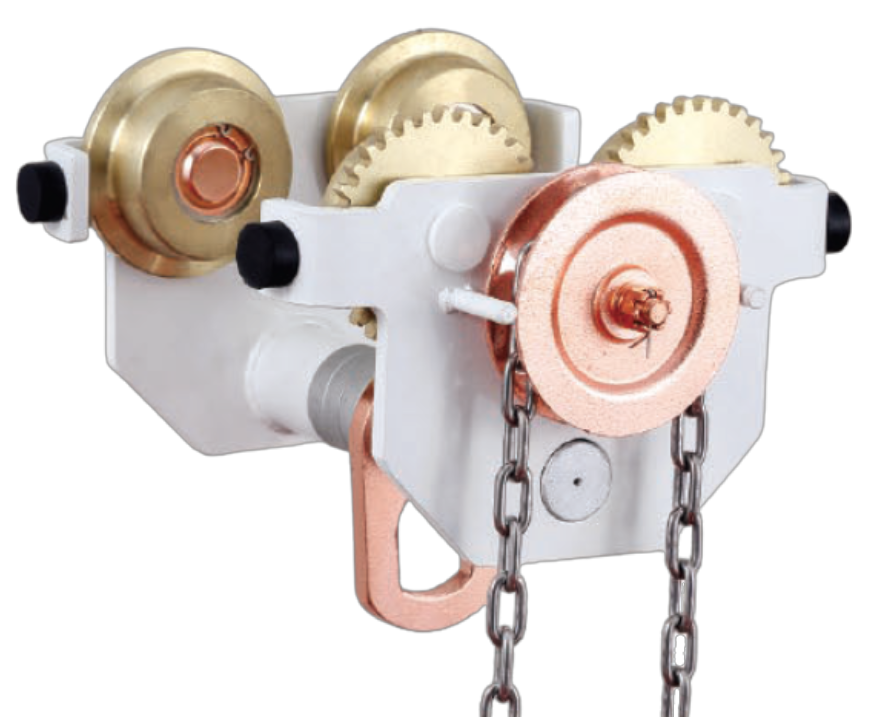

Spark Proof Geared Girder Trolley
- Brand: OzBlok
- Capacity: 0.5t to 30.0t
Robust and versatile, this geared girder trolley is designed for smooth and reliable material handling, as well as safe operation in hazardous environments by preventing sparks. With an anti-spark coating and excellent corrosion resistance, this spark proof geared girder trolley provides optimal user safety whilst meeting the most demanding lifting applications in sensitive environments.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- ATEX certified
- Anti-derailment side plates
- Precision ball bearing trolley wheels
- Suitable for use with a manual or powered hoist
- Adjustable to suit a variety of beam flange widths
Industries
- Food Industry
- Manufacturing
- Marine
- Mining
- Offshore
- Subsea
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | MIN. TURNING RADIUS | FLANGE WIDTH | NET WEIGHT |
---|---|---|---|---|
GTOZSP005 | 0.5t | 1.0m | 64mm – 203mm | 9.5kg |
GTOZSP010 | 1.0t | 1.0m | 64mm – 203mm | 13.0kg |
GTOZSP020 | 2.0t | 1.3m | 88mm – 203mm | 20.0kg |
GTOZSP030 | 3.0t | 1.3m | 101mm – 203mm | 28.0kg |
GTOZSP050 | 5.0t | 1.6m | 101mm – 203mm | 45.5kg |
GTOZSP100 | 10.0t | 2.5m | 125mm – 203mm | 84.0kg |
GTOZSP200 | 20.0t | 3.5m | 125mm – 330mm | 184.0kg |
GTOZSP300 | 30.0t | 4.5m | 150mm – 330mm | 292.0kg |

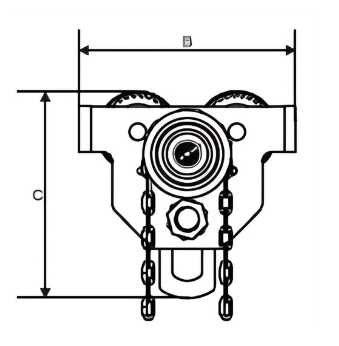

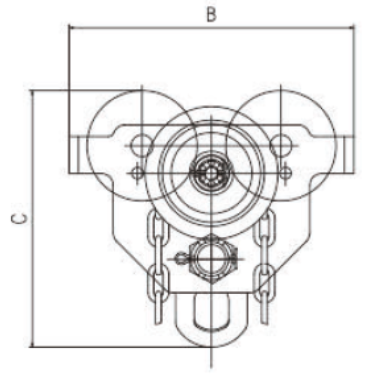

Dimensions
PRODUCT CODE | A | B | C | D | E | F | G | H | I | J | K | L |
---|---|---|---|---|---|---|---|---|---|---|---|---|
GTOZSP005 | 363mm | 212mm | 195mm | 114mm | 72mm | 52mm | 103mm | 38.5mm | 19mm | 32mm | 57mm | 8mm |
GTOZSP010 | 371mm | 240mm | 222mm | 127mm | 89mm | 63mm | 107mm | 38.5mm | 19mm | 32mm | 57mm | 10mm |
GTOZSP020 | 374mm | 270mm | 261mm | 155mm | 101.5mm | 68mm | 135mm | 51mm | 22mm | 38mm | 70mm | 12mm |
GTOZSP030 | 403mm | 320mm | 318mm | 186mm | 121.5mm | 92mm | 165mm | 68mm | 25mm | 45mm | 80mm | 14mm |
GTOZSP050 | 434mm | 350mm | 383mm | 231mm | 141.5mm | 98mm | 206mm | 85mm | 32mm | 54mm | 120mm | 18mm |
GTOZSP100 | 385mm | 425mm | 395mm | 198mm | 175.5mm | 133mm | 195mm | 114mm | 48.5mm | 85mm | 285mm | 20mm |
GTOZSP200 | 677mm | 527mm | 500mm | 240mm | 228mm | 170mm | 244mm | 114mm | 60mm | 96mm | 366mm | 35mm |
GTOZSP300 | 693mm | 590mm | 615mm | 313mm | 252mm | 202mm | 325mm | 165mm | 75mm | 145mm | 410mm | 50mm |
