Anti-Corrosion Chain Block
Anti-Corrosion Chain Block
- Brand: OzBlok
- Capacity: 0.5t to 30.0t
Robust and versatile, our anti-corrosion chain block is designed for use in marine environments with high salinity. Coated with a special anti-corrosion treatment, this chain block provides optimal user safety when lifting or pulling heavy loads in subsea and offshore applications. Optional stainless steel lifting chain, special marine storage chain bag and overload limiter available.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- High corrosion resistance construction
- Coated with special anti-corrosion treatment
Industries
- Mining/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT W.L.L. | LOAD CHAIN DIAMETER | NET WEIGHT |
|---|---|---|---|---|---|---|
| CBOZSSF3005-2.5 | 0.5t | 2.5m | 1 | 240N | 5mm x 15mm | 9.3kg |
| CBOZSSF3010-2.5 | 1.0t | 2.5m | 1 | 250N | 6mm x 18mm | 12.2kg |
| CBOZSSF3015-2.5 | 1.5t | 2.5m | 1 | 265N | 7mm x 21mm | 16.5kg |
| CBOZSSF3020-2.5 | 2.0t | 2.5m | 1 | 335N | 8mm x 24mm | 19.5kg |
| CBOZSSF3030-3 | 3.0t | 3.0m | 1 | 372N | 10mm x 30mm | 32.0kg |
| CBOZSSF3050-3 | 5.0t | 3.0m | 2 | 380N | 10mm x 30mm | 43.0kg |
| CBOZSSF3100-3 | 10.0t | 3.0m | 4 | 385N | 10mm x 30mm | 80.7kg |
| CBOZSSF3150-3 | 15.0t | 3.0m | 6 | 385N | 10mm x 30mm | 140.0kg |
| CBOZSSF3200-3 | 20.0t | 3.0m | 8 | 390x2N | 10mm x 30mm | 180.0kg |
| CBOZSSF3300-3 | 30.0t | 3.0m | 12 | 240N | 10mm x 30mm | 350.0kg |

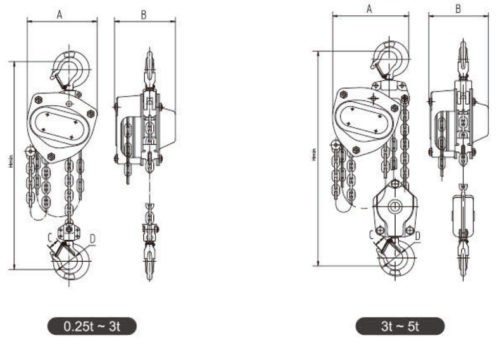

Dimensions
| PRODUCT CODE | A | B | C | D | Hmin |
|---|---|---|---|---|---|
| CBOZSSF3005-2.5 | 148mm | 132mm | 23mm | 35mm | 345mm |
| CBOZSSF3010-2.5 | 172mm | 151mm | 26mm | 40mm | 376mm |
| CBOZSSF3015-2.5 | 196mm | 173mm | 29.5mm | 45mm | 442mm |
| CBOZSSF3020-2.5 | 210mm | 175mm | 34mm | 50mm | 470mm |
| CBOZSSF3030-3 | 255mm | 205mm | 39mm | 55mm | 580mm |
| CBOZSSF3050-3 | 280mm | 189mm | 41mm | 65mm | 690mm |
| CBOZSSF3100-3 | 385mm | 189mm | 50mm | 85mm | 780mm |
| CBOZSSF3150-3 | 405mm | 242mm | 80mm | 110mm | 920mm |
| CBOZSSF3200-3 | 640mm | 226mm | 80mm | 110mm | 980mm |
| CBOZSSF3300-3 | 705mm | 454mm | 80mm | 110mm | 1280mm |
