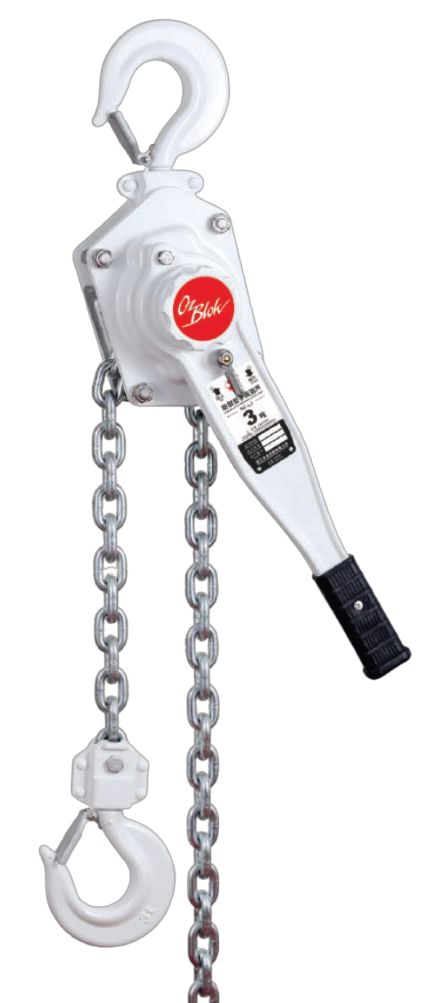

Anti-Corrosion Lever Hoist
- Brand: OzBlok
- Capacity: 0.5t to 9.0t
Robust and versatile, our anti-corrosion lever hoist is designed for use in marine environments with high salinity. Coated with a special anti-corrosion treatment, this lever hoist provides optimal user safety when lifting heavy loads in subsea and offshore applications. Optional stainless steel lifting chain, special marine storage bag and overload limiter available.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- High corrosion resistance construction
- Coated with special anti-corrosion treatment
Industries
- Mining/Oil/Gas
- Offshore
- Ports
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT W.L.L. | LOAD CHAIN DIAMETER | NET WEIGHT |
---|---|---|---|---|---|---|
CBOZSSL3005-2.5 | 0.5t | 1.5m | 1 | 256N | 5mm x 15mm | 5.5kg |
CBOZSSL3010-2.5 | 1.0t | 1.5m | 1 | 250N | 6mm x 18mm | 7.9kg |
CBOZSSL3015-2.5 | 1.5t | 1.5m | 1 | 373N | 7mm x 21mm | 10.9kg |
CBOZSSL3020-2.5 | 3.0t | 1.5m | 1 | 395N | 10mm x 30mm | 20.2kg |
CBOZSSL3030-3 | 6.0t | 1.5m | 2 | 398N | 10mm x 30mm | 35.0kg |
CBOZSSL3050-3 | 9.0t | 1.5m | 3 | 400N | 10mm x 30mm | 55.0kg |

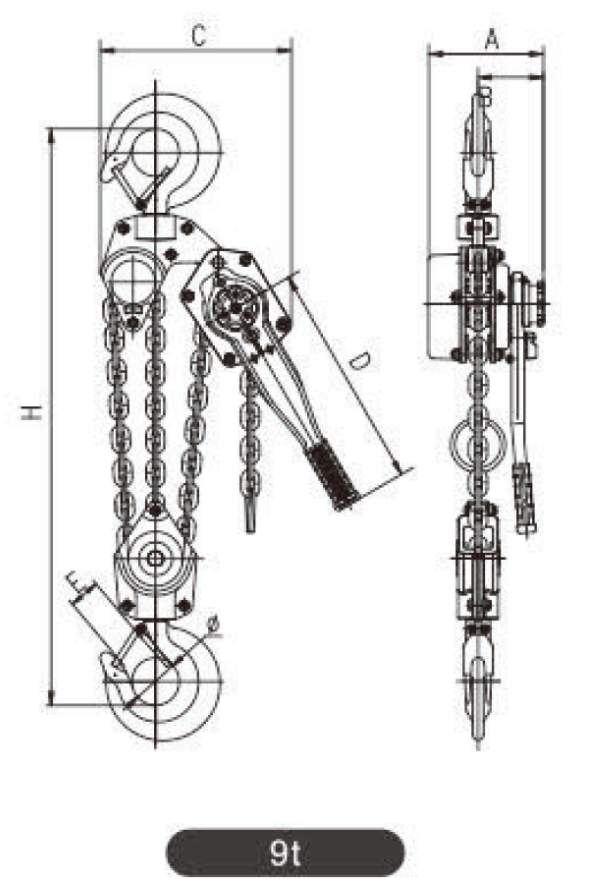

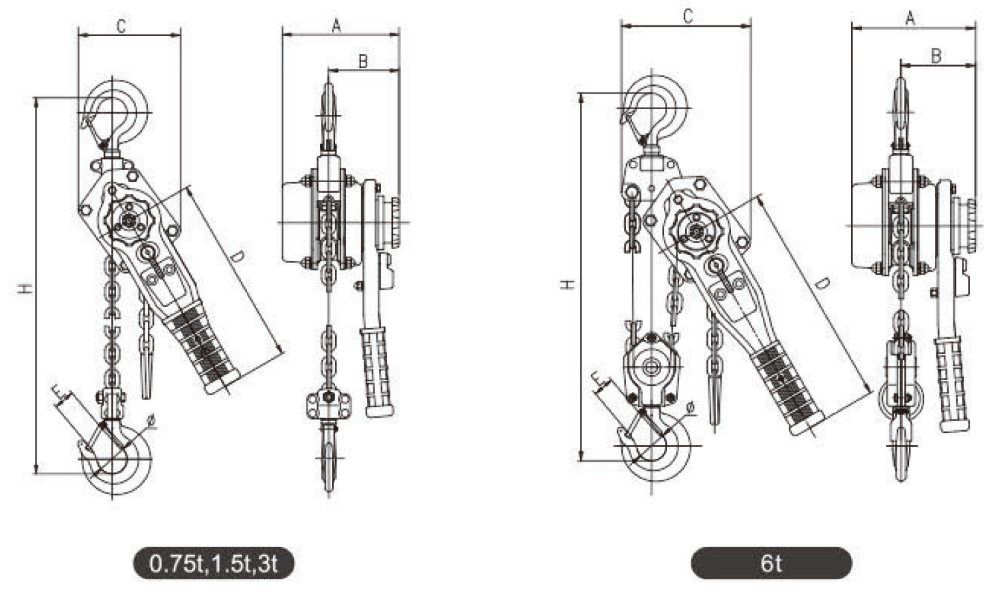

Dimensions
PRODUCT CODE | A | B | C | Ø | E | Hmin |
---|---|---|---|---|---|---|
CBOZSSL3005-2.5 | 143mm | 90.5mm | 118mm | 31.5mm | 23.5mm | 330mm |
CBOZSSL3010-2.5 | 157mm | 94.0mm | 140mm | 37.5mm | 26.0mm | 365mm |
CBOZSSL3015-2.5 | 178mm | 104.0mm | 145mm | 42.5mm | 31.0mm | 400mm |
CBOZSSL3020-2.5 | 206mm | 118.0mm | 199mm | 50.0mm | 37.0mm | 520mm |
CBOZSSL3030-3 | 206mm | 118.0mm | 230mm | 65.0mm | 46.0mm | 595mm |
CBOZSSL3050-3 | 206mm | 118.0mm | 342mm | 85.0mm | 55.0mm | 800mm |
