Anti-Corrosion Geared Trolley
- Brand: OzBlok
- Capacity: 1.0t to 30.0t

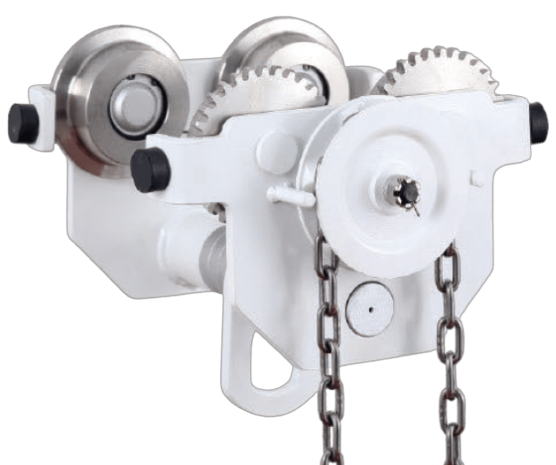

Robust and versatile, our marine anti-corrosion geared trolley is designed for use in marine environments with high salinity. Coated with a special anti-corrosion treatment, this geared trolley provides optimal user safety whilst meeting the most demanding subsea and offshore lifting applications.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- High corrosion resistant construction
- Coated with special anti-corrosion treatment
Industries
- Mining/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | TEST LOAD | RUNNING HEIGHT | BEAM RANGE A | BEAM RANGE B | NET WEIGHT A | NET WEIGHT B |
---|---|---|---|---|---|---|---|
CBOZSSGCL010 | 1.0t | 14.71kN | 2.5m | 64mm – 203mm | 64mm – 305mm | 14.5kg | 15.5kg |
CBOZSSGCL020 | 2.0t | 29.42kN | 2.5m | 88mm – 203mm | 88mm – 305mm | 21.5kg | 23.0kg |
CBOZSSGCL030 | 3.0t | 44.13kN | 2.5m | 100mm – 203mm | 100mm – 305mm | 31.0kg | 33.0kg |
CBOZSSGCL050 | 5.0t | 61.29kN | 2.5m | 114mm – 203mm | 114mm – 305mm | 46.0kg | 48.0kg |
CBOZSSGCL100 | 10.0t | 122.58kN | 2.5m | 124mm – 203mm | 124mm – 305mm | 88.0kg | 94.0kg |
CBOZSSGCL200 | 20.0t | 245.17kN | 2.5m | 136mm – 203mm | 136mm – 305mm | 165.0kg | 174.0kg |
CBOZSSGCL300 | 30.0t | 367.75kN | 2.5m | – | 175mm – 305mm | – | 337.0kg |

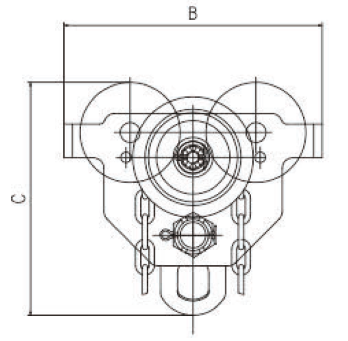

Dimensions
PRODUCT CODE | Aa | Ab | B | C | H | S | F |
---|---|---|---|---|---|---|---|
CBOZSSGCL010 | 311mm | 413mm | 246mm | 222mm | 125mm | 38mm | 1.5mm – 3mm |
CBOZSSGCL020 | 327mm | 429mm | 276mm | 263mm | 150mm | 38mm | 1.5mm – 3mm |
CBOZSSGCL030 | 343mm | 445mm | 332mm | 309mm | 171mm | 40mm | 1.5mm – 3mm |
CBOZSSGCL050 | 355mm | 457mm | 377mm | 353mm | 196mm | 42mm | 1.5mm – 3mm |
CBOZSSGCL100 | 388mm | 490mm | 424mm | 396mm | 190mm | 45mm | 1.5mm – 3mm |
CBOZSSGCL200 | 449mm | 551mm | 555mm | 498mm | 233mm | 58mm | 1.5mm – 3mm |
CBOZSSGCL300 | – | 582mm | 710mm | 598mm | 285mm | 65mm | 1.5mm – 3mm |
