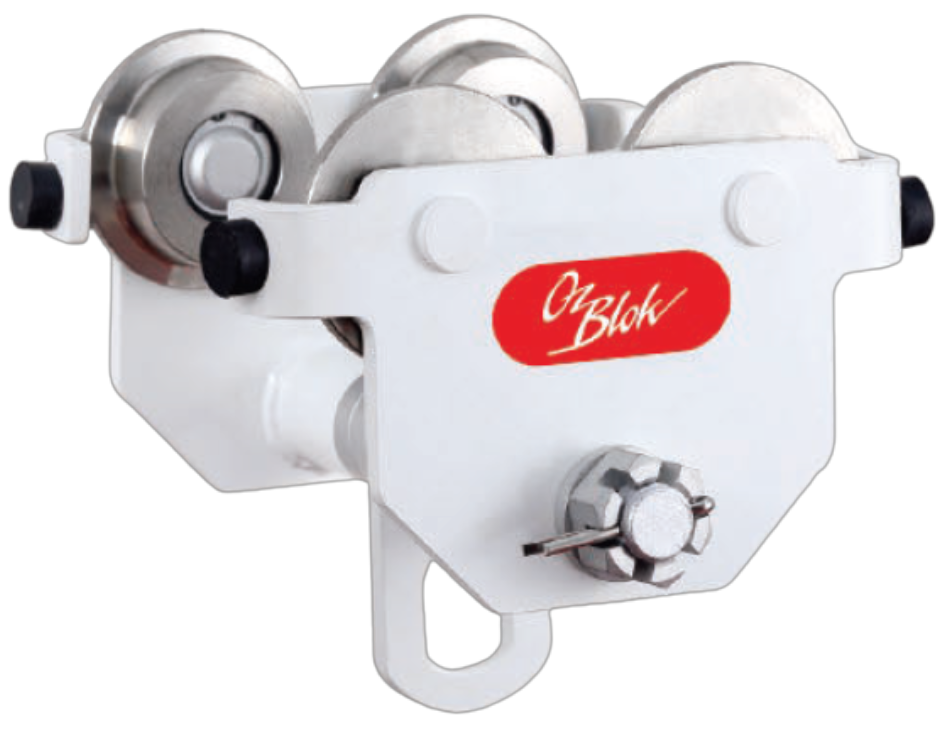

Anti-Corrosion Push Trolley
Anti-Corrosion Push Trolley
- Brand: OzBlok
- Capacity: 1.0t to 30.0t
Robust and versatile, our marine anti-corrosion push trolley is designed for use in marine environments with high salinity. Coated with a special anti-corrosion treatment, this push trolley provides optimal user safety whilst meeting the most demanding subsea and offshore lifting applications.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- High corrosion resistant construction
- Coated with special anti-corrosion treatment
Industries
- Mining/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | TEST LOAD | MINIMUM RADIUS CURVE | BEAM RANGE A | BEAM RANGE B | NET WEIGHT A | NET WEIGHT B |
|---|---|---|---|---|---|---|---|
| CBOZSSGCT010 | 1.0t | 14.71kN | 1.0m | 64mm – 203mm | 64mm – 305mm | 10.5kg | 11.5kg |
| CBOZSSGCT020 | 2.0t | 29.42kN | 1.1m | 88mm – 203mm | 88mm – 305mm | 17.5kg | 19.0kg |
| CBOZSSGCT030 | 3.0t | 44.13kN | 1.3m | 100mm – 203mm | 100mm – 305mm | 27.0kg | 29.0kg |
| CBOZSSGCT050 | 5.0t | 61.29kN | 1.4m | 114mm – 203mm | 114mm – 305mm | 41.0kg | 143.0kg |
| CBOZSSGCT100 | 10.0t | 122.58kN | 2.0m | 124mm – 203mm | 124mm – 305mm | 82.0kg | 89.0kg |
| CBOZSSGCT200 | 20.0t | 245.17kN | 3.5m | 136mm – 203mm | 136mm – 305mm | 159.0kg | 167.0kg |
| CBOZSSGCT300 | 30.0t | 367.75kN | 6.0m | – | 175mm – 305mm | – | 327.0kg |
Dimensions
| PRODUCT CODE | Aa | Ab | B | C | H | S | F |
|---|---|---|---|---|---|---|---|
| CBOZSSGCT010 | 311mm | 413mm | 246mm | 222mm | 125mm | 38mm | 1.5mm – 3mm |
| CBOZSSGCT020 | 327mm | 429mm | 276mm | 263mm | 150mm | 38mm | 1.5mm – 3mm |
| CBOZSSGCT030 | 343mm | 445mm | 332mm | 309mm | 171mm | 40mm | 1.5mm – 3mm |
| CBOZSSGCT050 | 355mm | 457mm | 377mm | 353mm | 196mm | 42mm | 1.5mm – 3mm |
| CBOZSSGCT100 | 388mm | 490mm | 424mm | 396mm | 190mm | 45mm | 1.5mm – 3mm |
| CBOZSSGCT200 | 449mm | 551mm | 555mm | 498mm | 233mm | 58mm | 1.5mm – 3mm |
| CBOZSSGCT300 | – | 582mm | 710mm | 598mm | 285mm | 65mm | 1.5mm – 3mm |
