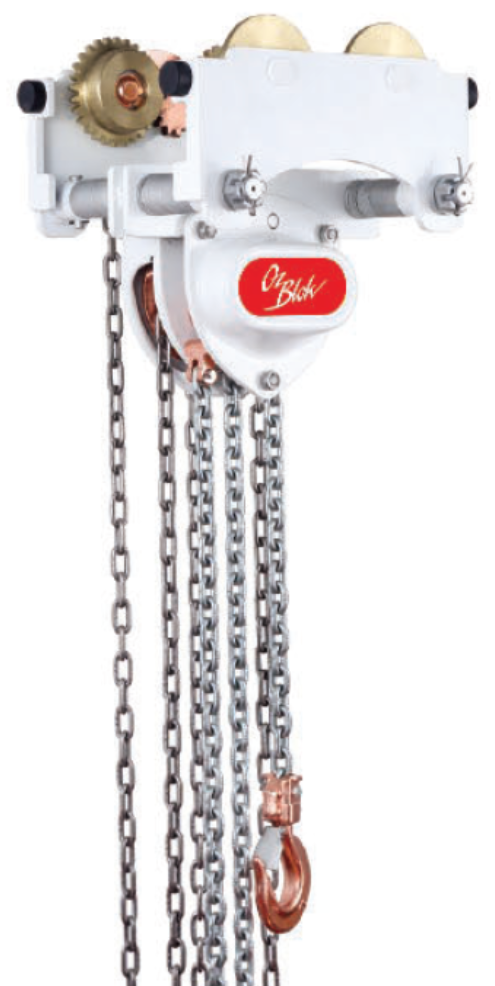

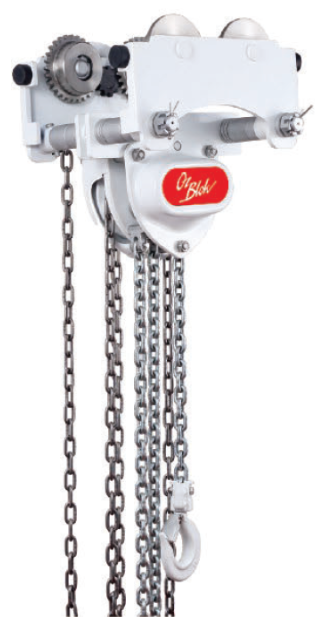

Stainless Steel Combined Hoisting Assembly
Stainless Steel Combined Hoisting Assembly
- Brand: OzBlok
- Capacity: 0.5t to 5.0t
Robust and versatile, this stainless steel combined hoisting assembly is suitable for lifting applications in potentially explosive or corrosive environments. With anti-shedding protection and a rubber buffer device, this stainless steel combined hoisting assembly is ideal for operation where headroom height is limited. Optional self-locking device, storage chain bag, stainless steel chain and overload limiter available.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- ATEX certified
- Corrosion resistant
- Anti-shedding protection
- Constructed from 304 stainless steel
Industries
- Mining/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | TEST LOAD | RUNNING HEIGHT | BEAM RANGE A | BEAM RANGE B | NET WEIGHT A | NET WEIGHT B |
|---|---|---|---|---|---|---|---|
| CBOZGCLF3050 | 0.5t | 7.35kN | 2.5m | 50mm – 152mm | 50mm – 203mm | 19.0kg | 21.0kg |
| CBOZGCLF3010 | 1.0t | 14.71kN | 2.5m | 64mm – 203mm | 64mm – 305mm | 28.0kg | 30.0kg |
| CBOZGCLF3015 | 1.5t | 22.06kN | 2.5m | 74mm – 203mm | 74mm – 305mm | 37.0kg | 39.0kg |
| CBOZGCLF3020 | 2.0t | 29.42kN | 2.5m | 88mm – 203mm | 88mm – 305mm | 49.5kg | 51.5kg |
| CBOZGCLF3030 | 3.0t | 44.13kN | 2.5m | 100mm – 203mm | 100mm – 305mm | 70.5kg | 73.5kg |
| CBOZGCLF3050 | 5.0t | 61.29kN | 2.5m | 114mm – 203mm | 114mm – 305mm | 97.0kg | 101.0kg |
Dimensions
| PRODUCT CODE | Aa | Ab | B | C | H | S | F |
|---|---|---|---|---|---|---|---|
| CBOZGCLF3050 | 272mm | 322mm | 258mm | 385mm | 299mm | 30mm | 1.5mm – 3.0mm |
| CBOZGCLF3010 | 334mm | 436mm | 292mm | 451mm | 331mm | 37mm | 1.5mm – 3.0mm |
| CBOZGCLF3015 | 337mm | 439mm | 319mm | 489mm | 383mm | 38mm | 1.5mm – 3.0mm |
| CBOZGCLF3020 | 343mm | 445mm | 358mm | 551mm | 424mm | 38mm | 1.5mm – 3.0mm |
| CBOZGCLF3030 | 357mm | 459mm | 434mm | 633mm | 486mm | 40mm | 1.5mm – 3.0mm |
| CBOZGCLF3050 | 373mm | 475mm | 448mm | 808mm | 625mm | 42mm | 1.5mm – 3.0mm |
