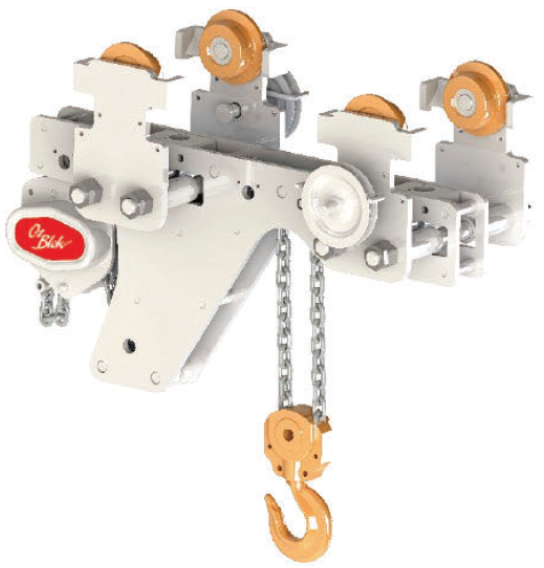

Turning Low Headroom Combination Hoist
- Brand: OzBlok
- Capacity: 0.5t to 3.0t
This robust and versatile turning low headroom combination hoist is suitable for lifting applications in potentially explosive or corrosive environments. With minimum headroom required and a small turning radius, this turning low headroom combination hoist is ideal for operation in confined spaces. Optional self-locking device, overload limiter and chain bag available.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- ATEX certified
- Corrosion resistant
- Small turning radius
Industries
- Mining/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | TEST LOAD | RUNNING HEIGHT | MIN. RADIUS CURVE | BEAM RANGE | NET WEIGHT |
---|---|---|---|---|---|---|
CBOZSHTX050 | 0.5t | 6.125kN | 2.5m | 0.54mm | 88mm | 62kg |
CBOZSHTX010 | 1.0t | 12.250kN | 2.5m | 0.54mm | 88mm | 62kg |
CBOZSHTX020 | 2.0t | 24.500kN | 2.5m | 0.54mm | 112mm | 62kg |
CBOZSHTX030 | 3.0t | 36.750kN | 2.5m | 1.02mm | 150mm | 82kg |
Dimensions
PRODUCT CODE | A | B | C | D | E | F |
---|---|---|---|---|---|---|
CBOZSHTX050 | 342mm | 327mm | 317mm | 477mm | 672mm | 1.5mm – 3.0mm |
CBOZSHTX010 | 342mm | 327mm | 317mm | 477mm | 672mm | 1.5mm – 3.0mm |
CBOZSHTX020 | 366mm | 327mm | 317mm | 488mm | 676mm | 1.5mm – 3.0mm |
CBOZSHTX030 | 435mm | 505mm | 275mm | 600mm | 885mm | 1.5mm – 3.0mm |
