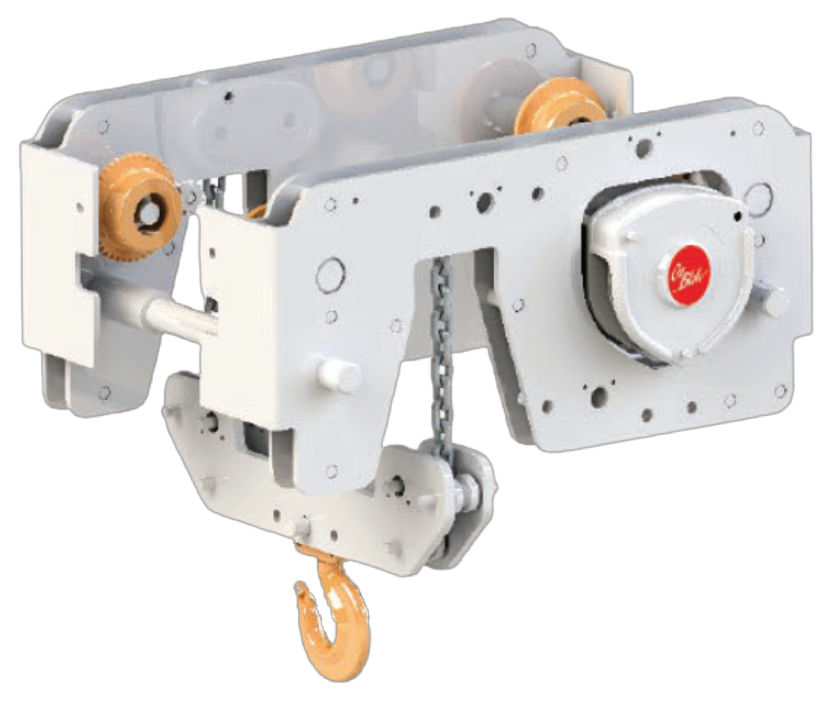

Low Headroom Combination Hoist
Low Headroom Combination Hoist
- Brand: OzBlok
- Capacity: 1.0t to 20.0t
Robust and versatile, this stainless steel low headroom combination hoist is suitable for lifting applications in potentially explosive or corrosive environments. With anti-shedding protection and a rubber buffer device, this stainless steel low headroom combination hoist allows maximum lifting in confined spaces. Optional self locking device, chain storage bag and overload limiter available.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Corrosion resistant
- Anti-shedding protection
- Constructed from stainless steel
Industries
- Mining/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | TEST LOAD | RUNNING HEIGHT | BEAM RANGE | NET WEIGHT |
|---|---|---|---|---|---|
| CBOZSHB010 | 1.0t | 12.25kN | 2.5m | 75mm – 150mm | 61kg |
| CBOZSHB020 | 2.0t | 24.50kN | 3.0m | 100mm – 150mm | 92kg |
| CBOZSHB030 | 3.0t | 36.75kN | 3.0m | 125mm – 175mm | 141kg |
| CBOZSHB050 | 5.0t | 24.50kN | 3.0m | 100mm – 150mm | 252kg |
| CBOZSHB100 | 10.0t | 24.50kN | 3.0m | 100mm – 150mm | 320kg |
| CBOZSHB200 | 20.0t | 24.50kN | 3.0m | 100mm – 150mm | 750kg |

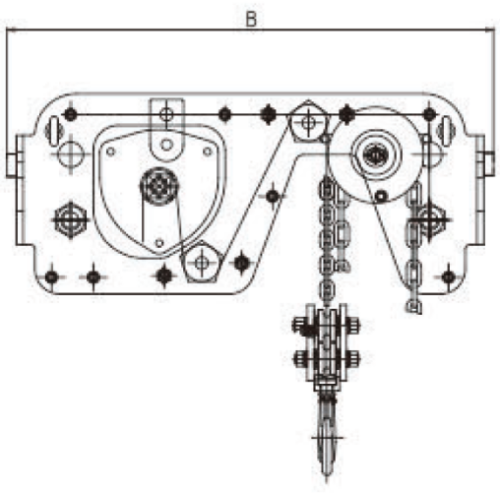

Dimensions
| PRODUCT CODE | A | B | H | F |
|---|---|---|---|---|
| CBOZSHB010 | 440mm | 584mm | 145mm | 1.5mm – 3.0mm |
| CBOZSHB020 | 513mm | 684mm | 166mm | 1.5mm – 3.0mm |
| CBOZSHB030 | 608mm | 769mm | 198mm | 1.5mm – 3.0mm |
| CBOZSHB050 | 655mm | 884mm | 265mm | 1.5mm – 3.0mm |
| CBOZSHB100 | 742mm | 1105mm | 310mm | 1.5mm – 3.0mm |
| CBOZSHB200 | 798mm | 1428mm | 440mm | 1.5mm – 3.0mm |
