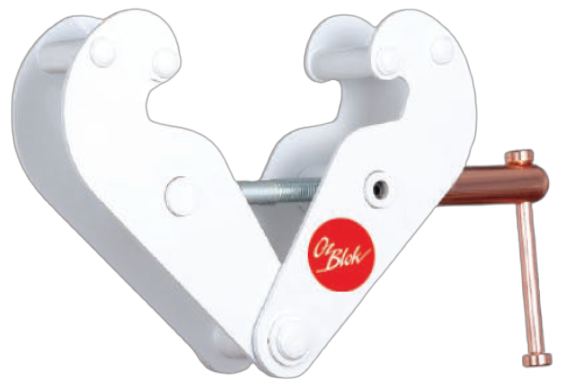

Beam Clamp
- Brand: OzBlok
- Capacity: 1.0t to 10.0t
Lightweight and versatile, this beam clamp is ideal for lifting and pulling applications, or as a semi-permanent anchor point. Easy to assemble and disassemble, this adjustable beam clamp is suitable for a wide range of i-beams and flange widths in environments with low head room height. Available with anti-corrosion coating.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- All steel construction
- Adjustable screw spindle
- Optional anti-corrosion coating
Industries
- Mining/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | BEAM RANGE | NET WEIGHT |
---|---|---|---|
CBOZLJ-A1 | 1.0t | 75mm – 150mm | 61kg |
CBOZLJ-A2 | 2.0t | 100mm – 150mm | 92kg |
CBOZLJ-A3 | 3.0t | 125mm – 175mm | 141kg |
CBOZLJ-A5 | 5.0t | 100mm – 150mm | 252kg |
CBOZLJ-A10 | 10.0t | 100mm – 150mm | 320kg |

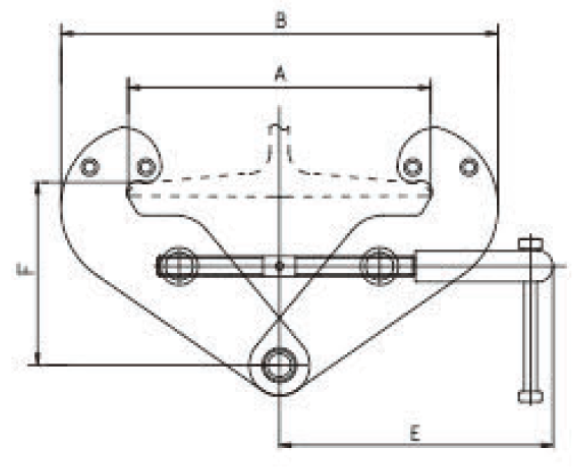

Dimensions
PRODUCT CODE | Amax | Ba | Bb | B | C | E | Fa | Fb | G |
---|---|---|---|---|---|---|---|---|---|
CBOZLJ-A1 | 284mm | 180mm | 375mm | 80mm | 4mm | 220mm | 102mm | 160mm | 29mm |
CBOZLJ-A2 | 284mm | 180mm | 375mm | 90mm | 6mm | 220mm | 102mm | 160mm | 28mm |
CBOZLJ-A3 | 365mm | 220mm | 498mm | 117mm | 8mm | 271mm | 168mm | 240mm | 60mm |
CBOZLJ-A5 | 365mm | 220mm | 498mm | 127mm | 10mm | 271mm | 168mm | 240mm | 57mm |
CBOZLJ-A10 | 356mm | 250mm | 514mm | 139mm | 12mm | 280mm | 172mm | 242mm | 55mm |
