Heavy Duty Snatch Block
Heavy Duty Snatch Block
- Brand: Austlift
- Capacity: 2.0t to 50.0t
Enhance your lifting capabilities with our manually operated snatch blocks featuring a shackle head. Engineered for heavy-duty applications, these precision-crafted blocks provide reliable load distribution and secure attachment points, ensuring optimal performance and safety in demanding lifting operations.
- Australian Standard: AS 2089
Features
Industries
Documents
Features
- Proof tested to 2 x W.L.L.
- Drop forged, heat treated swivel shackle
- Grease nipples fitted with roller bearings (2t – 50t)
- Made from hi-tensile steel body and cast steel sheave
Industries
- Automotive
- Agriculture
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Mining
- Off Shore Rigging
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | SHEAVE Ø | WIRE ROPE Ø | NET WEIGHT |
|---|---|---|---|---|
| AL140102 | 2t | 75mm | 8mm -9mm | 4.0kg |
| AL140103 | 4t | 115mm | 10mm -13mm | 6.1kg |
| AL140104 | 4t | 152mm | 10mm -13mm | 13.8kg |
| AL140106 | 6t | 152mm | 13mm – 16mm | 15.0kg |
| AL140108 | 8t | 203mm | 16mm – 18mm | 16.0kg |
| AL140110 | 10t | 254mm | 18mm – 20mm | 37.5kg |
| AL140112 | 12t | 305mm | 20mm – 22mm | 56.0kg |
| AL140115 | 15t | 305mm | 24mm – 26mm | 65.0kg |
| AL140122 | 22t | 355mm | 28mm – 32mm | 90.0kg |
| AL1401130 | 30t | 510mm | 32mm – 36mm | 210.0kg |
| AL140150 | 50t | 610mm | 44mm – 50mm | 418.0kg |

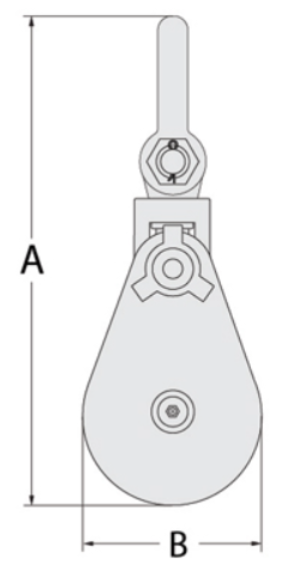

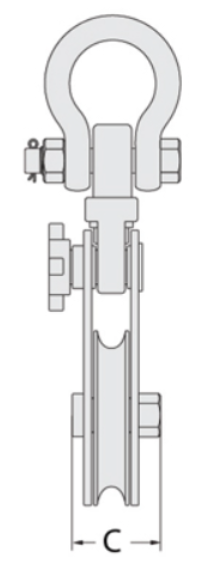

Dimensions
| PRODUCT CODE | A | B | C |
|---|---|---|---|
| AL140102 | 286mm | 82mm | 70mm |
| AL140103 | 345mm | 120mm | 70mm |
| AL140104 | 400mm | 160mm | 70mm |
| AL140106 | 480mm | 160mm | 94mm |
| AL140108 | 530mm | 210mm | 93mm |
| AL140110 | 680mm | 260mm | 115mm |
| AL140112 | 767mm | 310mm | 133mm |
| AL140115 | 788mm | 310mm | 133mm |
| AL140122 | 952mm | 365mm | 140mm |
| AL140130 | 1256mm | 514mm | 162mm |
| AL140150 | 1525mm | 625mm | 240mm |
