Geared Girder Trolley
Geared Girder Trolley
- Brand: OzBlok
- Capacity: 0.5t to 50.0t

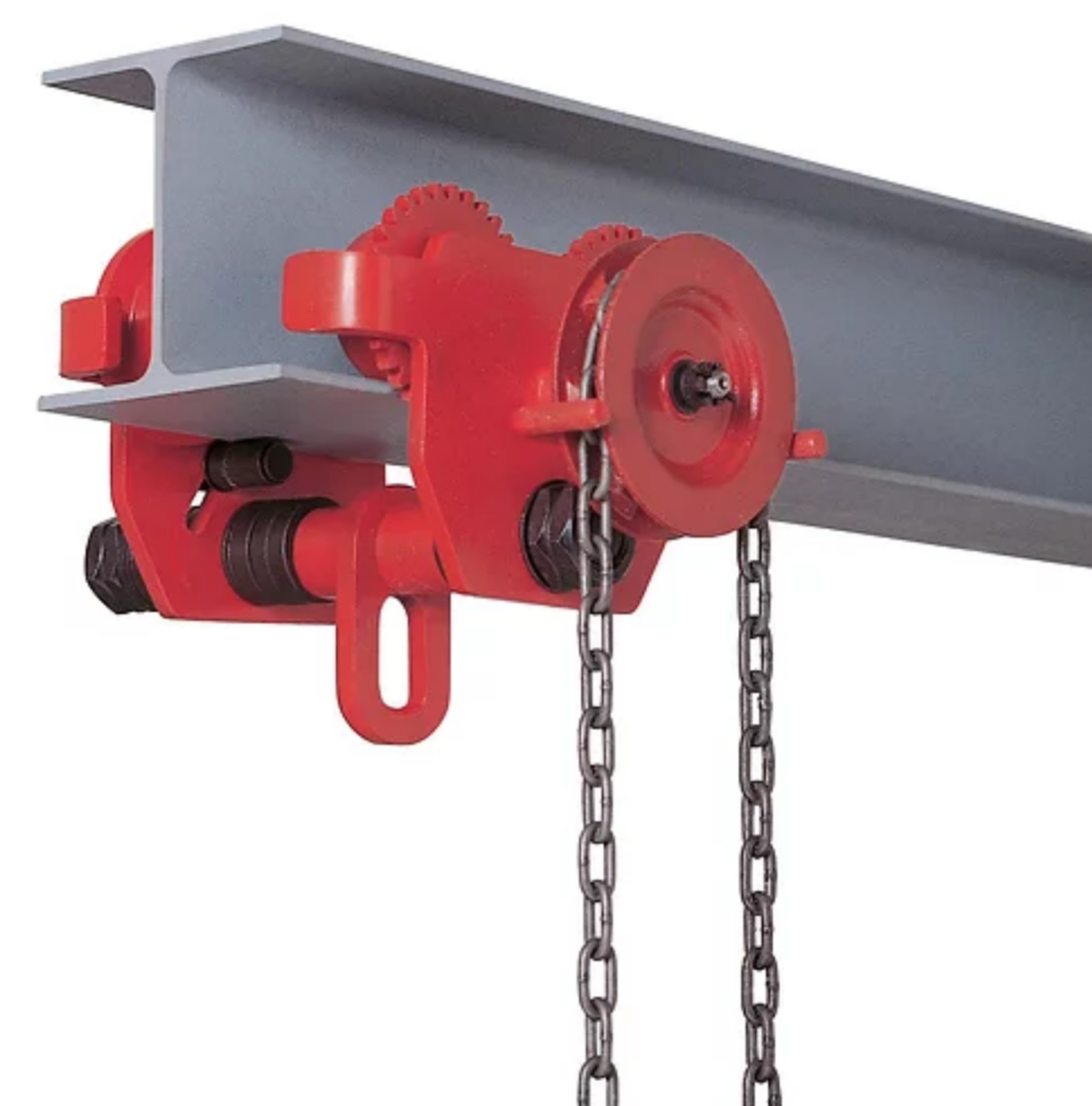

Lightweight and fully adjustable, this robust geared girder trolley suits varying flange widths of up to 350mm along R.S.J's and universal beams, allowing for easy manual handling of heavy loads. Offering greater load control, this geared trolley provides additional flexibility and user safety.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Zinc plated hand chains
- Fitted with anti-drop plates
- Durable baked enamel paint protection
- Precision sealed ball bearing trolley wheels
- Super quick adjustments to suit any monorail
Industries
- Automotive
- Civil
- Construction
- Engineering
- Entertainment
- Hire
- Lifts/Elevators
- Manufacturing
- Mining
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | MIN. RADIUS CURVE | HAND CHAIN SIZE | ADJUSTABLE BEAM WIDTH | NET WEIGHT |
|---|---|---|---|---|---|
| GTOZ010 | 1.0t | 1.0m | 5mm x 25 | 64mm – 210mm | 10.4kg |
| GTOZ020 | 2.0t | 1.1m | 5mm x 25 | 88mm – 210mm | 16.9kg |
| GTOZ030 | 3.0t | 1.3m | 5mm x 25 | 100mm – 305mm | 27.5kg |
| GTOZ050 | 5.0t | 1.4m | 5mm x 25 | 114mm – 305mm | 41.7kg |
| GTOZ100 | 10.0t | 1.7m | 5mm x 25 | 125mm – 305mm | 69.2kg |
| GTOZ200 | 20.0t | 4.7m | 5mm x 25 | 210mm – 330mm | 249kg |

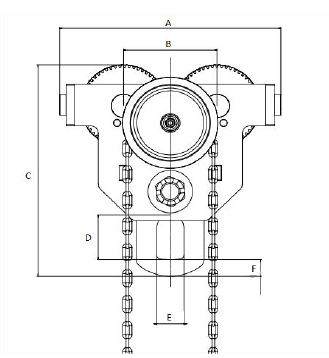

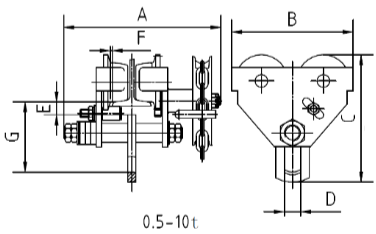

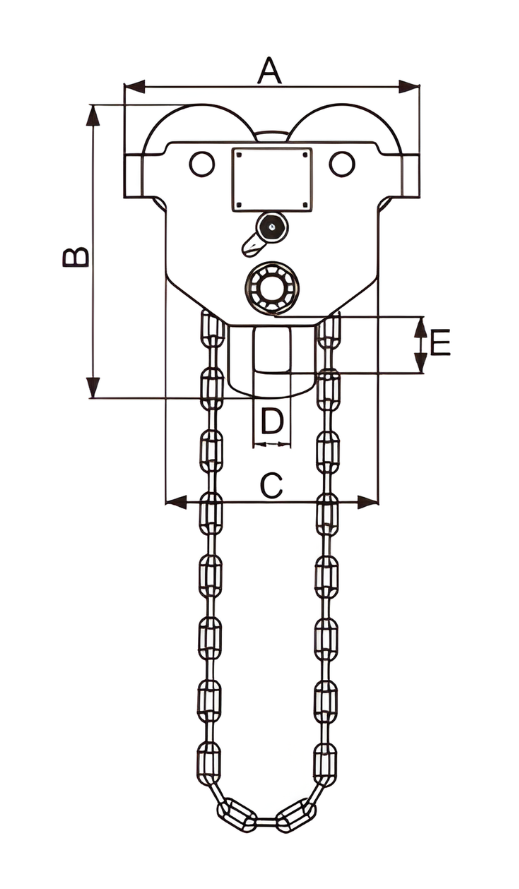

Dimensions
| PRODUCT CODE | W.L.L. | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| GTOZ010 | 1.0t | 212.00mm | 92.00mm | 199.50mm | 34.00mm | 24.00mm | 15.00mm | 210.00mm | 339.50mm |
| GTOZ020 | 2.0t | 256.00mm | 108.00mm | 241.26mm | 47.50mm | 33.00mm | 17.00mm | 210.00mm | 350.20mm |
| GTOZ030 | 3.0t | 308.00mm | 130.00mm | 300.50mm | 58.50mm | 37.00mm | 25.00mm | 305.00mm | 456.00mm |
| GTOZ050 | 5.0t | 346.00mm | 149.00mm | 334.70mm | 71.50mm | 42.00mm | 26.50mm | 305.00mm | 474.00mm |
| GTOZ100 | 10.0t | 406.00mm | 172.00mm | 407.14mm | 86.00mm | 50.00mm | 32.00mm | 305.00mm | 495.00mm |
| GTOZ200 | 20.0t | 650.00mm | 642.00mm | 622.00mm | – | – | – | – | 314.00mm |
