Push Girder Trolley
Push Girder Trolley
- Brand: OzBlok
- Capacity: 0.5t to 10t
This light weight, adjustable all steel push girder trolley provides a safe and simple suspension point that can be moved along variable width R.S.J's and universal beams in a controlled manner, providing added flexibility and safety when moving heavy loads horizontally.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Anti-derailment plates
- Built in bumper guards
- Drop forged screw type adjuster
- Precision ball bearing trolley wheels
- Durable baked enamel paint protection
Industries
- Automotive
- Civil
- Construction
- Engineering
- Entertainment
- Hire
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Ports
- Warehousing
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT | MIN. RADIUS CURVE | ADJUSTABLE BEAM WIDTH |
|---|---|---|---|---|
| PTOZ005 | 0.5t | 5.70kg | 0.6m | 50mm – 210mm |
| PTOZ010 | 1.0t | 7.95kg | 0.8m | 64mm – 210mm |
| PTOZ010-BLK | 1.0t | 7.95kg | 0.8m | 64mm – 210mm |
| PTOZ020 | 2.0t | 14.00kg | 1.1m | 88mm – 210mm |
| PTOZ030 | 3.0t | 24.20kg | 1.4m | 100mm – 305mm |
| PTOZ050 | 5.0t | 36.00kg | 1.0m | 114mm – 305mm |
| PTOZ100 | 10.0t | 64.90kg | 1.3m | 125mm – 305mm |
| PTOZSS010 | 1.0t | 12.00kg | 1.0m | 64mm – 203mm |
| PTOZSS020 | 2.0t | 19.50kg | 1.1m | 88mm – 203mm |

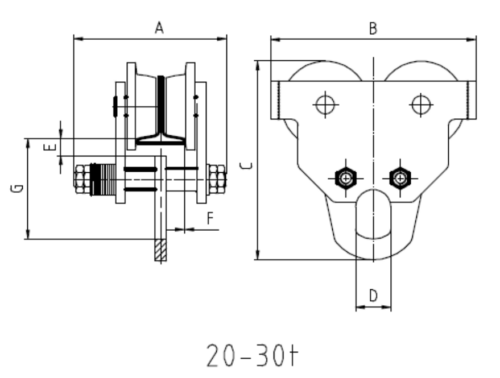

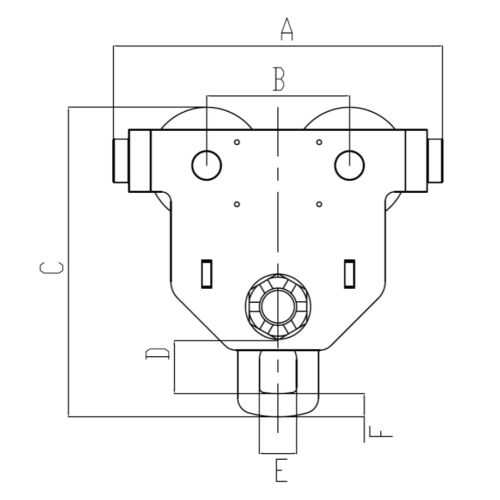

Dimensions
| PRODUCT CODE | W.L.L. | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| PTOZ005 | 0.5t | 204.00mm | 90.00mm | 186.00mm | 34.00mm | 22.00mm | 12.00mm | 210.00mm | 308.00mm |
| PTOZ010 | 1.0t | 212.00mm | 92.00mm | 199.50mm | 34.00mm | 24.00mm | 15.00mm | 210.00mm | 323.00mm |
| PTOZ010-BLK | 1.0t | 212.00mm | 92.00mm | 199.50mm | 34.00mm | 24.00mm | 15.00mm | 210.00mm | 323.00mm |
| PTOZ020 | 2.0t | 256.00mm | 108.00mm | 241.00mm | 47.50mm | 33.00mm | 17.00mm | 210.00mm | 342.00mm |
| PTOZ030 | 3.0t | 308.00mm | 130.00mm | 300.50mm | 58.50mm | 37.00mm | 25.00mm | 305.00mm | 456.00mm |
| PTOZ050 | 5.0t | 346.00mm | 149.00mm | 334.59mm | 71.50mm | 42.00mm | 26.50mm | 305.00mm | 472.00mm |
| PTOZ100 | 10.0t | 406.00mm | 172.00mm | 407.14mm | 86.00mm | 50.00mm | 32.00mm | 305.00mm | 489.00mm |
| PTOZSS010 | 1.0t | 331.00mm | 246.00mm | 229.00mm | – | – | – | – | 127.00mm |
| PTOZSS020 | 2.0t | 350.00mm | 276.00mm | 268.00mm | – | – | – | – | 150.00mm |
