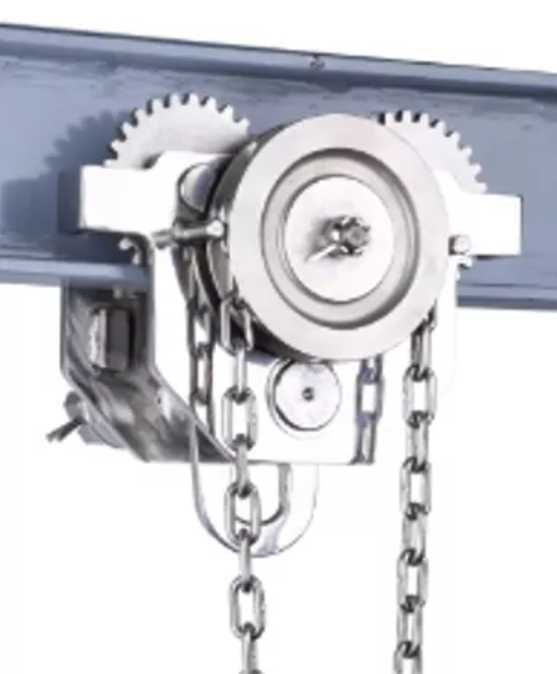

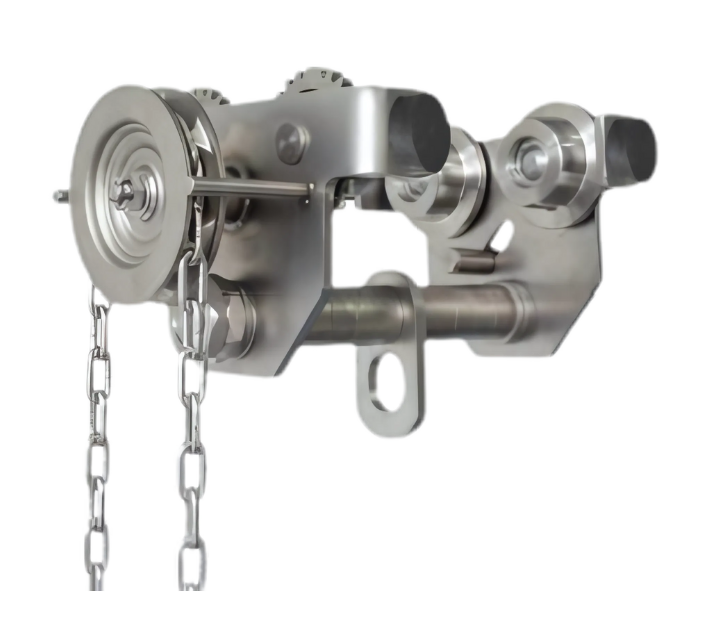

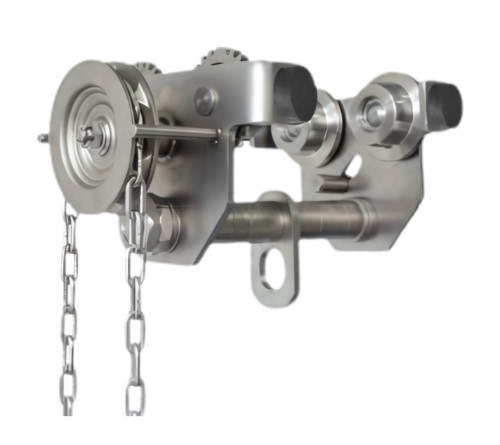

Stainless Steel Geared Girder Trolley
- Brand: OzBlok
- Capacity: 1.0t to 5.0t
Ideal for lifting applications in humid and acidic environments, this rugged lightweight industrial grade geared girder trolley is made from 304 grade stainless steel for optimal rust and corrosion resistance. Designed to facilitate the horizontal traverse of a hoist along a girder, and with built in side plates and trolley wheel guards, this trolley provides optimal user safety whilst meeting the most demanding lifting applications.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Anti-derailment side plates
- 304 grade stainless steel construction
- Suitable for use with manual or powered hoist
- Independent hanger for attachment of chain blocks
- Precision sealed machined ball bearing trolley wheels
Industries
- Food industry
- Manufacturing
- Marine
- Mining
- Pharmaceutical Production
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | NET WEIGHT | MIN. RADIUS CURVE | ADJUSTABLE BEAM WIDTH |
---|---|---|---|---|
GTOZSS010 | 1.0t | 18kg | 1.0m | 64mm – 210mm |
GTOZSS020 | 2.0t | 27kg | 1.1m | 88mm – 210mm |
GTOZSS030 | 3.0t | 43kg | 1.3m | 102mm – 305mm |
GTOZSS050 | 5.0t | 60kg | 1.4m | 108mm – 305mm |

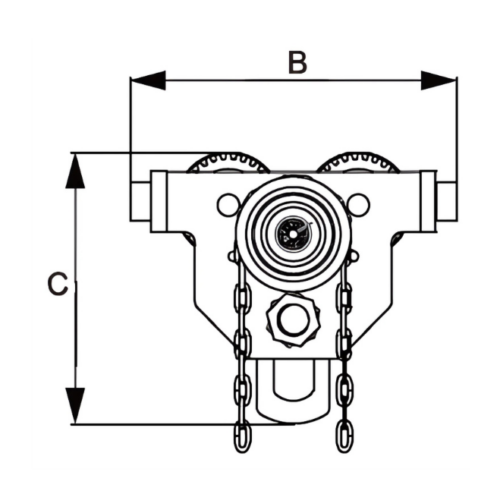

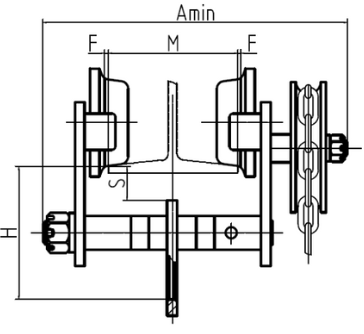

Dimensions
PRODUCT CODE | W.L.L. | A | B | C | H |
---|---|---|---|---|---|
GTOZSS010 | 1.0t | 380mm | 260mm | 239mm | 135mm |
GTOZSS020 | 2.0t | 390mm | 300mm | 286mm | 161mm |
GTOZSS030 | 3.0t | 413mm | 345mm | 336mm | 188mm |
GTOZSS050 | 5.0t | 430mm | 395mm | 393mm | 220mm |
