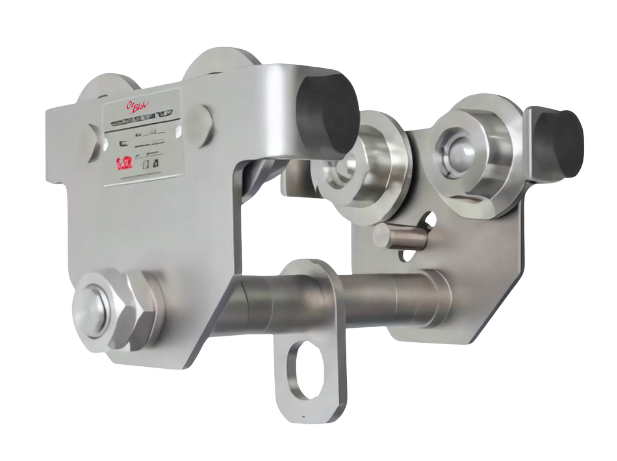

Stainless Steel Push Girder Trolley
Stainless Steel Push Girder Trolley
- Brand: OzBlok
- Capacity: 0.5t to 5.0t
Suitable for humid and acidic environments, this robust lightweight industrial grade push girder trolley is made from 304 grade stainless steel for optimal rust and corrosion resistance. With the same characteristics as an all steel girder trolley, this unit meets the most demanding lifting application with ease.
- Australian Standard: AS/NZS1418.2
Features
Industries
Documents
Features
- Anti-derailment side plates
- Precision ball bearing trolley wheels
- 304 grade stainless steel construction
- Suitable for use with a manual or powered hoist
- Adjustable to suit a variety of beam flange widths
Industries
- Food Industry
- Manufacturing
- Marine
- Mining
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT | MIN. RADIUS CURVE | ADJUSTABLE BEAM WIDTH |
|---|---|---|---|---|
| PTOZSS005 | 0.5t | 8.5kg | 0.8m | 50mm – 152mm |
| PTOZSS010 | 1.0t | 12.0kg | 1.0m | 64mm – 203mm |
| PTOZSS020 | 2.0t | 19.5kg | 1.1m | 88mm – 203mm |
| PTOZSS030 | 3.0t | 29.0kg | 1.3m | 100mm – 203mm |
| PTOZSS050 | 5.0t | 44.0kg | 1.4m | 114mm – 203mm |

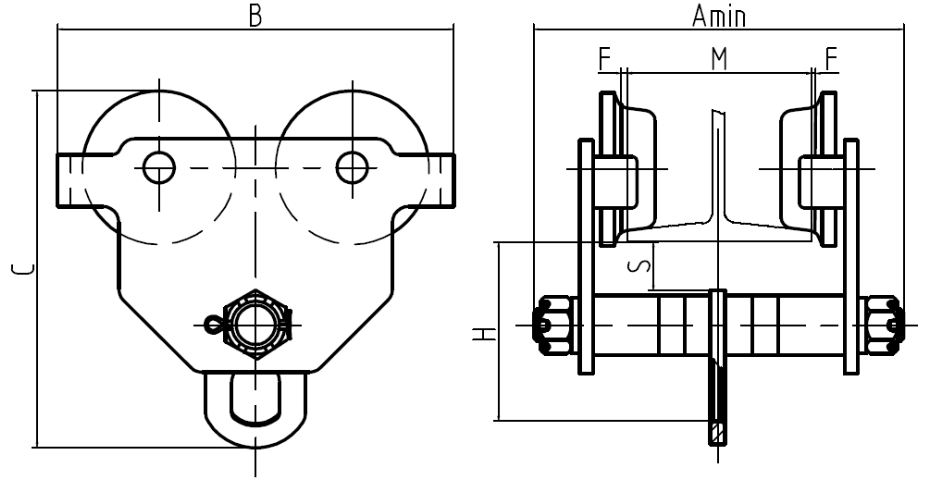

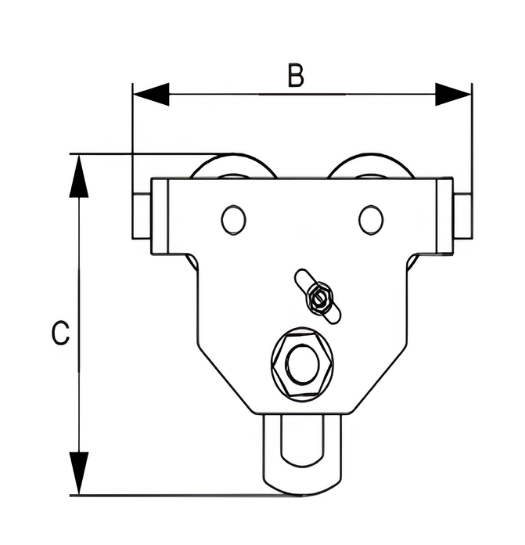

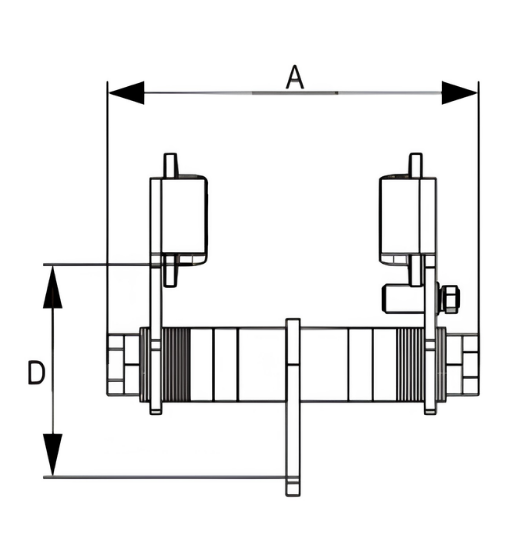

Dimensions
| PRODUCT CODE | W.L.L. | A | B | C | H |
|---|---|---|---|---|---|
| PTOZSS005 | 0.5t | 260mm | 199mm | 193mm | 106mm |
| PTOZSS010 | 1.0t | 331mm | 246mm | 229mm | 127mm |
| PTOOZSS020 | 2.0t | 350mm | 276mm | 268mm | 150mm |
| PTOZSS030 | 3.0t | 370mm | 332mm | 316mm | 173mm |
| PTOZSS050 | 5.0t | 385mm | 377mm | 360mm | 198mm |
