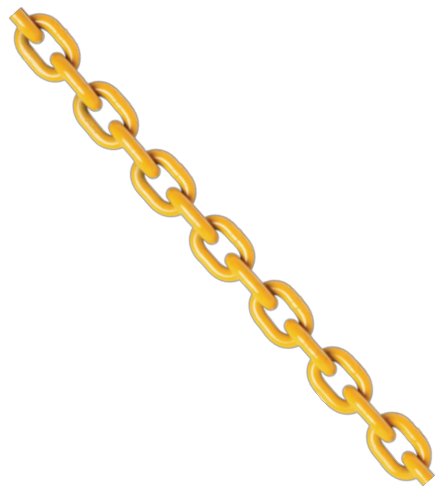

Grade 80 Chain – Yellow
- Capacity: 1.12t to 21.6t
Strong and durable, yellow Grade 80 chain is ideal for industrial lifting applications. Made from hardened and tempered alloy steel, this chain is highly resistant to impact, and is a safe and reliable means of lifting and moving heavy loads.
- Australian Standard: AS2321
Features
Industries
Documents
Features
- 4:1 safety factor
- Marked with chain grade
- Constructed from hardened, tempered alloy steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | UNIT | SIZE | W.L.L. | LENGTH | NET WEIGHT |
---|---|---|---|---|---|
AL101506 | Full Drum | 6.3mm | 1.12t | 600m | 500kg |
AL101507 | Full Drum | 7.1mm | 1.50t | 500m | 500kg |
AL101508 | Full Drum | 8.0mm | 2.00t | 350m | 500kg |
AL101510 | Full Drum | 10.0mm | 3.20t | 225m | 500kg |
AL101513 | Full Drum | 13.0mm | 5.30t | 135m | 500kg |
AL101516 | Full Drum | 16.0mm | 8.00t | 89m | 500kg |
AL101520 | Full Drum | 20.0mm | 12.50t | 60m | 500kg |
AL101522 | Full Drum | 22.0mm | 15.00t | 50m | 500kg |
AL101526 | Full Drum | 26.0mm | 21.20t | 40m | 760kg |
AL101532 | Full Drum | 32.0mm | 31.50t | 30m | 559kg |
AL101406 | Cut Length | 6.3mm | 1.12t | 1m | 0.84kg/m |
AL101407 | Cut Length | 7.1mm | 1.50t | 1m | 1.14kg/m |
AL101408 | Cut Length | 8.0mm | 2.00t | 1m | 1.41kg/m |
AL101410 | Cut Length | 10.0mm | 3.20t | 1m | 2.21kg/m |
AL101413 | Cut Length | 13.0mm | 5.30t | 1m | 3.76kg/m |
AL101416 | Cut Length | 16.0mm | 8.00t | 1m | 5.64kg/m |
AL101420 | Cut Length | 20.0mm | 12.50t | 1m | 8.60kg/m |
AL101422 | Cut Length | 22.0mm | 15.00t | 1m | 10.70kg/m |
AL101426 | Cut Length | 26.0mm | 21.20t | 1m | 14.80kg/m |
AL101432 | Cut Length | 32.0mm | 31.50t | 1m | 21.60kg/m |
Dimensions
PRODUCT CODE | UNIT | A | B | C |
---|---|---|---|---|
AL101506 | Full Drum | 21mm | 18mm | 6mm |
AL101507 | Full Drum | 24mm | 21mm | 7mm |
AL101508 | Full Drum | 28mm | 24mm | 8mm |
AL101510 | Full Drum | 35mm | 30mm | 10mm |
AL101513 | Full Drum | 46mm | 39mm | 13mm |
AL101516 | Full Drum | 57mm | 48mm | 16mm |
AL101520 | Full Drum | 70mm | 60mm | 20mm |
AL101522 | Full Drum | 78mm | 66mm | 22mm |
AL101526 | Full Drum | 91mm | 78mm | 26mm |
AL101532 | Full Drum | 115mm | 96mm | 32mm |
AL101406 | Cut Length | 21mm | 18mm | 6mm |
AL101407 | Cut Length | 24mm | 21mm | 7mm |
AL101408 | Cut Length | 28mm | 24mm | 8mm |
AL101410 | Cut Length | 35mm | 30mm | 10mm |
AL101413 | Cut Length | 46mm | 39mm | 13mm |
AL101416 | Cut Length | 57mm | 48mm | 16mm |
AL101420 | Cut Length | 70mm | 60mm | 20mm |
AL101422 | Cut Length | 78mm | 66mm | 22mm |
AL101426 | Cut Length | 91mm | 78mm | 26mm |
AL101432 | Cut Length | 115mm | 96mm | 32mm |
