G80 Excavator Hook
G80 Excavator Hook
- Brand: Excel
- Capacity: 0.75t to 15.0t

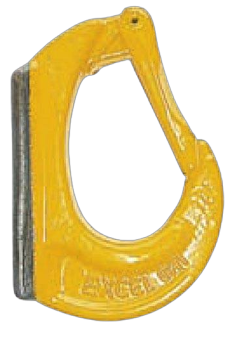

Robust and versatile, our grade 8 excavator hook attachment provides a reliable connection point for lifting for with excavators. With a large surface chamfer, the hook is safe and simple to weld directly onto booms of buckets or crane loaders, and may also be welded to create a lifting beam. To ensure safe operation and to prevent accidental unhooking, each hook is fitted with a safety latch, and is supplied with welding instructions.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested to 4 x W.L.L.
- Constructed from Grade 8 alloy steel
- Quenched and tempered with a yellow powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | NET WEIGHT |
|---|---|---|
| EEH075 | 0.75t | 0.24kg |
| EEH1 | 1.00t | 0.52kg |
| EEH2 | 2.00t | 0.70kg |
| EEH3 | 3.00t | 1.15kg |
| EEH4 | 4.00t | 1.66kg |
| EEH5 | 5.00t | 2.36kg |
| EEH8 | 8.00t | 3.32kg |
| EEH10 | 10.00t | 6.44kg |
| EEH15 | 15.00t | 9.70kg |

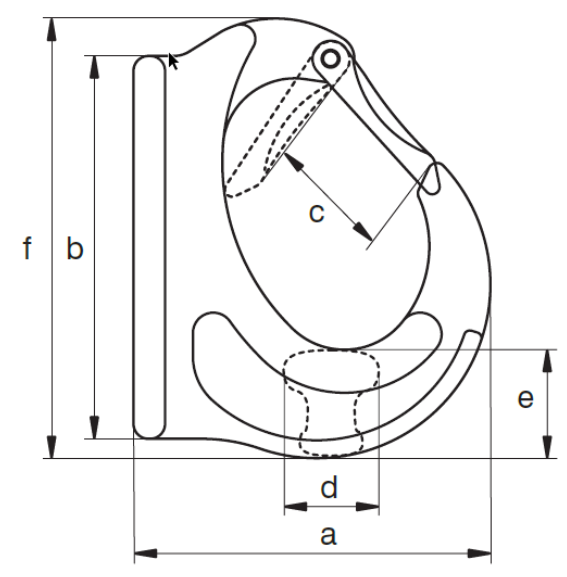

Dimensions
| PRODUCT CODE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| EEH075 | 59mm | 71mm | 22mm | 14mm | 21mm | 82mm | 20mm |
| EEH1 | 72mm | 78mm | 25mm | 19mm | 28mm | 108mm | 26mm |
| EEH2 | 92mm | 85mm | 33mm | 20mm | 28mm | 114mm | 34mm |
| EEH3 | 105mm | 104mm | 33mm | 26mm | 32mm | 129mm | 34mm |
| EEH4 | 121mm | 130mm | 38mm | 27mm | 37mm | 148mm | 38mm |
| EEH5 | 138mm | 150mm | 43mm | 28mm | 46mm | 167mm | 44mm |
| EEH8 | 145mm | 148mm | 43mm | 42mm | 53mm | 173mm | 51mm |
| EEH10 | 178mm | 197mm | 60mm | 47mm | 61mm | 225mm | 67mm |
| EEH15 | 185mm | 226mm | 65mm | 62mm | 70mm | 251mm | 80mm |
