Heavy Duty Rail Lifting Clamp
Heavy Duty Rail Lifting Clamp
- Capacity: 14.0t

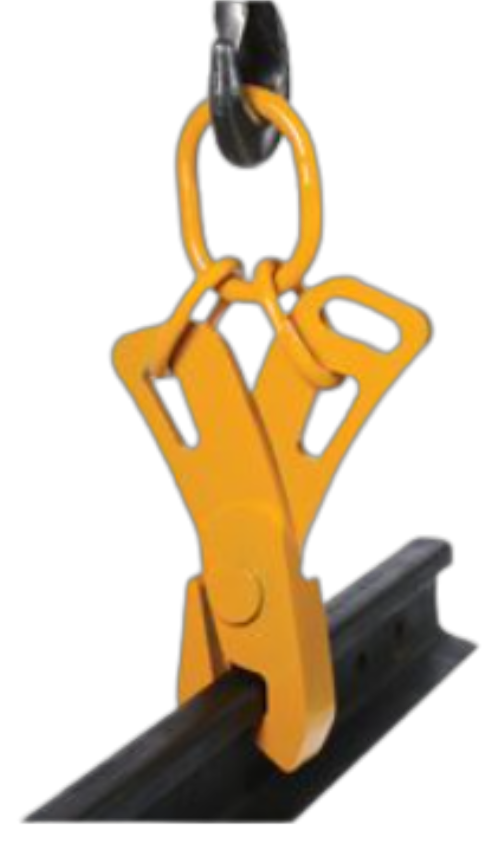

Robust and reliable, our heavy duty rail lifting clamp is designed to lift and manoeuvre heavy rail tracks and suits sizes from 40kg to 70 kg. With a strong, secure jaw that can be locked in an open or closed position, this rail clamp ensures safe and efficient lifting.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Lockable jaw
- Powder coated finish
- Constructed from heavy duty steel
Industries
- Construction
- Engineering
- Infrastructure
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| AWPRT5T | 5t | 35kg |
| AWPRT14T | 14t | 65kg |
Dimensions
| PRODUCT CODE | A | B | C | D |
|---|---|---|---|---|
| AWPRT5T | 110mm | 200mm | 800mm | 80mm |
| AWPRT14T | 145mm | 310mm | 930mm | 100mm |
