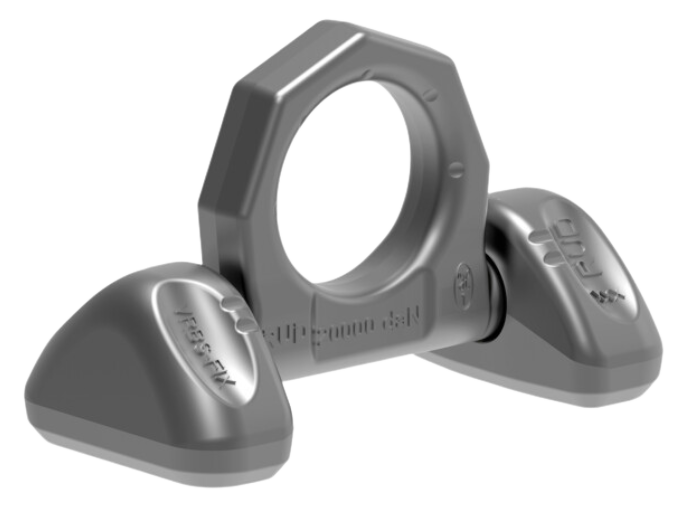

Lashing – Weld-On Load Ring
Lashing – Weld-On Load Ring
- Brand: RUD
- Capacity: 8000 daN to 32000daN
Features
Industries
Documents
Features
- Safety factor of 2:1
- 360° rotating lifting point
- Full working load in all directions
- Adjustable bracket in force direction
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | LASHING CAPACITY | SIZE – METRIC | NET WEIGHT |
|---|---|---|---|
| RDLVLBG7904778 | 16000daN | M36 | 6.0kg |

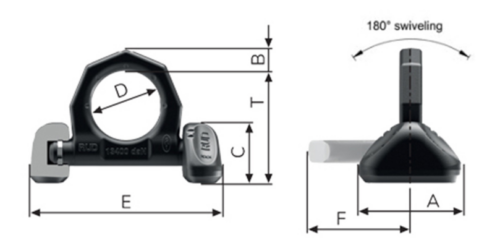

Dimensions
| PRODUCT CODE | A | B | T | C | D | E | F | G | H | I | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RDLVLBG7904778 | 77.0mm | 122.0mm | 197.0mm | 82.0mm | 70.0mm | 97.0mm | 26.5mm | 77.0mm | 63.0mm | 205.0mm | 110.0mm | 140.0mm | M36mm | 87mm |
