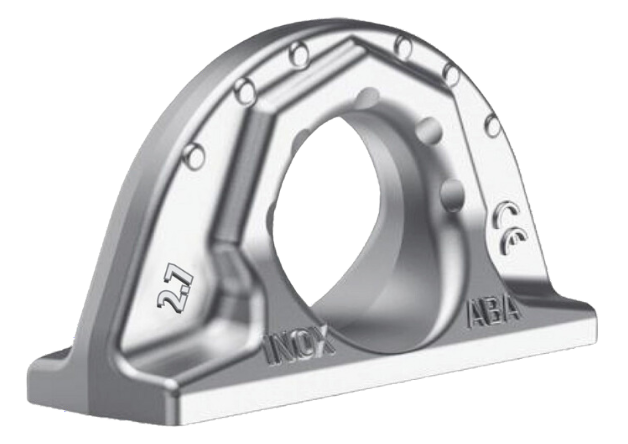

Stainless Steel Lifting Point for Welding
Stainless Steel Lifting Point for Welding
- Brand: RUD
- Capacity: 0.8t to 2.7t
Features
Industries
Documents
Features
- Safety factor of 4:1
- Full working load in all directions
- Closed and circumferential fillet weld
- Manufactured in Germany from Duplex Stainless Steel 1.4462
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | NET WEIGHT |
|---|---|---|
| RD7912396 | 0.8t | 0.20kg |
| RD7912397 | 1.6t | 0.45kg |
| RD7912398 | 2.7t | 1.10kg |
Dimensions
| PRODUCT CODE | A | B | T | C | D | E | F |
|---|---|---|---|---|---|---|---|
| RD7912396 | 22.0mm | 12.0mm | 38.0mm | 70.0mm | 32.0mm | 12.0mm | 50.0mm |
| RD7912397 | 30.0mm | 16.0mm | 41.5mm | 100.0mm | 35.0mm | 16.0mm | 57.0mm |
| RD7912398 | 41.0mm | 23.0mm | 59.0mm | 137.0mm | 50.0mm | 21.0mm | 80.0mm |
