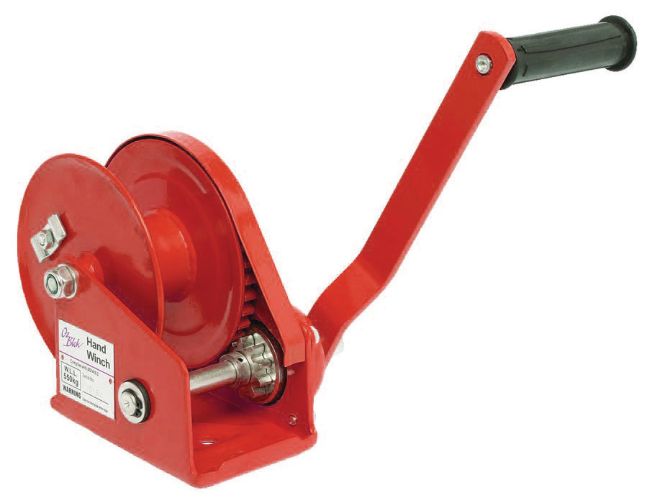

Load Brake Winch – Powder Coated
Load Brake Winch – Powder Coated
- Brand: OzBlok
- Capacity: Pulling 0.275t to 0.600t Lifting W.L.L. and 0.545t to 1.20t Pulling W.L.L.
Compact, lightweight rugged construction and powder coated for corrosion resistance, this heavy duty hand winch is ideal for lifting and pulling application, even in confined spaces. Multiple convenient fixing points along the base and comfort grip handle, allows for smooth operation and user comfort.
- Australian Standard: AS1418.2
Features
Industries
Documents
Features
- Corrosion resistant baked enamel finish
- Fully enclosed gear train
- Convenient fixing points in the base
- Automatic braking system
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | W.L.L. PULLING | GEAR RATIO | NET WEIGHT |
|---|---|---|---|---|
| BWOZ0545 | 270kg | 545kg | 4:2:1 | 3.7kg |
| BWOZ0820 | 410kg | 820kg | 5:01 | 7.7kg |
| BWOZ1200 | 600kg | 1200kg | 10:01 | 10.1kg |
Dimensions
| PRODUCT CODE | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| BWOZ0545 | 156mm | 184mm | 88mm | 210mm | 27mm | 272mm | 51mm | 109mm |
| BWOZ0820 | 203mm | 256mm | 107mm | 319mm | 27mm | 283mm | 60mm | 109mm |
| BWOZ1200 | 216mm | 293mm | 127mm | 319mm | 27mm | 305mm | 63mm | 109mm |
