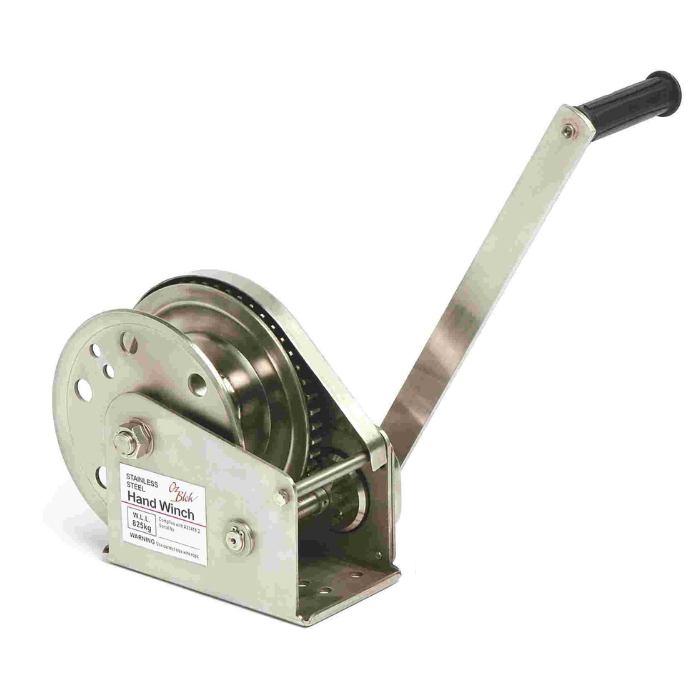

Load Brake Winch – Stainless Steel
- Brand: OzBlok
- Capacity: 0.275t to 0.600t Lifting W.L.L. and 0.545t to 1.20t Pulling W.L.L.
Versatile and compact, this robust, lightweight stainless steel hand winch is ideal for a range of lifting and pulling applications. Constructed from corrosion resistant 304 stainless steel, this winch is perfect for use outdoors and in corrosive environments.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Grade 304 stainless steel construction
- Automatic braking system
- Fully enclosed gear train
- Convenient fixing points along the base
- Comfort grip handle
Industries
- Food Manufacturing
- Marine
- Pharmaceutical
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. LIFTING | W.L.L. PULLING | GEAR RATIO | NET WEIGHT |
---|---|---|---|---|
BWOZSS0545 | 270kg | 545kg | 4:2:1 | 3.7kg |
BWOZSS0820 | 410kg | 820kg | 5:01 | 7.7kg |
BWOZSS1200 | 600kg | 1200kg | 10:01 | 10.1kg |

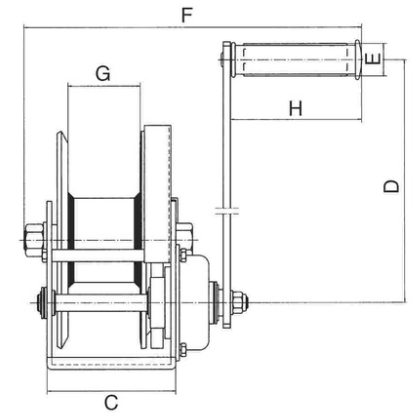

Dimensions
PRODUCT CODE | A | B | C | D | E | F | G | H |
---|---|---|---|---|---|---|---|---|
BWOZSS0545 | 156mm | 184mm | 88mm | 210mm | 27mm | 272mm | 51mm | 109mm |
BWOZSS0820 | 203mm | 256mm | 107mm | 319mm | 27mm | 283mm | 60mm | 109mm |
BWOZSS1200 | 216mm | 293mm | 127mm | 319mm | 27mm | 305mm | 63mm | 109mm |
