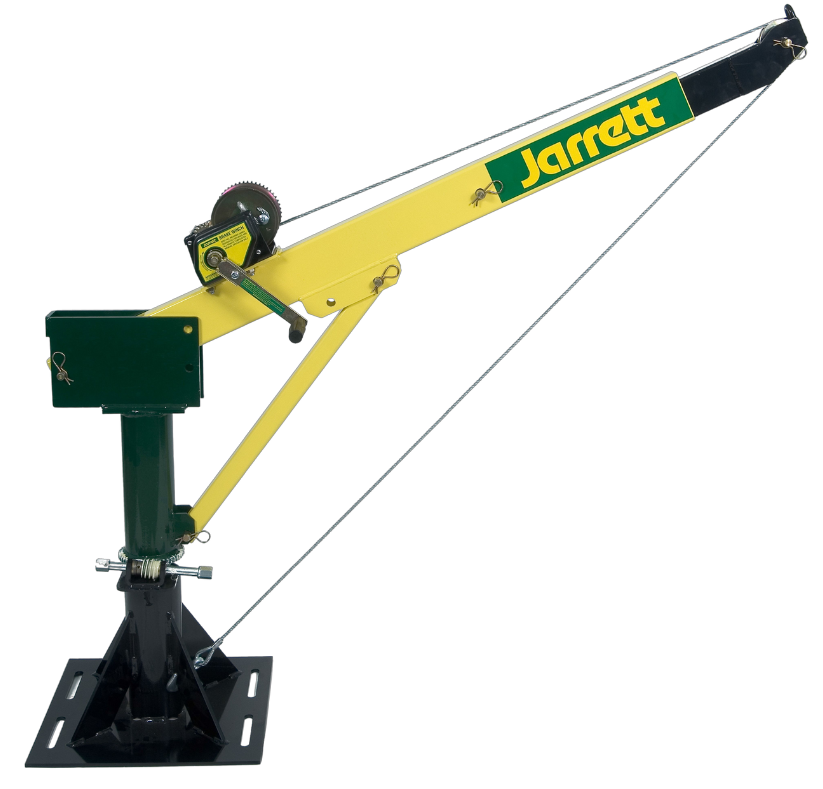

Backsaver Crane
Backsaver Crane
- Brand: Jarrett
- Capacity: 0.3t to 0.5t
Safe and efficient, this general purpose Backsaver crane is suited for a variety of applications in industrial, marine, engineering, and transport environments. Fitted with 360-degree mechanical slewing which allows the boom to be rotated 360 degrees, eliminating the danger of the crane boom swinging out of control when the load is lifted, ensuring user safety and efficiency.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Rotating boom
- Worm drive gear
- Powder coated finish
- Manual brake winch or electric winch
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | FINISH | GEAR RATIO | DRUM WIDTH | DRUM Ø | FLANGE Ø | CABLE CAPACITY | NET WEIGHT |
|---|---|---|---|---|---|---|---|---|
| WINF12643 | 300kg | Yellow | 5:1 | 52mm | 50mm | 130mm | 15m x Ø5mm | 76kg |
| WINF12643G | 300kg | Galvanised | 5:1 | 52mm | 50mm | 130mm | 15m x Ø5mm | 76kg |
| WINF19001CW | 500kg | White | 10:1 | 52mm | 50mm | 130mm | 12m x Ø6mm | 76kg |
| WINF19001 | 500kg | Yellow | 10:1 | 52mm | 50mm | 130mm | 12m x Ø6mm | 76kg |

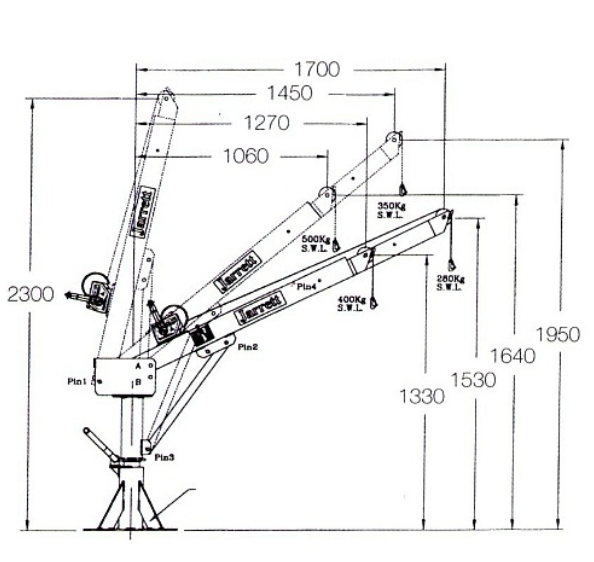

Dimensions
| PRODUCT CODE | S.W.L. | MAX EXTENDED HEIGHT VERTICAL | MAX EXTENDED HEIGHT HORIZONTAL | MIN EXTENDED HEIGHT VERTICAL | MIN EXTENDED HEIGHT HORIZONTAL | MAX RETRACTED HEIGHT VERTICAL | MAX RETRACTED HEIGHT HORIZONTAL | MIN RETRACTED HEIGHT VERTICAL | MIN RETRACTED HEIGHT HORIZONTAL |
|---|---|---|---|---|---|---|---|---|---|
| WINF12643 | 200kg | 1960 | 1526 | – | – | – | – | – | – |
| WINF12643 | 150kg | – | – | 1460 | 1770 | – | – | – | – |
| WINF12643 | 300kg | – | – | – | – | 1687 | 1126 | – | – |
| WINF12643 | 250kg | – | – | – | – | – | – | 1300 | 1330 |
| WINF12643G | 200kg | 1960 | 1526 | – | – | – | – | – | – |
| WINF12643G | 150kg | – | – | 1460 | 1770 | – | – | – | – |
| WINF12643G | 300kg | – | – | – | – | 1687 | 1126 | – | – |
| WINF12643G | 250kg | – | – | – | – | – | – | 1300 | 1330 |
| WINF19001CW | 350kg | 1950 | 1450 | – | – | – | – | – | – |
| WINF19001CW | 280kg | – | – | 1530 | 1700 | – | – | – | – |
| WINF19001CW | 500kg | – | – | – | – | 1640 | 1060 | – | – |
| WINF19001CW | 400kg | – | – | – | – | – | – | 1330 | 1270 |
| WINF19001 | 350kg | 1950 | 1450 | – | – | – | – | – | – |
| WINF19001 | 280kg | – | – | 1530 | 1700 | – | – | – | – |
| WINF19001 | 500kg | – | – | – | – | 1640 | 1060 | – | – |
| WINF19001 | 400kg | – | – | – | – | – | – | 1330 | 1270 |
