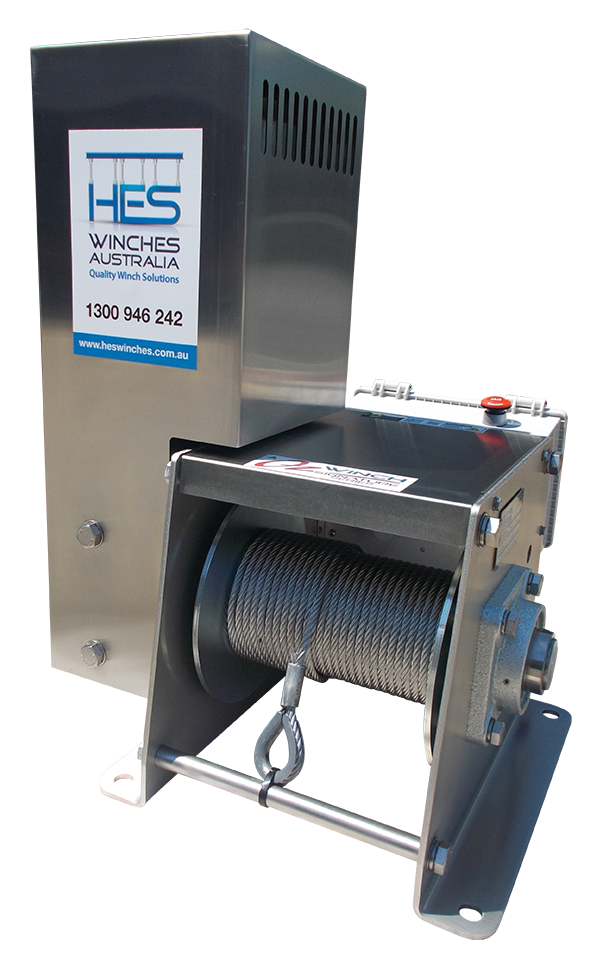

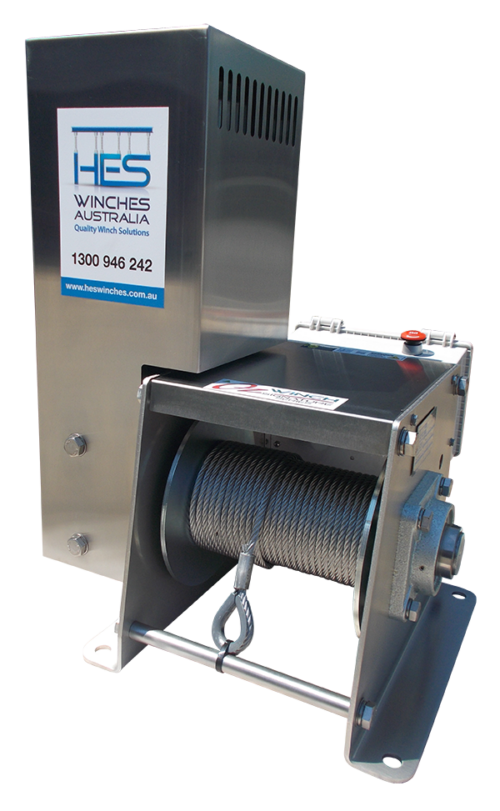

Oz Signature Series II Slipway Winches
Oz Signature Series II Slipway Winches
- Brand: HES Winches
- Capacity: 1.0t
Manufactured in Australia, this compact and robust winch has been designed for a variety of hauling applications and is ideally suited as a slipway winch. With a 316 stainless steel frame, guard, motor cover and bearings for superior outdoor protection, an AC motor for maximum torque and thermal overload protection, this winch offers superior outdoor protection and longevity. With quite, safe, maintenance free operation and pendant control, this winch provides easy load management and optimal user safety.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Thermal overload protection
- AC Motor for maximum torque
- Available in 240V single phase and 415V three phase
- Constructed from corrosion resistant 316 Stainless Steel
Industries
- Construction
- Engineering
- Infrastructure
- Marine
- Ports
Specifications

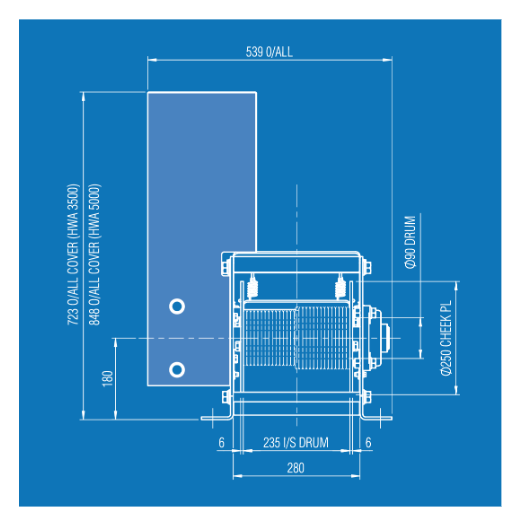

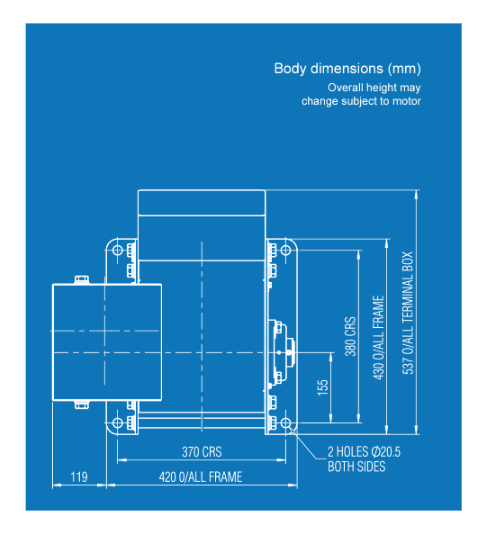

Dimensions
Specifications
| PRODUCT CODE | W.L.L. PULLING | AVG SPEED | STANDARD ROPE | VOLTAGE | MOTOR | NET WEIGHT |
|---|---|---|---|---|---|---|
| HWA3500SS.1 | 1.0t | 5 m/min | 8mm x 35m | 1-Ph 240v | 1.1kW | 94kg |
| HWA3500SS.2 | 1.0t | 5 m/min | 8mm x 35m | 3-Ph 415v | 1.1kW | 94kg |
| HWA5000SS.1 | 1.4t | 5 m/min | 8mm x 35m | 1-Ph 240v | 1.7kW | 100kg |
| HWA5000SS.2 | 1.4t | 5 m/min | 8mm x 35m | 3-Ph 415v | 1.5kW | 100kg |
