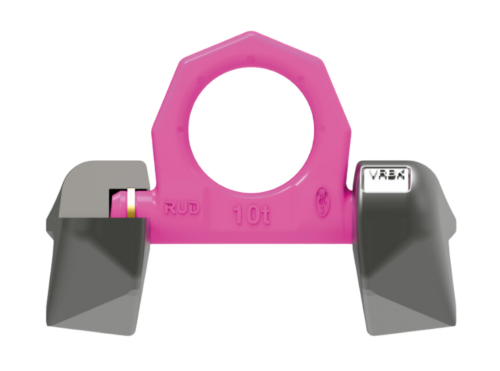

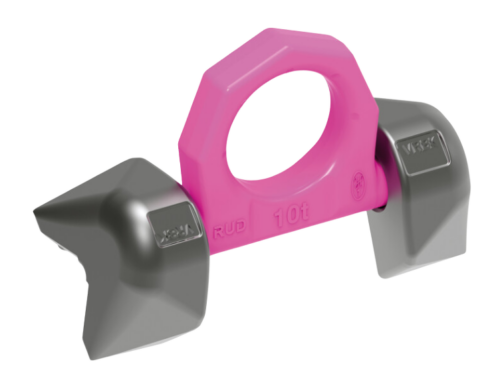

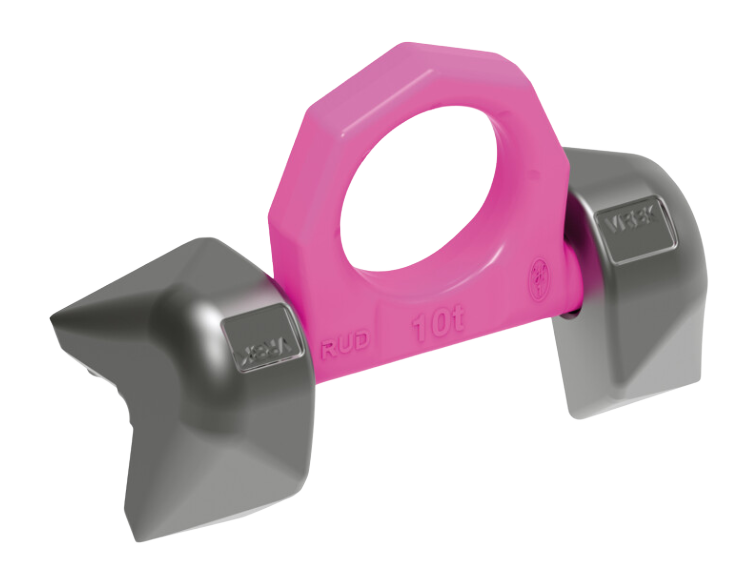

Load Ring for Welding – Circumferential Weld Seam
Load Ring for Welding – Circumferential Weld Seam
- Brand: RUD
- Capacity: 4.0t to 50.0t
Features
Industries
Documents
Features
- Safety factor of 4:1
- Endless HY weld seam
- Manufactured from forged steel

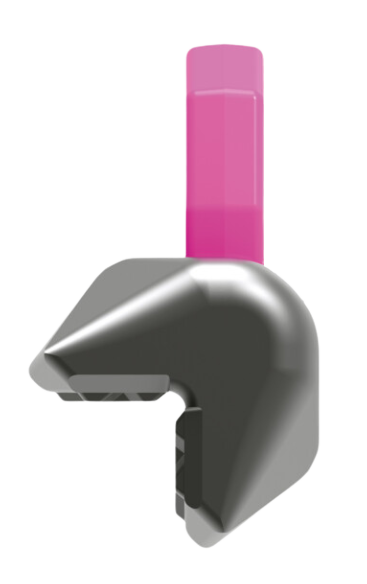

- Suitable for welding on 90° corners
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | NET WEIGHT |
|---|---|---|
| RUD7902149 | 4.0t | 1.05kg |
| RUD7902150 | 6.7t | 2.16kg |
| RUD7902256 | 10.0t | 4.40kg |
| RUD7909845 | 16.0t | 9.73kg |
| RUD7906225 | 31.5t | 16.81kg |
| RUD7904653 | 50.0t | 76.35kg |
Dimensions
| PRODUCT CODE | T | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| RUD7902149 | 65mm | 32mm | 14mm | 28mm | 48mm | 141mm | 30mm |
| RUD7902150 | 84mm | 40mm | 20mm | 35mm | 60mm | 181mm | 34mm |
| RUD7902256 | 94mm | 52mm | 22mm | 46mm | 65mm | 212mm | 46mm |
| RUD7909845 | 126mm | 66mm | 27mm | 57mm | 90mm | 284mm | 64mm |
| RUD7906225 | 177mm | 89mm | 42mm | 78mm | 130mm | 394mm | 70mm |
| RUD7904653 | 134mm | 70mm | 303mm | 118mm | 230mm | 626mm | 96mm |
