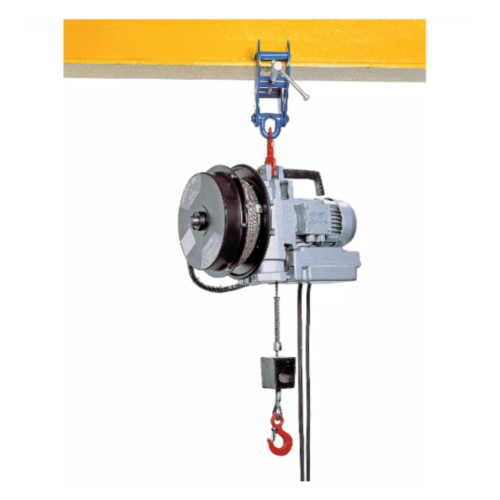

Minifor TR Serie Electric Chain Hoist
Minifor TR Serie Electric Chain Hoist
- Brand: Tractel
- Capacity: 0.10t to 0.50t
Suitable for straight or curved beam applications, this electric chain hoist features a fully enclosed design that ensures the entire mechanism, including the motor, dual brake system, gears, rotating parts, and electrical system, is encased allowing for effective operation even under severe conditions. For applications with limited headroom, special low headroom hoist and trolley configurations are available.
Strong, robust and versatile, the Minifor™ electric chain hoist is compact, light-weight and easy to handle. Unlimited wire rope length and therefore unlimited lifting height. Available in various models. This hoist can also be used for pulling loads in any direction. Operated by a control pendant (2.5 m cable, Up/Down/Emergency Stop), which is supplied as standard. Power supply cable length 1 metre with CEE Form connector. Reliable and easy to use. Wire rope diameter is 6.5mm and is available in different lengths.
The Minifor™ electric chain hoist is powerful and versatile, making it ideal for a range of lifting and pulling applications.
Operation is easy and user-friendly control pendant with standard emergency stop functionality.
Despite its strength, it's compact, lightweight, and easy to handle. Unlike many hoists, the Minifor™ boasts unlimited lifting height thanks to its unlimited wire rope length (available in various diameters and lengths) . It can also pull loads in any direction and is operated by a user-friendly control pendant with standard emergency stop functionality. With a reliable design and a 1-meter power supply cable with CEE form connector, the Minifor™ is ready to tackle your lifting needs.
Features
Industries
Documents
Features
- Overload limiter
- Motor thermal protection
- Full current and shunt limit switches
- Electro-magnetic, self adjusting disc type brake
Industries
- Automotive
- Civil
- Construction
- Engineering
- Entertainment
- Lifts/Elevators
- Marine
- Ports
Specifications

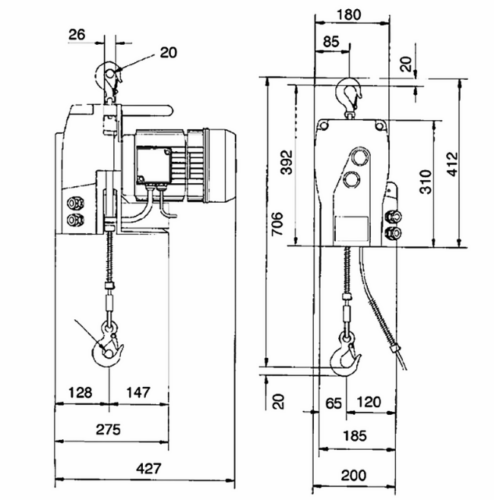

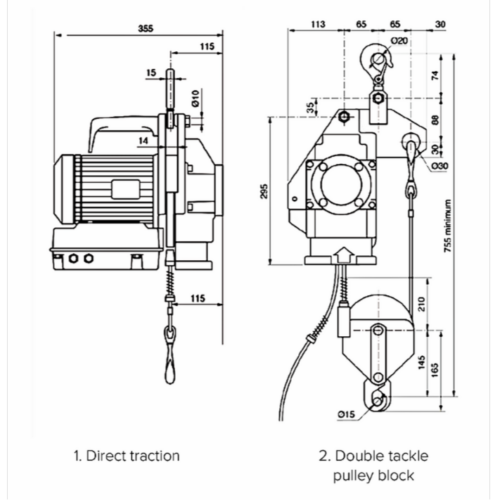

Dimensions
Specifications
| PRODUCT CODE | W.L.L. | PHASE | SPEED | MOTOR | HEADROOM | NET WEIGHT |
|---|---|---|---|---|---|---|
| Three Phase / Single Speed | ||||||
| PHHEH010 | 0.25t | Three Phase | 10 m/min | 0.45kW | 450mm | 28kg |
| PHHEH050 | 0.50t | Three Phase | 7.2 m/min | 0.63kW | 450mm | 31kg |
| PHHEH100 | 1.00t | Three Phase | 4.6 m/min | 0.80kW | 530mm | 37kg |
| PHHEH200 | 2.00t | Three Phase | 2.3 m/min | 0.80kW | 645mm | 49kg |
| PHHEH110 | 1.00t | Three Phase | 7.1 m/min | 1.30kW | 535mm | 42kg |
| PHHEH210 | 2.00t | Three Phase | 6.8 m/min | 2.40kW | 660mm | 80kg |
| PHHEH300 | 3.00t | Three Phase | 4.1 m/min | 2.40kW | 820mm | 99kg |
| PHHEH500 | 5.00t | Three Phase | 2.8 m/min | 2.50kW | 1020mm | 121kg |
| Three Phase / Two Speed | ||||||
| PHHEH020 | 0.25t | Three Phase | 7.2 / 1.8 m/min | 0.32kW / 0.08kW | 450mm | 33kg |
| PHHEH060 | 0.50t | Three Phase | 7.2 / 1.8 m/min | 0.63kW / 0.16kW | 450mm | 36kg |
| PHHEH120 | 1.00t | Three Phase | 4.6 / 1.2 m/min | 0.80kW / 0.20kW | 530mm | 42kg |
| PHHEH220 | 2.00t | Three Phase | 2.3 / 0.6 m/min | 0.80kW / 0.20kW | 645mm | 54kg |
| PHHEH230 | 2.00t | Three Phase | 6.8 / 1.7 m/min | 2.40kW / 0.60kW | 660mm | 96kg |
| PHHEH330 | 3.00t | Three Phase | 4.0 / 1.0 m/min | 2.40kW / 0.60kW | 820mm | 112kg |
| PHHEH530 | 5.00t | Three Phase | 2.8 / 0.7 m/min | 2.40kW / 0.60kW | 1020mm | 146kg |
| Single Phase / Single Speed | ||||||
| PHHEH900 | 0.25t | Single Phase | 5 m/min | 0.25kW | 450mm | 34kg |
| PHHEH907 | 0.50t | Single Phase | 3.6 m/min | 0.32kW | 450mm | 34kg |
| PHHEH911 | 1.00t | Single Phase | 2.3 m/min | 0.40kW | 530mm | 39kg |
| PHHEH920 | 2.00t | Single Phase | 1.1 m/min | 0.40kW | 645mm | 51kg |
