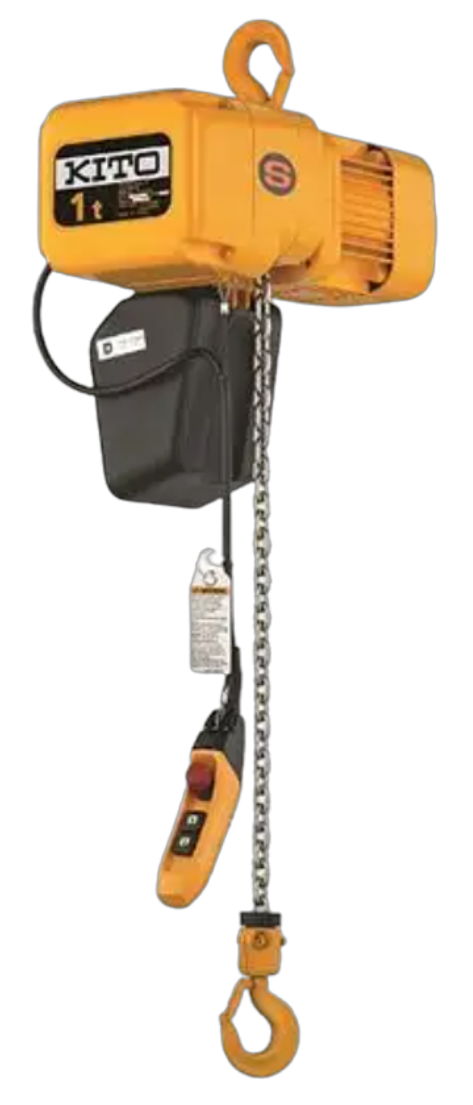

Kito ER2 Dual Speed with Inverter Electric Chain Hoist
Kito ER2 Dual Speed with Inverter Electric Chain Hoist
- Brand: Kito PWB
- Capacity: 0.25t to 20.0t
Compact, lightweight and energy efficient, the Kito ER2 dual speed with inverter electric chain hoist is a durable and versatile lifting solution designed to meet the needs of various industries. With advanced safety features and smooth operation, these electric chain hoists offer exceptional performance and efficiency - even in the most demanding applications. Available in capacities up to 50 tonnes with optional lifting heights.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Motor burnout and overheating protection
- Dual speed inverter with adjustable speed
- Push button control with an emergency stop
- Patented friction clutch for overload protection
- Hook, manual trolley and motorised trolley suspension types available
Industries
- Automotive
- Civil
- Construction
- Engineering
- Entertainment
- Lifts/Elevators
- Manufacturing
- Ports
Specifications

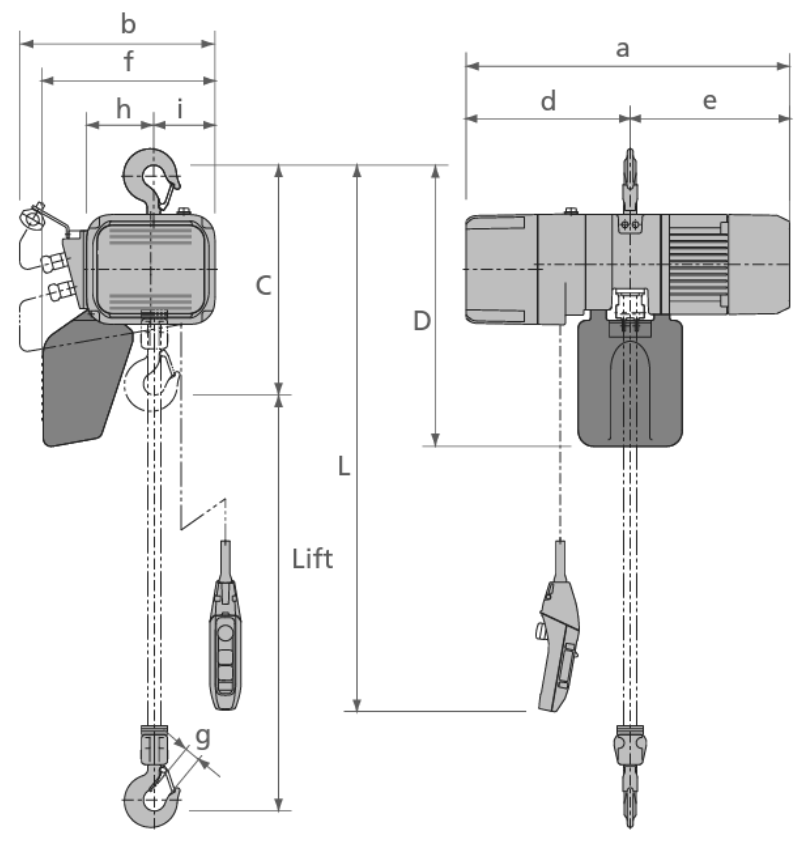

Dimensions
Specifications
| PRODUCT CODE | W.L.L. | LIFTING SPEED | MOTOR OUTPUT | DUTY CYCLE (FC%) | LOAD CHAIN | FALLS OF CHAIN | HEADROOM | NET WEIGHT |
|---|---|---|---|---|---|---|---|---|
| KPER2-003IS | 0.25t | 10.8-1.8m/min | 0.56kW | 40/20 | 4.3mm x 12.0mm | 1 | 350mm | 27kg |
| KPER2-005IL | 0.50t | 4.5-0.8m/min | 0.56kW | 40/20 | 6.0mm x 16.7mm | 1 | 370mm | 32kg |
| KPER2-005IS | 0.50t | 8.5-1.4m/min | 0.90kW | 40/20 | 6.0mm x 16.7mm | 1 | 370mm | 36kg |
| KPER2-010IL | 1.00t | 4.2-0.7m/min | 0.90kW | 40/20 | 7.7mm x 21.4mm | 1 | 430mm | 45kg |
| KPER2-010IS | 1.00t | 8.2-1.4m/min | 1.80kW | 40/20 | 7.7mm x 21.4mm | 1 | 430mm | 52kg |
| KPER2-015IS | 1.50t | 5.3-0.9m/min | 1.80kW | 40/20 | 10.2mm x 28.4mm | 1 | 510mm | 72kg |
| KPER2-020IL | 2.00t | 4.3-0.7m/min | 1.80kW | 40/20 | 10.2mm x 28.4mm | 1 | 575mm | 73kg |
| KPER2-020IS | 2.00t | 8.2-1.4m/min | 3.50kW | 40/20 | 10.2mm x 28.4mm | 1 | 590mm | 89kg |
| KPER2-025IS | 2.50t | 6.6-1.1m/min | 3.50kW | 40/20 | 11.2mm x 31.2mm | 1 | 625mm | 100kg |
| KPER2-030IS | 3.00t | 5.2-0.9m/min | 3.50kW | 40/20 | 10.2mm x 28.4mm | 2 | 785mm | 105kg |
| KPER2-050IS | 5.00t | 3.3-0.6m/min | 3.50kW | 40/20 | 11.2mm x 31.2mm | 2 | 850mm | 128kg |
