Wireless Load Shackle
Wireless Load Shackle
- Brand: Wirop
- Capacity: 8.0t to 200.0t

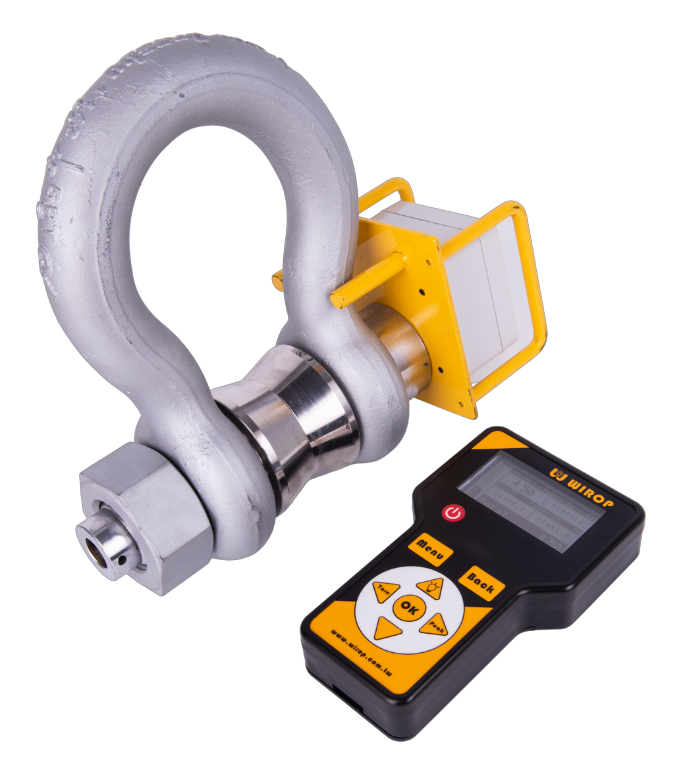

Ideal for use in limited headroom or heavy duty lifting, this wireless load shackle is perfect for overhead weight measurement, heavy lift measurement and cable tension monitoring. Constructed from a Crosby or Green Pin shackle, coupled with a high strength stainless steel load pin and featuring hard-anodised aluminium electronics enclosure, this wireless load shackle provides reliable wireless error-free data transmission.
Features
Industries
Documents
Features
- Safety factor of 5:1
- Long battery life up to 950 hours
- Wireless 2.4Ghz data transmission
- Constructed from high strength steel
Industries
- Construction
- Marine
- Mining/Oil/Gas
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | ACCURACY | NET WEIGHT |
|---|---|---|---|
| WRWPL-008S | 8.0t | 1.0% FS | 3.17kg |
| WRWPL-012S | 12.0t | 1.0% FS | 8.00kg |
| WRWPL-025S | 25.0t | 1.0% FS | 17.90kg |
| WRWPL-055S | 55.0t | 1.0% FS | 25.30kg |
| WRWPL-085S | 85.0t | 1.0% FS | 70.96kg |
| WRWPL-100S | 100.0t | 1.0% FS | 85.10kg |
| WRWPL-200S | 200.0t | 1.0% FS | 253.60kg |
Dimensions
| PRODUCT CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| WRWPL-008S | 28mm | 221mm | 119mm | 429mm | 25.4mm |
| WRWPL-012S | 35mm | 230mm | 146mm | 52mm | 31.8mm |
| WRWPL-025S | 50mm | 295mm | 225mm | 73mm | 44.5mm |
| WRWPL-055S | 70mm | 380mm | 327mm | 105mm | 66.5mm |
| WRWPL-085S | 83mm | 439mm | 365mm | 127mm | 76.0mm |
| WRWPL-100S | 95mm | 489mm | 416mm | 150mm | 89.0mm |
| WRWPL-200S | 140mm | 587mm | 530mm | 180mm | 120.0mm |
