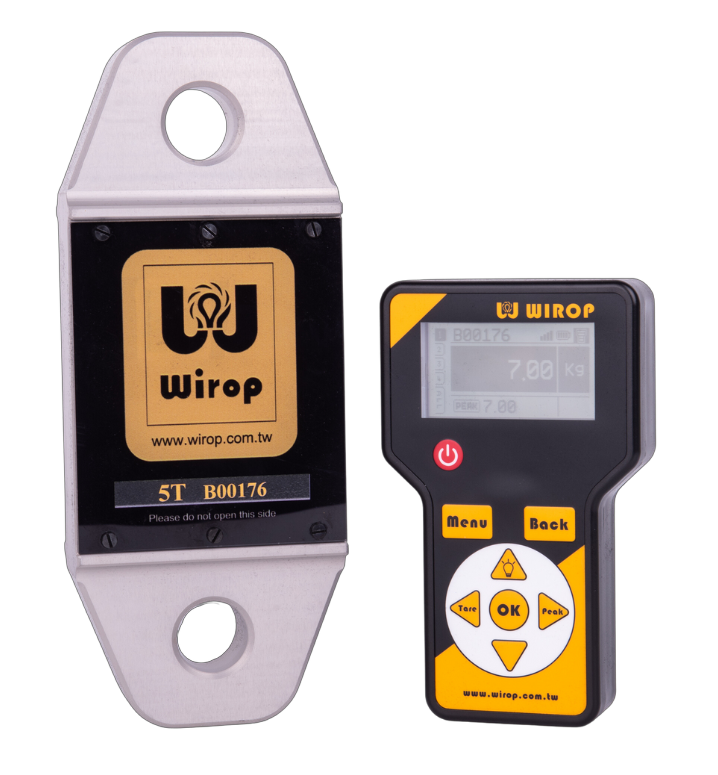

Wireless Load Link
- Brand: Wirop
- Capacity: 2.0t to 300.0t
Offering the accuracy and reliability of standard load link load cells, the wireless load link offers wireless transmission of load value, and is ideal for under hook crane weighing, load tests and cable tensioning applications. Constructed from aerospace grade aluminium alloy and providing high corrosion resistance in the most rugged environments, this wireless load link provides wireless data transmission for ranges of 150m to 250m, high grade noise filter technology and low voltage operation.
Features
Industries
Documents
Features
- Low voltage operation
- Long battery life up to 280 hours
- Constructed from aerospace grade aluminium alloy
Industries
- Construction
- Marine
- Mining/Oil/Gas
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | CAPACITY | ACCURACY | NET WEIGHT |
---|---|---|---|
WRWLL-002 | 2.0t | 0.3% FS | 1.7kg |
WRWLL-005 | 5.0t | 0.3% FS | 2.9kg |
WRWLL-012 | 12.0t | 0.3% FS | 4.7kg |
WRWLL-025 | 25.0t | 0.3% FS | 8.3kg |
WRWLL-035 | 35.0t | 0.3% FS | 9.7kg |
WRWLL-055 | 55.0t | 0.3% FS | 14.7kg |
WRWLL-085 | 85.0t | 0.3% FS | 23.4kg |
WRWLL-100 | 100.0t | 0.3% FS | 42.0kg |
WRWLL-150 | 150.0t | 0.3% FS | 55.7kg |
WRWLL-200 | 200.0t | 0.3% FS | 87.0kg |
WRWLL-300 | 300.0t | 0.3% FS | 147.7kg |

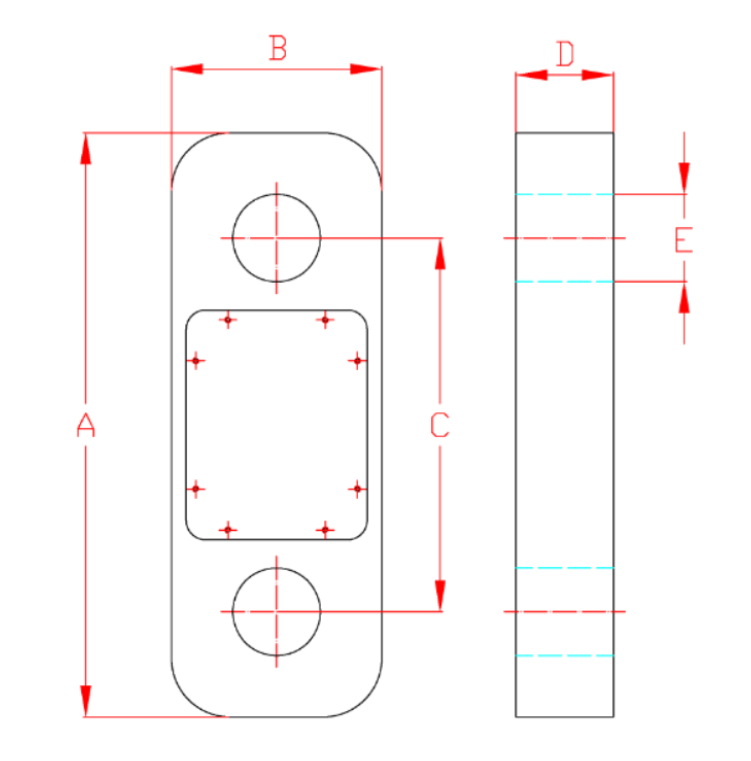

Dimensions
PRODUCT CODE | A | B | C | D | E |
---|---|---|---|---|---|
WRWLL-002 | 202mm | 104mm | 149mm | 48mm | 17mm |
WRWLL-005 | 275mm | 104mm | 196mm | 48mm | 27mm |
WRWLL-012 | 303mm | 115mm | 204mm | 48mm | 38mm |
WRWLL-025 | 365mm | 132mm | 234mm | 63mm | 53mm |
WRWLL-035 | 410mm | 134mm | 248mm | 69mm | 60mm |
WRWLL-055 | 465mm | 166mm | 273mm | 79mm | 72mm |
WRWLL-085 | 550mm | 223mm | 296mm | 79mm | 85mm |
WRWLL-100 | 615mm | 213mm | 335mm | 112mm | 99mm |
WRWLL-150 | 690mm | 242mm | 370mm | 124mm | 112mm |
WRWLL-200 | 710mm | 300mm | 350mm | 155mm | 132mm |
WRWLL-300 | 860mm | 312mm | 430mm | 189mm | 153mm |
