Trolley Wheels
- Brand: OzBlok
- Capacity: 0.5t to 10t

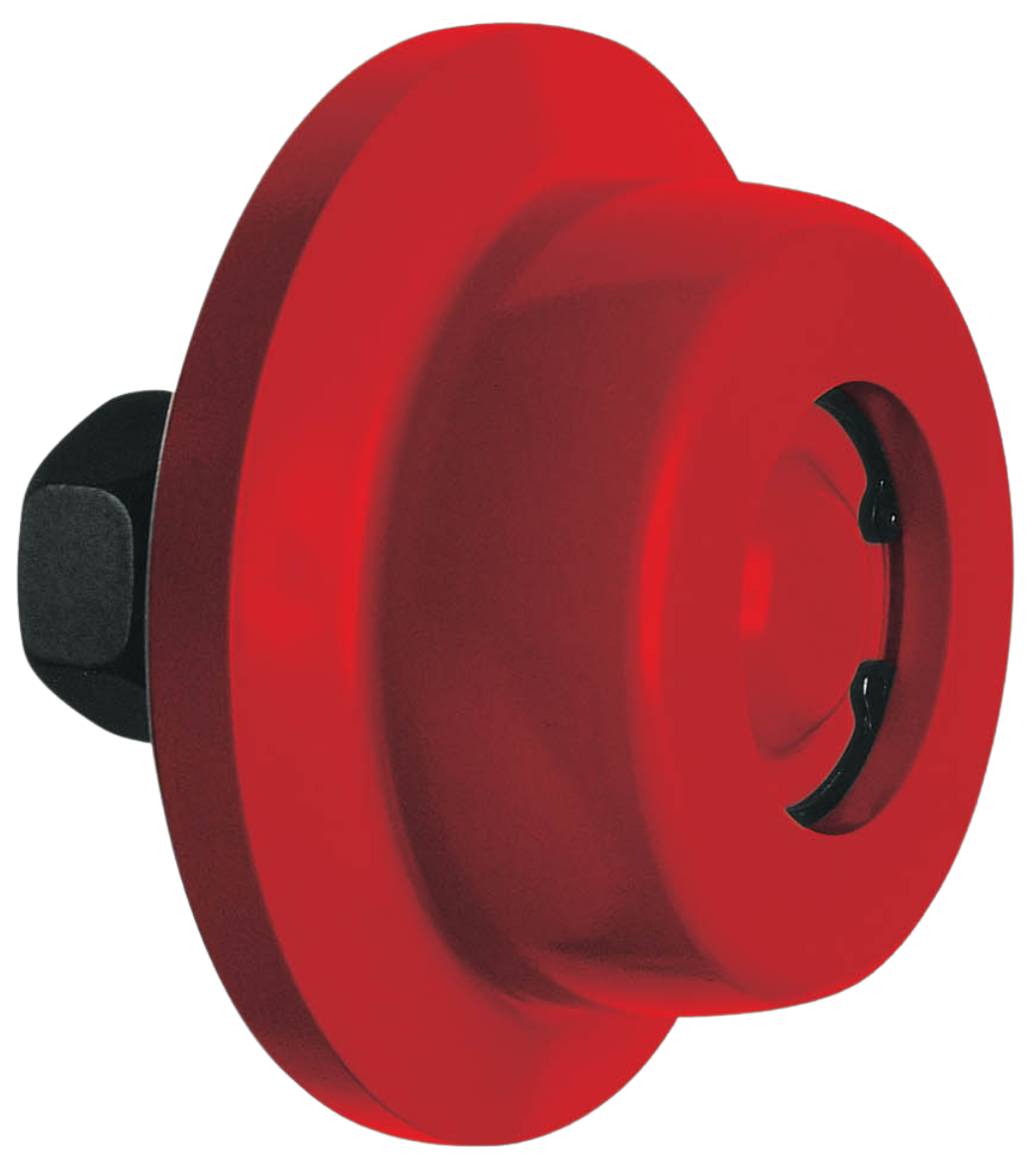

Strong and reliable, these machine threaded single flange trolley wheels are perfect for smooth operation on R.S.J and universal beams, and have been designed for longevity - even in the harshest environments.
- Australian Standard: AS/NZS1418.2
Features
Industries
Documents
Features
- Machine thread
- All steel construction
- Available in cast iron or fully forged
- Complete with a ball bearing, axle, nut, dust cover and circlip
- Capacities range from 500kg to 10 tonnes, rated over four wheels
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Hire
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Ports
Documents
Specifications
Dimensions

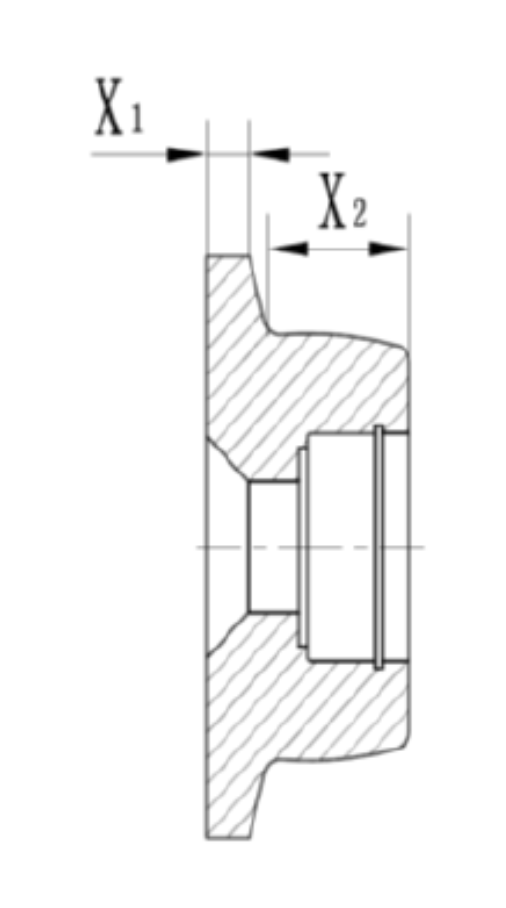

Specifications
PRODUCT CODE | TROLLEY CAPACITY ON 4 WHEELS | WHEEL Ø | X | Y | BEARING |
---|---|---|---|---|---|
TWOZ005 | 0.5t | 58mm | 7.7mm | 27mm | 203mm |
TWOZ010 | 1.0t | 75mm | 8.3mm | 28mm | 203mm |
TWOZ020 | 2.0t | 90mm | 8.2mm | 32mm | 204mm |
TWOZ030 | 3.0t | 110mm | 9.7mm | 36mm | 305mm |
TWOZ050 | 5.0t | 120mm | 11.1mm | 38mm | 2 x 206mm |
TWOZ100 | 10.0t | 150mm | 12.7mm | 45mm | 2 x 210mm |

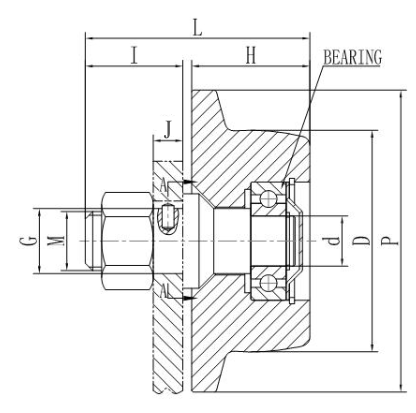

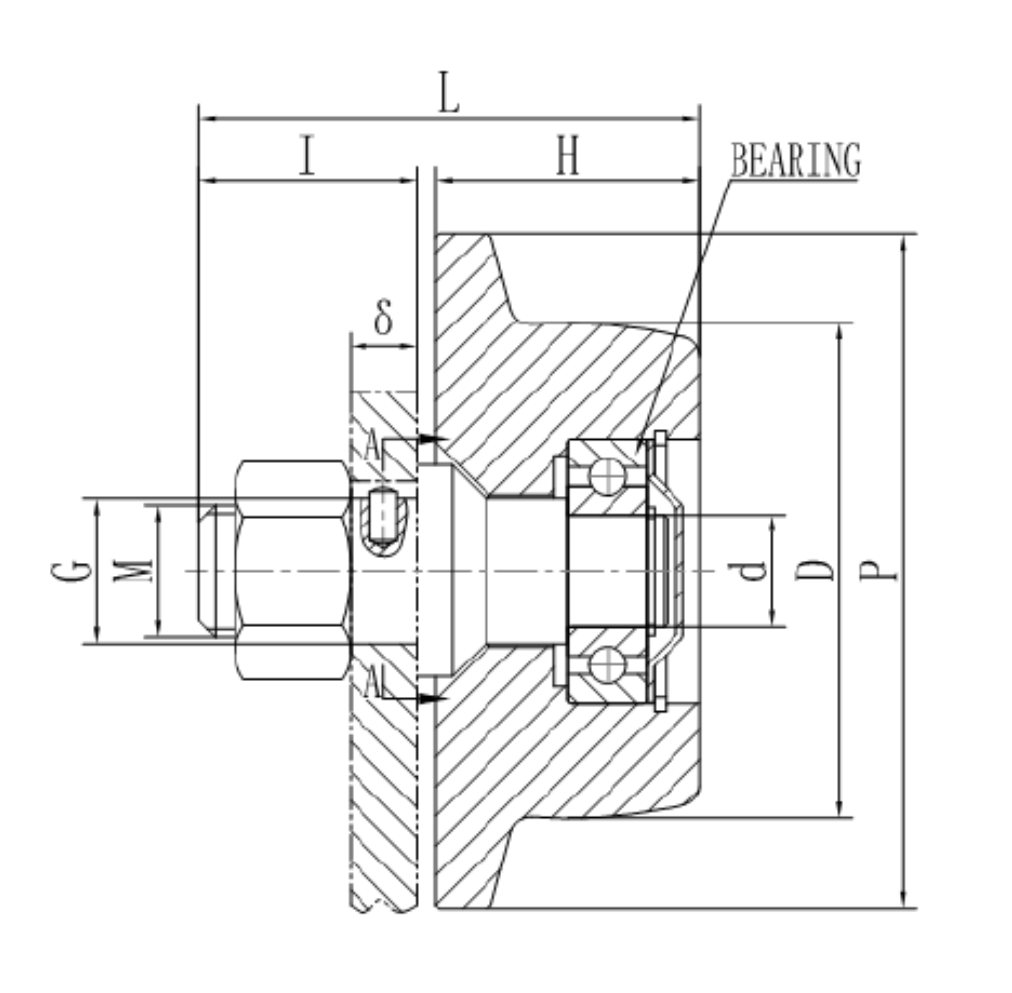

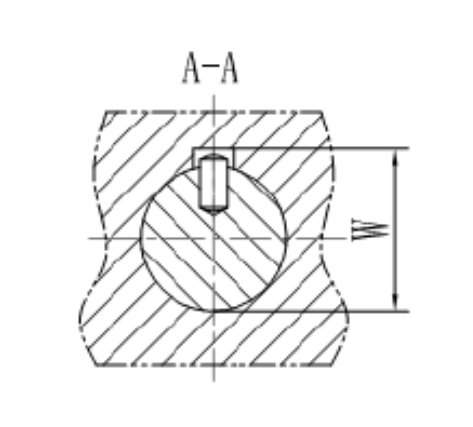

Dimensions
PRODUCT CODE | G Ø | M | d Ø | P Ø | W | I | L | H | Z |
---|---|---|---|---|---|---|---|---|---|
TWOZ005 | 22mm | M20 | 17mm | 82mm | 23.6mm | 31mm | 72mm | 38mm | 8mm |
TWOZ010 | 22mm | M20 | 17mm | 102mm | 23.6mm | 33mm | 76mm | 40mm | 10mm |
TWOZ020 | 26mm | M24 | 20mm | 120mm | 27.6mm | 39mm | 87mm | 45mm | 12mm |
TWOZ030 | 32mm | M30 | 25mm | 141mm | 33.6mm | 45mm | 98mm | 50mm | 14mm |
TWOZ050 | 38mm | M36 | 30mm | 156mm | 39.6mm | 56mm | 113mm | 54mm | 20mm |
TWOZ100 | 57mm | M48 | 50mm | 189mm | 58.6mm | 77mm | 143mm | 63mm | 25mm |
