Modular Spreader Beams
Modular Spreader Beams
- Brand: Maxirig
- Capacity: 6.0t - 110.0t

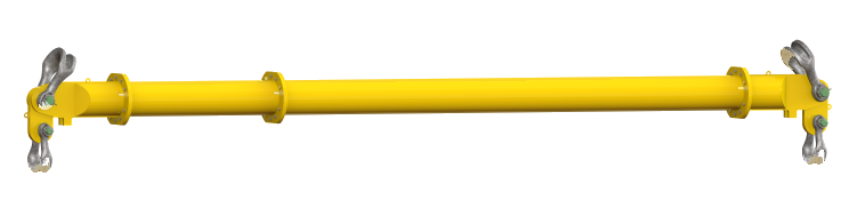

Lightweight and versatile, the MOD range of modular spreader beams provide the ideal solution for most lifting requirements with capacities from 2t and spans up to 100m. The modular configuration and interchangeable components enable the spreader beams to be reused over many lifts for varied lifting applications. Each MOD modular spreader beam kits include a pair of end units and a pair of drop links, with interchangeable struts that can be bolted in between the end units to either lengthen or shorten the beam to suit the requirements of the lift.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Modular configuration
- Adjustable length beams
- Interchangeable components
- Powder-coated finish for corrosion resistance
Industries
- Construction
- Logistics
- Manufacturing
- Warehousing
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | TOP LIFTING LUG | LOWER LOAD LUG |
|---|---|---|---|
| MRMOD6 | 6.0t | 4.7t Grade ‘S’ safety bow shackle | 3.2t Grade ‘S’ safety bow shackle |
| MRMOD12 | 12.0t | 8.5t Grade ‘S’ safety bow shackle | 6.5t Grade ‘S’ safety bow shackle |
| MRMOD24 | 24.0t | 17.0t Grade ‘S’ safety bow shackle | 12.0t Grade ‘S’ safety bow shackle |
| MRMOD34 | 34.0t | 25.0t Grade ‘S’ safety bow shackle | 17.0t Grade ‘S’ safety bow shackle |
| MRMOD50 | 50.0t | 35.0t Grade ‘S’ safety bow shackle | 25.0t Grade ‘S’ safety bow shackle |
| MRMOD70 | 70.0t | 55.0t Grade ‘S’ safety bow shackle | 35.0t Grade ‘S’ safety bow shackle |
| MRMOD70H | 100.0t | 85.0t Grade ‘S’ safety bow shackle | 55.0t Grade ‘S’ safety bow shackle |
| MRMOD110 | 110.0t | 85.0t Grade ‘S’ safety bow shackle | 55.0t Grade ‘S’ safety bow shackle |
Dimensions
| PRODUCT CODE | SPAN | ADJUSTMENT INCREMENT |
|---|---|---|
| MRMOD6 | 0.4m – 4.5m | 100mm |
| MRMOD12 | 0.5m – 6.5m | 250mm |
| MRMOD24 | 1.0m – 8.0m | 500mm |
| MRMOD34 | 1.0m – 10.0m | 500mm |
| MRMOD50 | 1.0m – 13.0m | 500mm |
| MRMOD70 | 1.0m – 14.0m | 500mm |
| MRMOD70H | 1.0m – 14.0m | 500mm |
| MTMOD110 | 2.0m – 18.0m | 500mm |
