1000 Ratchet Puller
1000 Ratchet Puller
- Brand: Nagaki
- Capacity: 1.0t

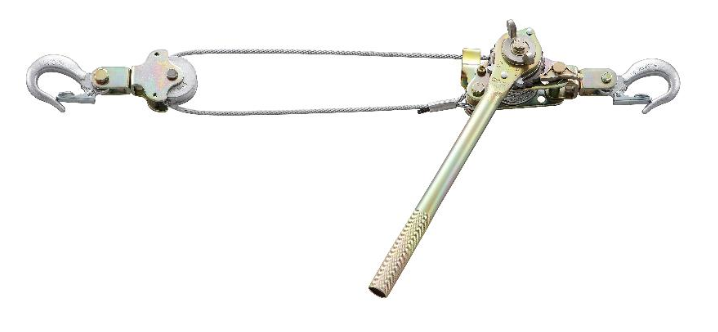

Versatile and durable, the 1000 Ratchet Puller features a large powerful ratchet lever that provides 10kN of pulling force, minimising time and effort required by the operator. With a heavy duty ratchet mechanism, full 360 degree rotating handle and forward/reverse load holding mechanism, this 1000 Ratchet Puller combines ease of use with Japanese quality. Optional safety hook available.
Features
Industries
Documents
Features
- Ratchet mechanism
- 360 degrees rotating handle
- Lightweight aluminium housing
- Forward/reverse load holding handle
Industries
- Energy
- Lifts/Elevators
- Railways
- Telecommunications
- Utilities
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | WIRE Ø | OVERALL LENGTH | LEVER LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| NAGAKI-52002 | 1.0t (10kN) | 5mm | 410mm – 1210mm | 330mm | 3.1kg |
