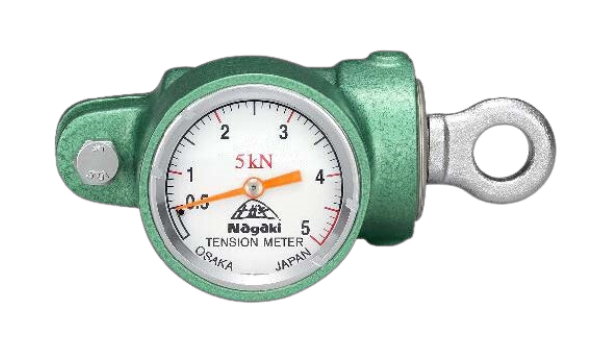

5kN Tension Meter
5kN Tension Meter
- Brand: Nagaki
- Capacity: 5.0kN
Robust and reliable, this 5kN tension meter is ideal for the quick and precise measurement of tension and loads, and can be used in conjunction with wire grips and pullers. Constructed from durable aluminium alloy, this tension meter is impact and corrosion resistant, whilst being compact enough for one handed operation. With automatic zeroing, range indicator and overload indicator, this Japanese made tension meter is suitable for a range of industrial applications.
Features
Industries
Documents
Features
- Range indicator
- Overload indicator
- Automatic zeroing function
- Large, easy to read display
Industries
- Energy
- Lifts/Elevators
- Railways
- Telecommunications
- Utilities
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | GRADUATION | NET WEIGHT |
|---|---|---|---|
| NAGAKI-50102N | 5kN | 100N | 0.8kg |
Dimensions
| PRODUCT CODE | A | B | C |
|---|---|---|---|
| NAGAKI-50102N | 150mm | 65mm | 16mm |
