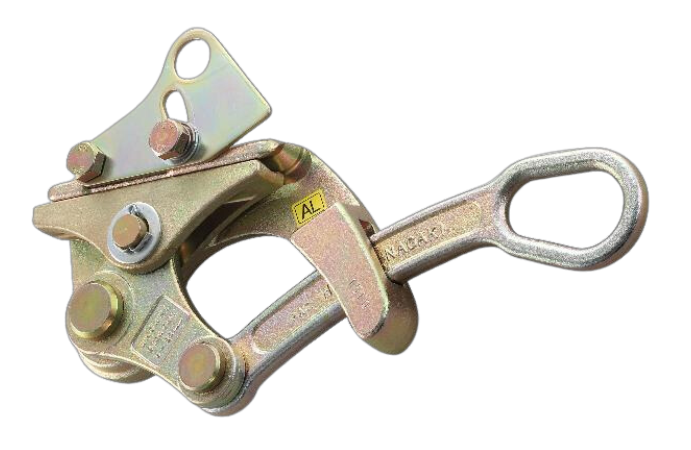

AL-3TON Aluminium Grip
AL-3TON Aluminium Grip
- Brand: Nagaki
- Capacity: 3.0t
Robust and durable, the AL-3TON Aluminium Grip is designed for pulling aluminium cables. With a safe working load limit of 30kN, and made from corrosion resistant forged alloy steel, the grip features a serrated jaw that provides a secure grip on the cable to prevent slipping, as well as a safety latch to stop the grip from accidentally opening. With a large eye, instant release system and one-handed trigger grip, the AL-3TON Aluminium Grip combines convenient and safe operation, with Japanese quality.
Features
Industries
Documents
Features
- Large eye opening
- Instant release system
- One handed trigger grip
- Corrosion resistant, forged steel construction
Industries
- Energy
- Lifts/Elevators
- Railways
- Telecommunications
- Utilities
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | CABLE Ø | EYE SIZE | NET WEIGHT |
|---|---|---|---|---|
| NAGAKI-51050 | 30kN | 8mm – 22mm | 35mm | 3.0kg |
