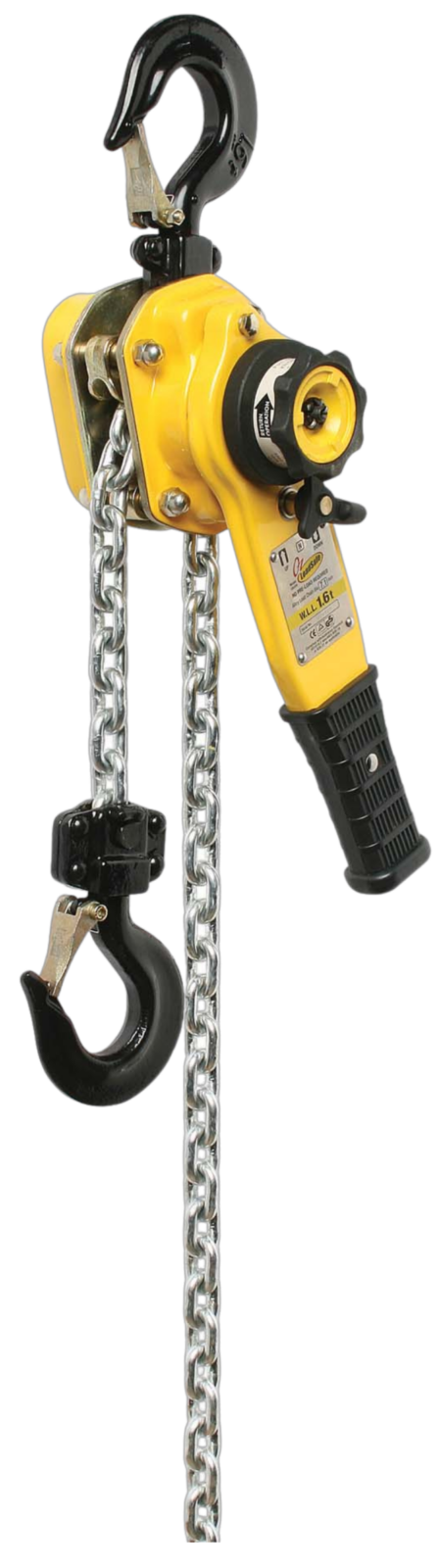

Oz Loadsafe Lever Hoist
Oz Loadsafe Lever Hoist
- Brand: OzBlok
- Capacity: 0.8t to 9.0t
This heavy-duty lever hoist offers versatile lifting with the added benefit of overload protection, ensuring smooth and seamless operation, whilst preventing equipment damage and ensuring user safety.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Five pocket lift wheel
- Integrated safety overload clutch
- Factory proof tested to 1.5x W.L.L.
- Caged roller bearings on the load sprocket
- Unique hand wheel and free wheel knob design
Industries
- Automotive
- Civil
- Construction
- Engineering
- Hire
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | HEADROOM | STANDARD LIFT | FALLS OF CHAINS | LOAD CHAIN DIAMETER | LEVER HANDLE LENGTH | NET WEIGHT | EFFORT ON LEVER TO LIFT FULL LOAD |
|---|---|---|---|---|---|---|---|---|
| LHOZLS008 | 0.8t | 325mm | 1.5m | 1 | 5.6mm | 280mm | 5.7kg | 14kg |
| LHOZLS016 | 1.6t | 380mm | 1.5m | 1 | 7.1mm | 410mm | 8.0kg | 22kg |
| LHOZLS032 | 3.0t | 480mm | 1.5m | 1 | 10mm | 410mm | 13.6kg | 32kg |
| LHOZLS063 | 6.0t | 620mm | 1.5m | 2 | 10mm | 410mm | 26.0kg | 34kg |
| LHOZLS090 | 9.0t | 700mm | 1.5m | 3 | 10mm | 410mm | 40.0kg | 36kg |

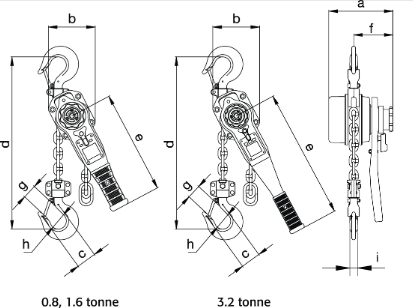

Dimensions
| PRODUCT CODE | W.L.L. | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|
| LHOZLS008 | 0.8t | 146mm | 119mm | 41.5mm | 280mm | 245mm | 96mm | 26.5mm | 35.5mm | 14mm |
| LHOZLS016 | 1.6t | 164mm | 126mm | 52mm | 335mm | 265mm | 100mm | 35.5mm | 42.5mm | 19mm |
| LHOZLS032 | 3.0t | 196mm | 159mm | 61.9mm | 395mm | 415mm | 114mm | 43mm | 50mm | 24.5mm |
| LHOZLS063 | 6.0t | 196mm | 218mm | 84.3mm | 540mm | 415mm | 114mm | 53mm | 60mm | 34mm |
| LHOZLS090 | 9.0t | 196mm | 298mm | – | 680mm | 415mm | 114mm | 64mm | 85mm | 40mm |
