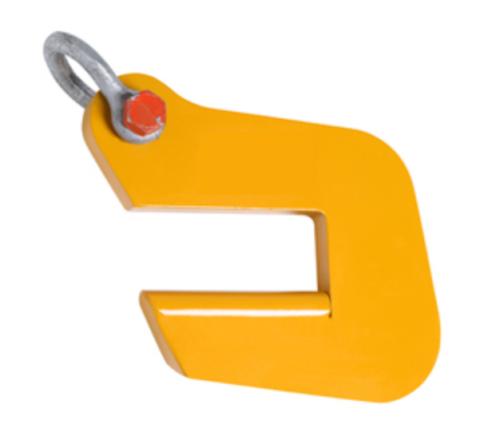

Pipe Lifting Hook
Pipe Lifting Hook
- Capacity: 4.5t to 16.0t
This pipe lifting hook is designed to safely and efficiently lift and manoeuvre steel and cast pipe sections by an overhead crane. It is to be used in pairs for the safe lifting of heavy, with a sling angle within 60° to 90° required. With forward hand protection, and designed to reduce the need for manual intervention, this pipe lifting hook ensures safer and more efficient operation, whilst increasing precision.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Forward hand protection
- Yellow, powder coated finish
- Constructed from high quality steel
- Lifting eye for crane hook attachment
Industries
- Construction
- Engineering
- Infrastructure
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| AWPLH4.5T | 4.5t (pair) | 8.3kg (per hook) |
| AWPLH7.5T | 7.5t (pair) | 12.5kg (per hook) |
| AWPLH16.0T | 16.0t (pair) | 19.5kg (per hook) |

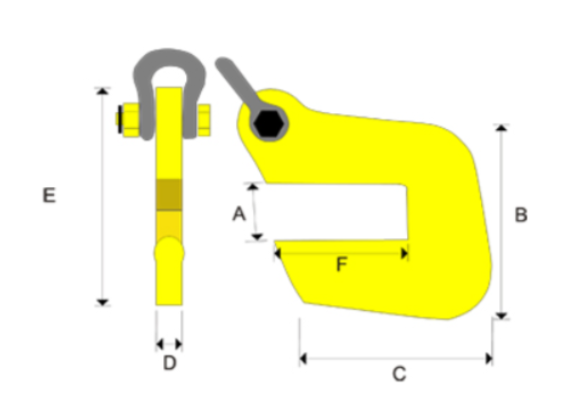

Dimensions
| PRODUCT CODE | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| AWPLH4.5T | 55mm | 208mm | 205mm | 25mm | 240mm | 140mm |
| AWPLH7.5T | 50mm | 208mm | 205mm | 36mm | 240mm | 145mm |
| AWPLH16.0T | 62mm | 208mm | 205mm | 50mm | 240mm | 145mm |
