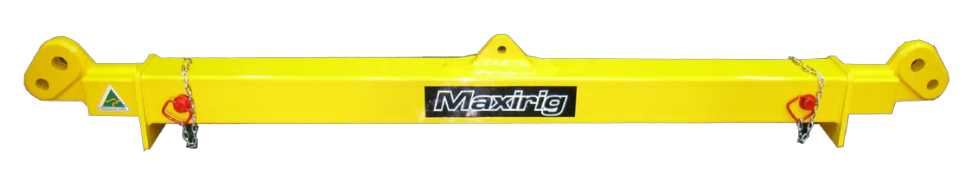

Telescopic Spreader Bar 20.0t x 6.0m
Telescopic Spreader Bar 20.0t x 6.0m
- Brand: Maxirig
- Capacity: 20.0t

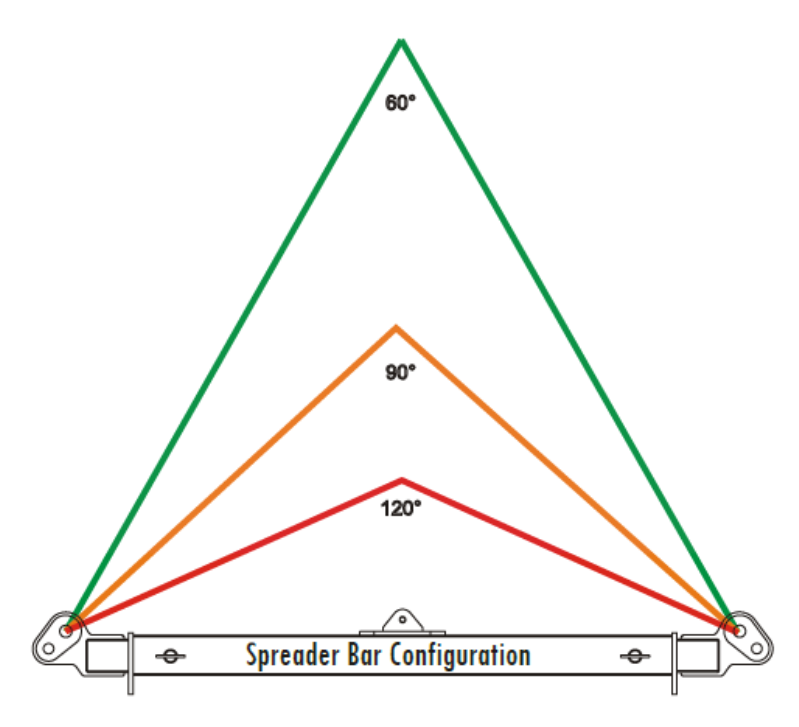

Durable and long-lasting, this versatile and reliable 20t telescopic spreader bar is ideal for a range of heavy lifting applications. With a maximum span of 6 metres, this spreader bar is designed to function in the 60°, 90° and 120° positions. It can also be used as a lifting beam, with top lifting lugs to suit 17t Grade 'S' safety bow shackle, lower load lugs to suit 12t Grade 'S' safety bow shackle and a centre lug to suit a 4.75t Grade 'S' safety bow shackle. Ideal for mobile crane operators, the beam is easy to use and can be adjusted to fit the specific needs of the lift. Supplied with proof load test certificate and MPI weld inspection report.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Yellow powder coated finish
- Top lifting lugs to suit 17t Grade ‘S’ safety bow shackle
- Lower load lugs to suit 12t Grade ‘S’ safety bow shackle
- Centre lifting lug to suit 4.75t Grade ‘S’ safety bow shackle
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | SPAN | W.L.L. 60° | W.L.L. 90° | W.L.L. 120° | CENTRE LIFT | SLING LENGTH 60° | SLING LENGTH 90° | SLING LENGTH 120° | APPROX HEADROOM 60° | APPROX HEADROOM 90° | APPROX HEADROOM 120° | TARE WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MRTSB120640 | 4.0m | 20.0t | 14.0t | 8.0t | 2.1m | 4.0m | 2.8m | 2.3m | 3.5m | 2.0m | 1.2m | 215kg |
| MRTSB120645 | 4.5m | 20.0t | 14.0t | 8.0t | 1.9m | 4.5m | 3.2m | 2.6m | 3.9m | 2.3m | 1.3m | 215kg |
| MRTSB120650 | 5.0m | 20.0t | 14.0t | 8.0t | 1.7m | 5.0m | 3.5m | 2.9m | 4.3m | 2.5m | 1.4m | 215kg |
| MRTSB120655 | 5.5m | 20.0t | 14.0t | 8.0t | 1.5m | 5.5m | 3.9m | 3.2m | 4.8m | 2.8m | 1.6m | 215kg |
| MRTSB120660 | 6.0m | 20.0t | 14.0t | 8.0t | 1.3m | 6.0m | 4.2m | 3.5m | 5.2m | 3.0m | 1.7m | 215kg |
